7. CLEANING AND MAINTENANCE
Disconnectfrommainsbeforestartingmaintenanceoperation!
DANGERTOLIFE!
We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use
alcohol or solvents!
There are no serviceable parts inside the device. Maintenance and service operations are only to be carried
out by authorized dealers.
Should you need any spare parts, please use genuine parts.
Should you have further questions, please contact your dealer.
8. TECHNICAL SPECIFICATIONS
Power supply: 230 V AC, 50 Hz ~
via supplied power unit
Inputs: 2 x XLR, balanced
Maximum output level: +22 dBu
Input impedance: 10 kohms
Outputs: 4 x XLR, balanced
Output impedance: 50 ohms (electronically balanced)
Output gain range: -50 to +12 dB
Maximum output level: +9 dBu
Sampling frequency: 65 kHz
Dynamic range D/A converter: 114 dBA
Dynamic range A/D converter: 110 dBA
Frequency response: 20 Hz to 30 kHz
Distortion: 0.005 %
USB port: type B
External control: 12 V via screw terminals
Filter types: Bessel, Butterworth or Linkwitz-Riley
Slopes: 6, 12, 18 or 24 dB/octave
Crossover frequency: 20-20000 Hz
Delay: 0~7 msec
in 15 micro second steps = 5 millimeters
Dimensions (WxHxD): 482 x 44 x 128 mm
Weight: 3 kg

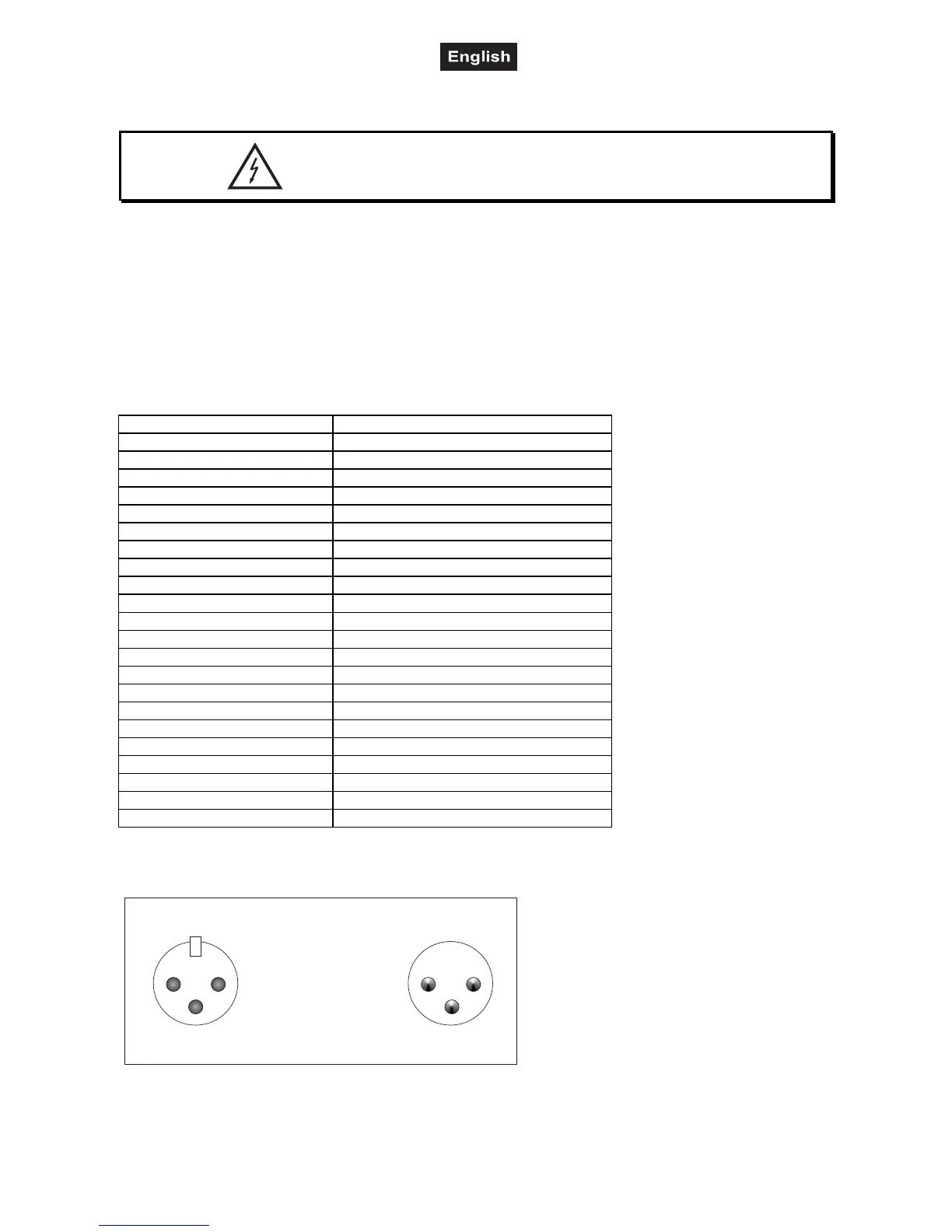

8.1 Occupation XLR connection
Please note: Every information is subject to change without prior notice. 18.08.2010 ©
2
1
3
1
2
3
BalancedusewithXLRconnectors
1=Ground/Shield
2=Hot(+)
3=Cold(-)
Forunbalancedusepin1andpin3havetobebridged
Input Output
