00008423.DOC VERSION 3.3
23/49
Please consider that unauthorized modifications on the speaker-system are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, hearing loss etc.
Please note: This user manual describes the P-1000 as a reference. Illustrations and features of the other
models are comparable.
DESCRIPTION OF THE DEVICE
Features
Powerful amplifier
Enormous power with highest brilliance • 2 gain-controls on the frontpanel • All operation-modes controllable
via LEDs • LED-intensity adjustable via brightness control on the rear panel • Signal-inputs via XLR-female
or 1/4"-jack-socket • Speaker connection via lockable Speaker-plugs or Banana/screw combination • Ground
Lift-switch against humming • Bridged-switch for bridging • Many protection-circuits for optimized equipment-
protection • Very rugged housing • 19" dimensions • High power/weight-relation

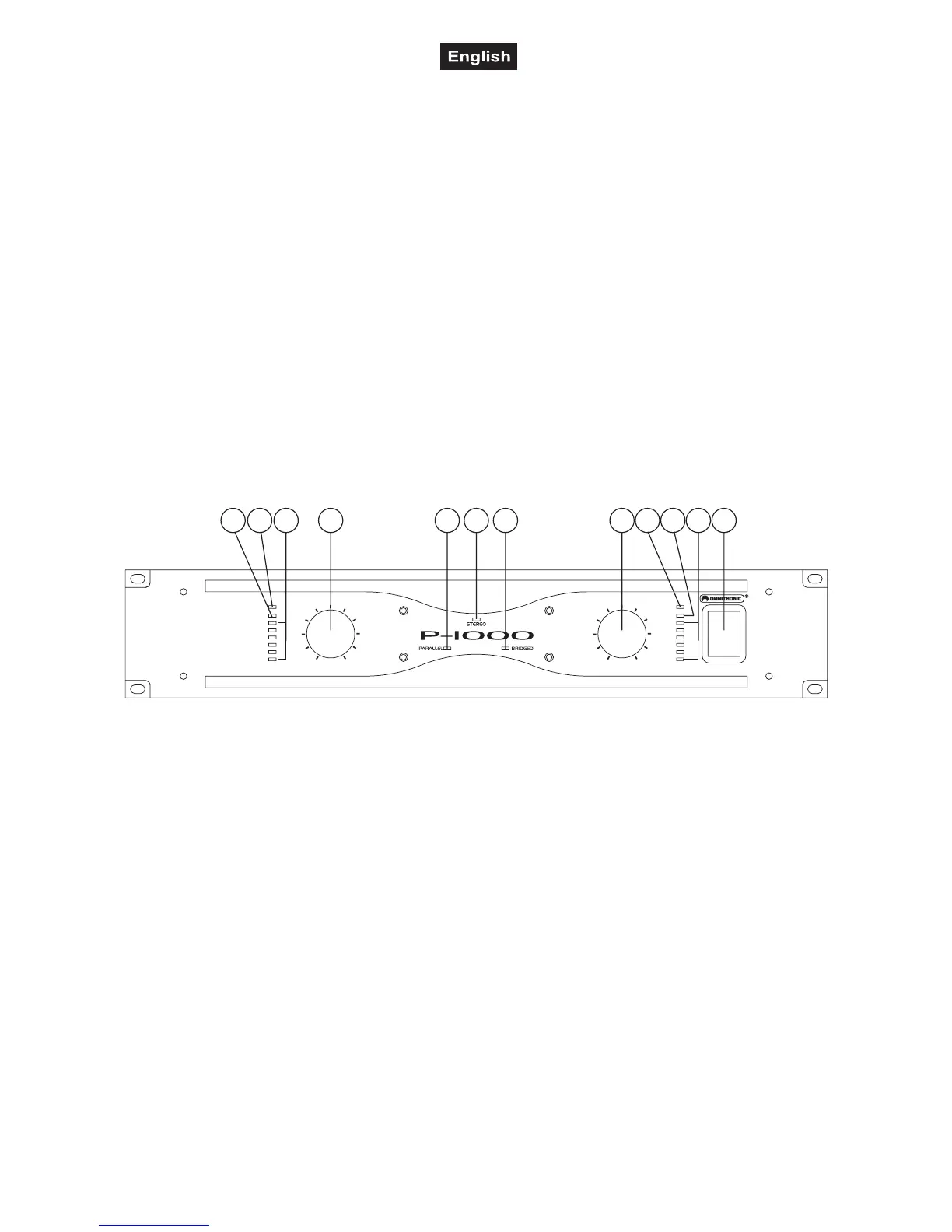

Frontpanel
0 010 10
CH-1 CH-1
POWER
PROTECT
+35 CLIP
+30
+15
+5
0dB
-10
-20
PROTECT
+35 CLIP
+30
+15
+5
0dB
-10
-20
12 34 5 62 7867 8
(1) POWER SWITCH
Press this button to start operation.
(2) GAIN-CONTROLS
Adjust the desired volume here.
(3) STEREO-LED
This LED shines in Stereo-mode.
(4) PARALLEL-LED
This LED shines in Parallel-mode.
(5) BRIDGED-LED
This LED shines in bridged mode.
(6) LEVEL-LEDS
The LEDs are illuminated in accordance with the adjusted signal level.
(7) CLIP-LED
This LED flashes when the output signal starts distorting.
(8) PROTECT-LED
This LED is illuminated after switching the device on as long as the speakers are not connected with the
amplifier.
If this LED is illuminated during the operation, one of the protection circuits is active. Please take the
amplifier out of operation and check it.
