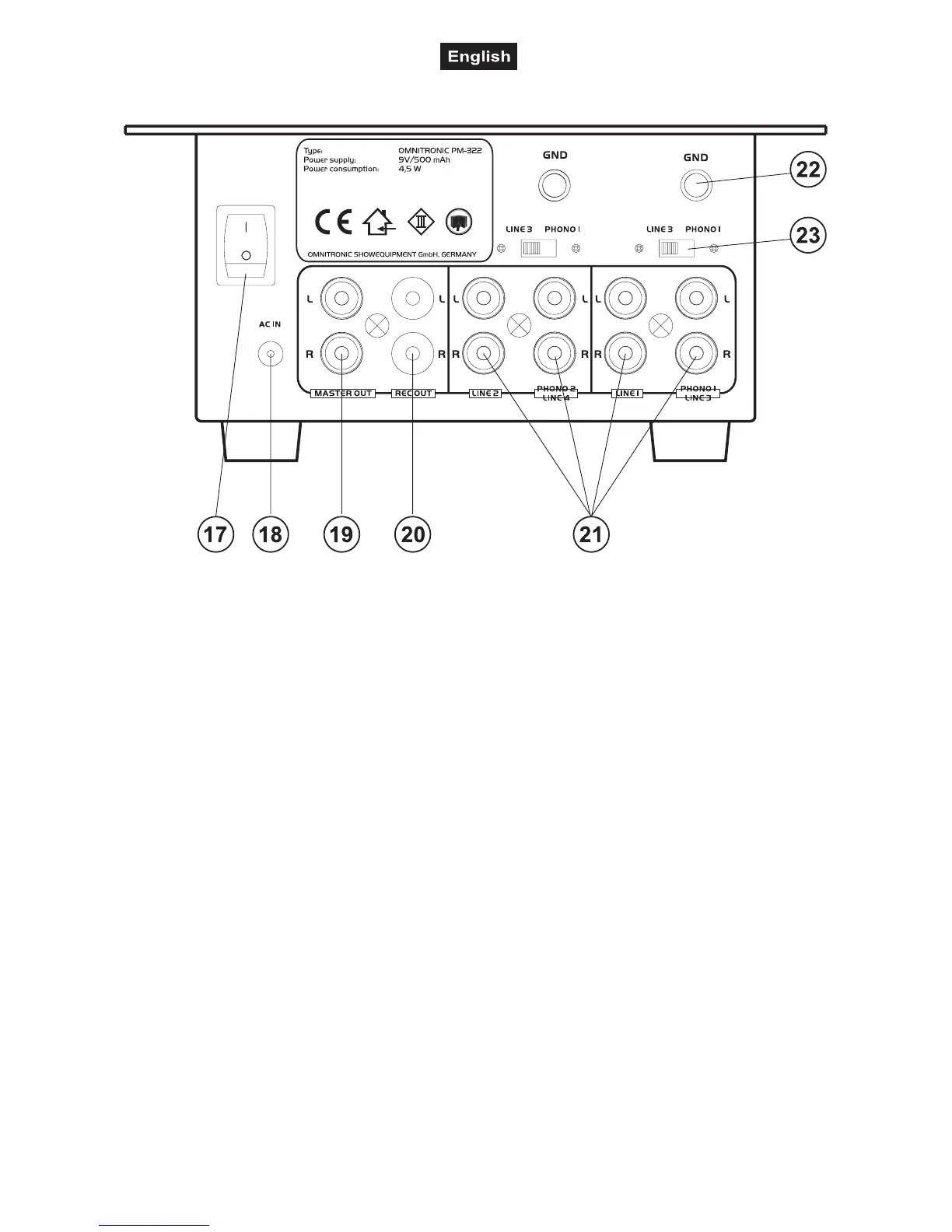

5.3 Rear panel
(17) POWER SWITCH
Press this button to start operation.
(18) AC IN SOCKET
Used to plug the power unit in.
(19) MASTER OUT
Output sockets for connecting your power amplifier.
(20) REC OUT
To connect your recording unit.
(21) LINE / PHONO INPUT SOCKETS
Input socket for CH-1 and CH-2. Connect your turntable with the PHONO input sockets. CD players or
Tape Decks should be connected with the LINE input sockets. Line level musical instruments with stereo
outputs such as Rhythm Machines or Samplers should also be connected with the LINE input sockets.
(22) GND (Ground terminal)
Connect the ground lead of the turntable with this terminal. This helps to reduce humming and pop
noises.
(23) PHONO / LINE SELECTOR
Used to switch the input sockets of CH-1 and CH-2 to Phono or Line.
6. OPERATION
Switch the device on via the power switch.
As soon as the audio signals are present the signal level is displayed. You can adjust the level of the input
signals via the Gain control.
