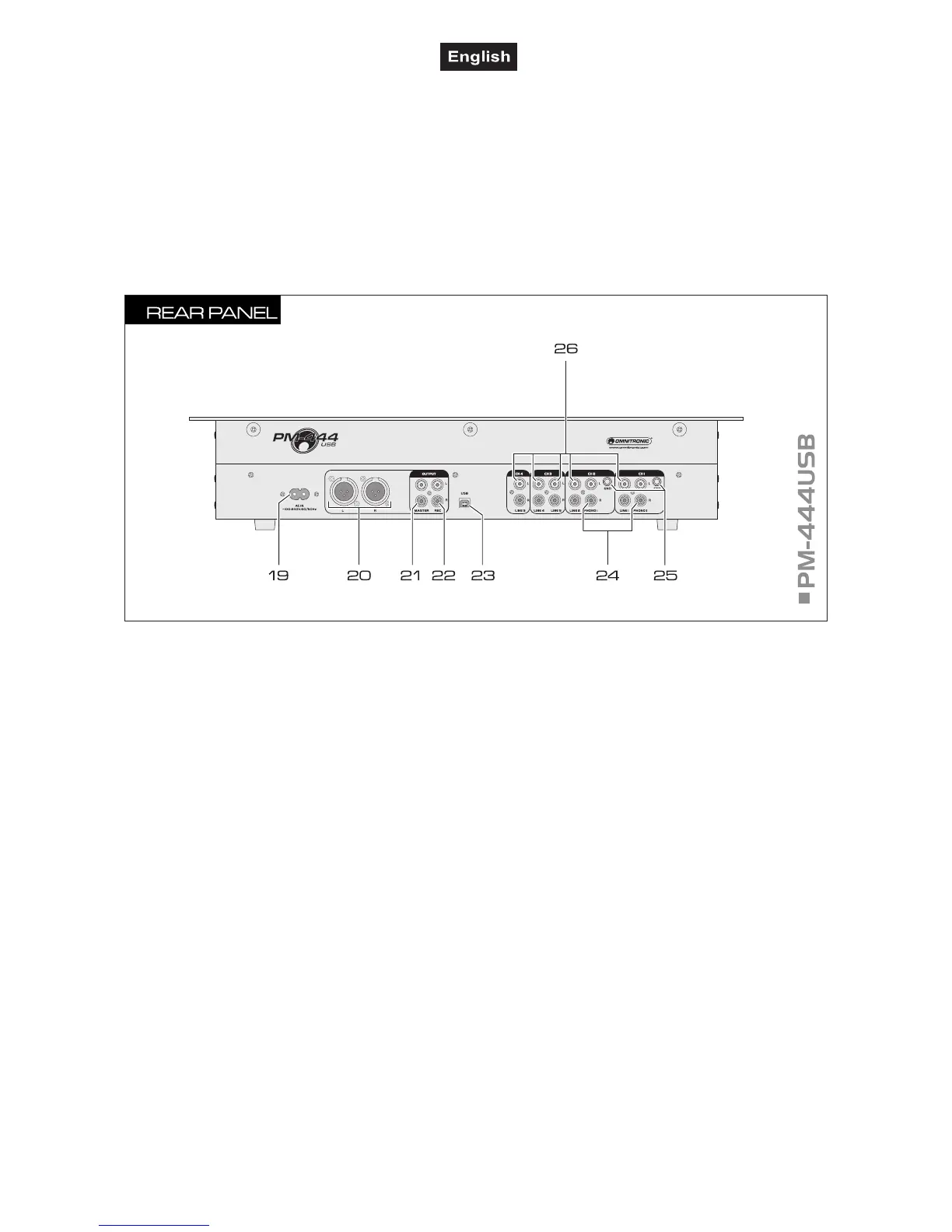

Power input
Plug in the supplied power cable here.
21 Master output, bal.
Stereo master output (XLR, bal.) for connecting
an amplifier.
22 Master output, unbal.
Stereo master output (RCA, unbal.) for
connecting an amplifier.
23 Output REC
Stereo output (RCA) for connecting an analog
recording unit. The recording level is
independent of the position of the master
control.
24 USB ports
USB port (full-duplex, type B), for connecting a
computer.
• Both ports can be used simultaneously as an
input for digital audio signals for playback via
channel 4 and as output of the digital master
signal.
• The digital master level is independent of the
master control.
• The digital master signal is constantly available,
i.e. it is independent of the input selector.
Ground terminals
Ground clamping screws for turntables
connected to channel 1 and channel 2.
26 Inputs PHONO
Stereo inputs PHONO (RCA) for channel 1 and
channel 2 for connecting turntables with
magnetic system.
27 Inputs LINE
Stereo inputs LINE (RCA) for channel 1 to 4 for
connecting units with line level outputs (e.g. CD
players).
Buttons CUE
Buttons for monitoring the input channels 1 to 4
ahead of the respective channel fader via
headphones connected to the jack PHONES.
With the button pressed, the red LEDs light to
immediately indicate that a channel is
monitored.
Power indicator
L
ights up when the unit is powered on.
17 Gain controls
For adjusting the input amplification for channels
1 to 4.
18 Input selectors
For selecting the input source for channels 1 to 4.
