Power ON
Press the Mode Key repeatedly until the PRGM
indicator is lit.
Use the Increment or Decrement Key to set the
parameter number.
Press the Enter Key.
The data of the selected parameter number will be
displayed.
Use the Increment or Decrement Key to set the
data. At that time the display will flash.
Press the Enter Key so that the set value will be
entered and the data display will be lit. (see note 1)
The parameter number will be displayed.
In approx. 1s

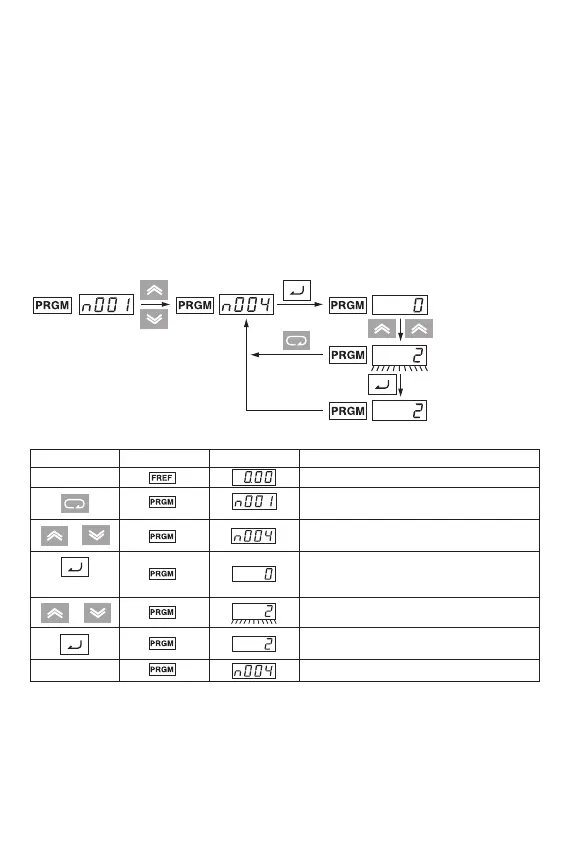

Key sequence Indicator Display example Explanation
Multi-function Inputs
Value Function
1 Forward/Stop
2 Reverse/Stop
3 External fault (NO)
4 External fault (NC)
5 Fault reset
6 Multi-step speed reference 1
7 Multi-step speed reference 2
8 Multi-step speed reference 3
9 Multi-step speed reference 4
10 Inching command
12 External base block (NO)
13 External base block (NC)
17 Local/Remote selection
Multi-function Outputs
Value Function
0 Fault output
1 During RUN
2 Frequency agree
6 Overtorque being monitored (NO)
12 RUN mode
13 Inverter ready
15 Undervoltage in progress
Analogue Output Functions
Value Function
0 Multi-step speed reference 3
1 Multi-step speed reference 4
2 Inching command
3 External base block (NO)
Note: Refer to Section 5-10/11 for full set value listings
Note 1: To cancel the set value, press the Mode Key instead. The parameter number will be displayed.
Note 2: There are parameteres that cannot be changed while the Inverter is in operation. Refer to the list of
parameters. When attempting to change such parameters, the data display will not change by pressing
the Increment or Decrement Key.
