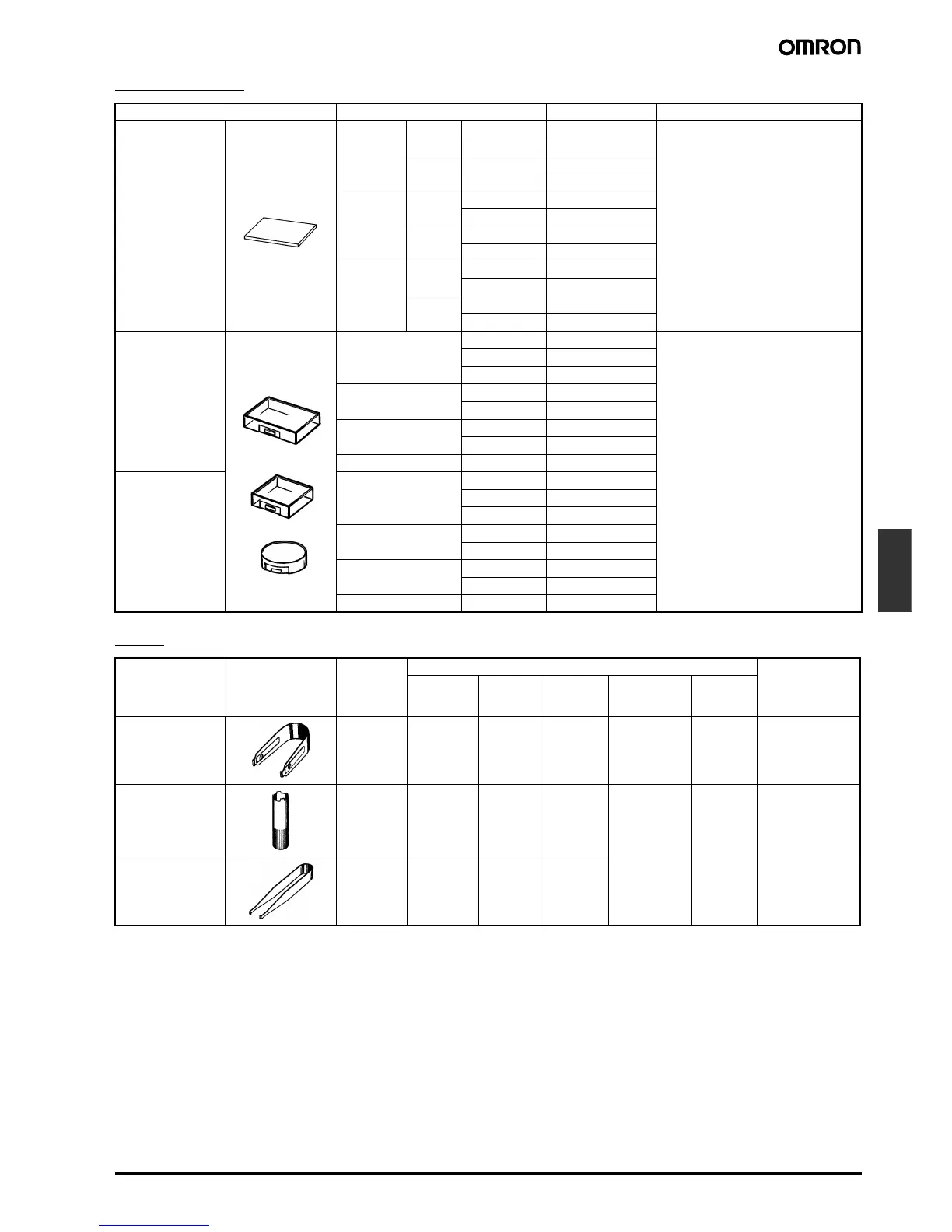

Pushbutton Switch A16 G-17
Pushbutton
Switches
Replacements
Tools
Name Appearance Classification Model Remarks
Legend Plates Rectangular IP40 Milky A16ZJ-5204 A single Legend Plate (transparent) is
included with a standard model.
The milky Legend Plate can be used
with the IP40 and oil-resistant IP65.
Transparent A16ZJ-5202
Oil-resis-
tant IP65
Milky A16ZJ-5204
Transparent A16ZJ-5203
Square IP40 Milky A16ZA-5204
Transparent A16ZA-5202
Oil-resis-
tant IP65
Milky A16ZA-5204
Transparent A16ZA-5203
Round IP40 Milky A16ZT-5204
Transparent A16ZT-5202
Oil-resis-
tant IP65
Milky A16ZT-5204
Transparent A16ZT-5203
Color Caps
(for IP40)
LED indicator/incan-
descent lamp/non-
lighted
White A16Z@-5001W Insert one of the following letters into
the box (@).
J: Rectangular
A: Square
T: Round
The Color Cap is usually supplied. Re-
place the Cap if the color is to be
changed.
When using an LED indicator, be sure
to use a Color Cap that matches the lu-
minescent color of the LED.
The materials used for the IP40 and
oil-resistant IP65 are different so be
sure to use a Color Cap that matches
the specifications of the Switch.
Red A16Z@-5001R
Yellow A16Z@-5001Y
LED indicator Pure yellow A16Z@-5001PY
Green A16Z@-5001GY
Incandescent lamp/
non-lighted
Blue A16Z@-5001A
Green A16Z@-5001G
Non-lighted Black A16Z@-5011B
Color Caps
(for oil-resistant
IP65)
LED indicator/incan-
descent lamp/non-
lighted
White A16Z@-5101W
Red A16Z@-5101R
Yellow A16Z@-5101Y
LED indicator Pure yellow A16Z@-5101PY
Green A16Z@-5101GY
Incandescent lamp/
non-lighted
Blue A16Z@-5101A
Green A16Z@-5101G
Non-lighted Black A16Z@-5111B
Rectangular
Square
Round
Name Appearance Model Applicable types Remarks
Pushbutton
Switch
Knob-type
Selector
Switch
Key-type
Selector
Switch
Emergency
Stop Switch
Indicator
Extractor A3PJ-5080 Yes No No No Yes Convenient for ex-
tracting Pushbut-
ton Switches
Screw Fitting A16Z-3004 Yes Yes Yes Yes Yes Convenient for
ganged installa-
tion.
Tighten to a torque
of 0.39 N m min.
Extractor A16Z-5080 Yes Yes Yes Yes Yes Convenient for ex-
tracting the Switch
and Lamps.
