Pushbutton Switch A16 G-31
Pushbutton
Switches

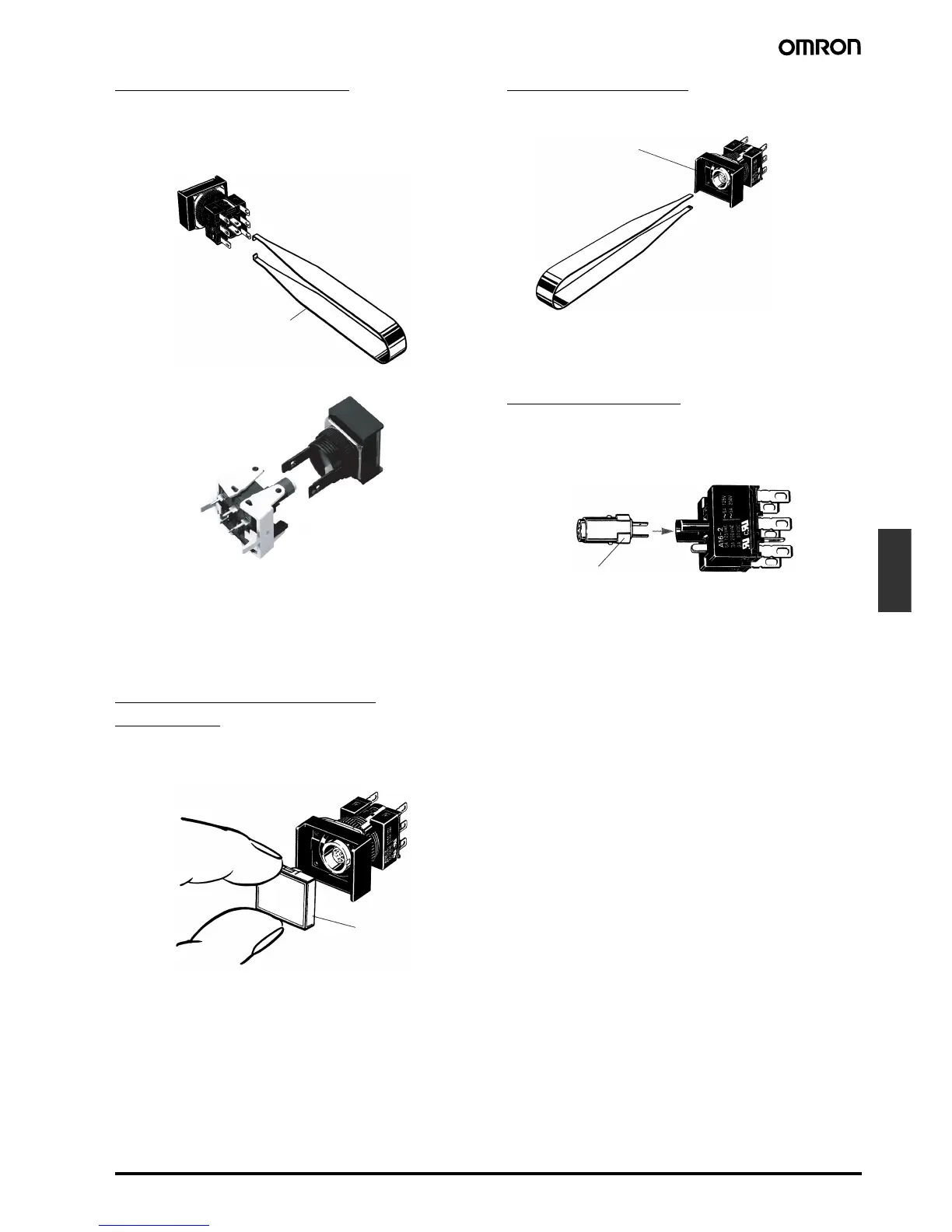

Removing the Switch Unit
Grip the part between the Switch holder of the Case and the Switch
Unit using the A16Z-5080 Extractor, and pull to remove the Switch
Unit.
• 16-mm Models
• A16-P Models (with PCB Terminals)
The Switch Unit can be mounted or dismounted by simply opening or
closing the lever.
■ Mounting and Replacing the
Pushbutton
Removing and Mounting the
Pushbutton
1. Remove the Pushbutton as shown in the following diagram. If the
Pushbutton cannot be removed by hand, use the A3PJ-5080
Extractor.
2. To attach the Pushbutton, push until it clicks into place.
Removing the Lamp
Removing from the Pushbutton End
Removing from the Switch End
The Lamp can be removed by hand once the Switch is removed
using the A16Z-5080 Extractor.
Installing the Lamp
When mounting the Lamp, make sure it is facing the direction shown
in the following diagram. Insert the Lamp while matching the protrud-
ing part of the Lamp and the small guides on the outer surface of the
Case.
The Lamp can be mounted from the Pushbutton end by using the
A16Z-5080 Extractor. The lamp can be mounted by following the
opposite procedure for removing the Lamp.
A16Z-5080 Extractor
Pushbutton
Lamp
Grip the Lamp with the
A16Z-5080 Extractor and
pull to remove.
Protruding part
To Next Page
