Omron A16 - Ordering Information

G-8 Pushbutton Switch A16

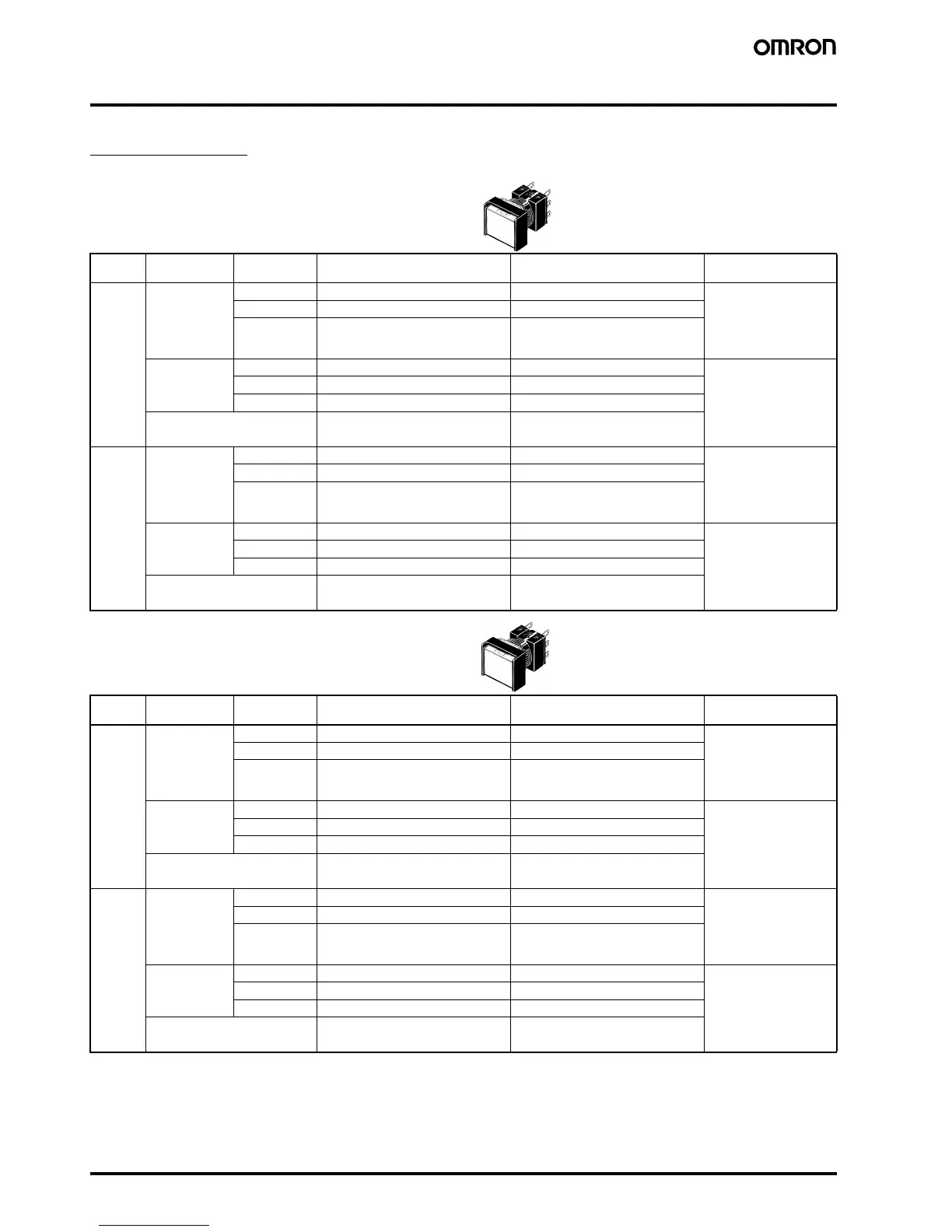

Ordering Information
■ List of Models
Ordering as a Set
The model numbers used to order sets of Units are given in the following tables. One set comprises the Pushbutton, Lamp (lighted models only),
Case, and Switch.
A16@-J (Rectangular) Models
Solder Terminal Models
IP40
IP65 Oil-resistant
Note: 1. Enter the desired color symbol for the Pushbutton in the @.
2. Black (“B”) Pushbuttons are only available for non-lighted models.
Output Lighting Operating
voltage
Momentary operation
(Self-resetting)
Alternate operation (Self-holding) Pushbutton color
symbol (See note 1.)
SPDT LED
without Voltage
Reduction Unit
5 VDC A16L-J@M-5D-1 A16L-J@A-5D-1 R: red
Y: yellow
PY: pure yellow
G: green
A: blue
W: white
12 VDC A16L-J@M-12D-1 A16L-J@A-12D-1
24 VDC A16L-J@M-24D-1 A16L-J@A-24D-1
Incandescent
lamp
5 VDC/VAC A16L-J@M-5-1 A16L-J@A-5-1 R: red
Y: yellow
PY: pure yellow
G: green
W: white
A: blue
B: black (See note 2.)
12 VDC/VAC A16L-J@M-12-1 A16L-J@A-12-1
24 VDC/VAC A16L-J@M-24-1 A16L-J@A-24-1
Non-lighted A16-J@M-1 A16-J@A-1
DPDT LED
without Voltage
Reduction Unit
5 VDC A16L-J@M-5D-2 A16L-J@A-5D-2 R: red
Y: yellow
PY: pure yellow
G: green
A: blue
W: white
12 VDC A16L-J@M-12D-2 A16L-J@A-12D-2
24 VDC A16L-J@M-24D-2 A16L-J@A-24D-2
Incandescent
lamp
5 VDC/VAC A16L-J@M-5-2 A16L-J@A-5-2 R: red
Y: yellow
PY: pure yellow
G: green
W: white
A: blue
B: black (See note 2.)
12 VDC/VAC A16L-J@M-12-2 A16L-J@A-12-2
24 VDC/VAC A16L-J@M-24-2 A16L-J@A-24-2
Non-lighted A16-J@M-2 A16-J@A-2
Output Lighting Operating
voltage
Momentary operation
(Self-resetting)
Alternate operation (Self-holding) Pushbutton color
symbol (See note 1.)
SPDT LED
without Voltage
Reduction Unit
5 VDC A165L-J@M-5D-1 A165L-J@A-5D-1 R: red
Y: yellow
PY: pure yellow
G: green
A: blue
W: white
12 VDC A165L-J@M-12D-1 A165L-J@A-12D-1
24 VDC A165L-J@M-24D-1 A165L-J@A-24D-1
Incandescent
lamp
5 VDC/VAC A165L-J@M-5-1 A165L-J@A-5-1 R: red
Y: yellow
PY: pure yellow
G: green
W: white
A: blue
B: black (See note 2.)
12 VDC/VAC A165L-J@M-12-1 A165L-J@A-12-1
24 VDC/VAC A165L-J@M-24-1 A165L-J@A-24-1
Non-lighted A165-J@M-1 A165-J@A-1
DPDT LED
without Voltage
Reduction Unit
5 VDC A165L-J@M-5D-2 A165L-J@A-5D-2 R: red
Y: yellow
PY: pure yellow
G: green
A: blue
W: white
12 VDC A165L-J@M-12D-2 A165L-J@A-12D-2
24 VDC A165L-J@M-24D-2 A165L-J@A-24D-2
Incandescent
lamp
5 VDC/VAC A165L-J@M-5-2 A165L-J@A-5-2 R: red
Y: yellow
PY: pure yellow
G: green
W: white
A: blue
B: black (See note 2.)
12 VDC/VAC A165L-J@M-12-2 A165L-J@A-12-2
24 VDC/VAC A165L-J@M-24-2 A165L-J@A-24-2
Non-lighted A165-J@M-2 A165-J@A-2
