Zeitrelais H3DT
H3DT
H3DT-H
28

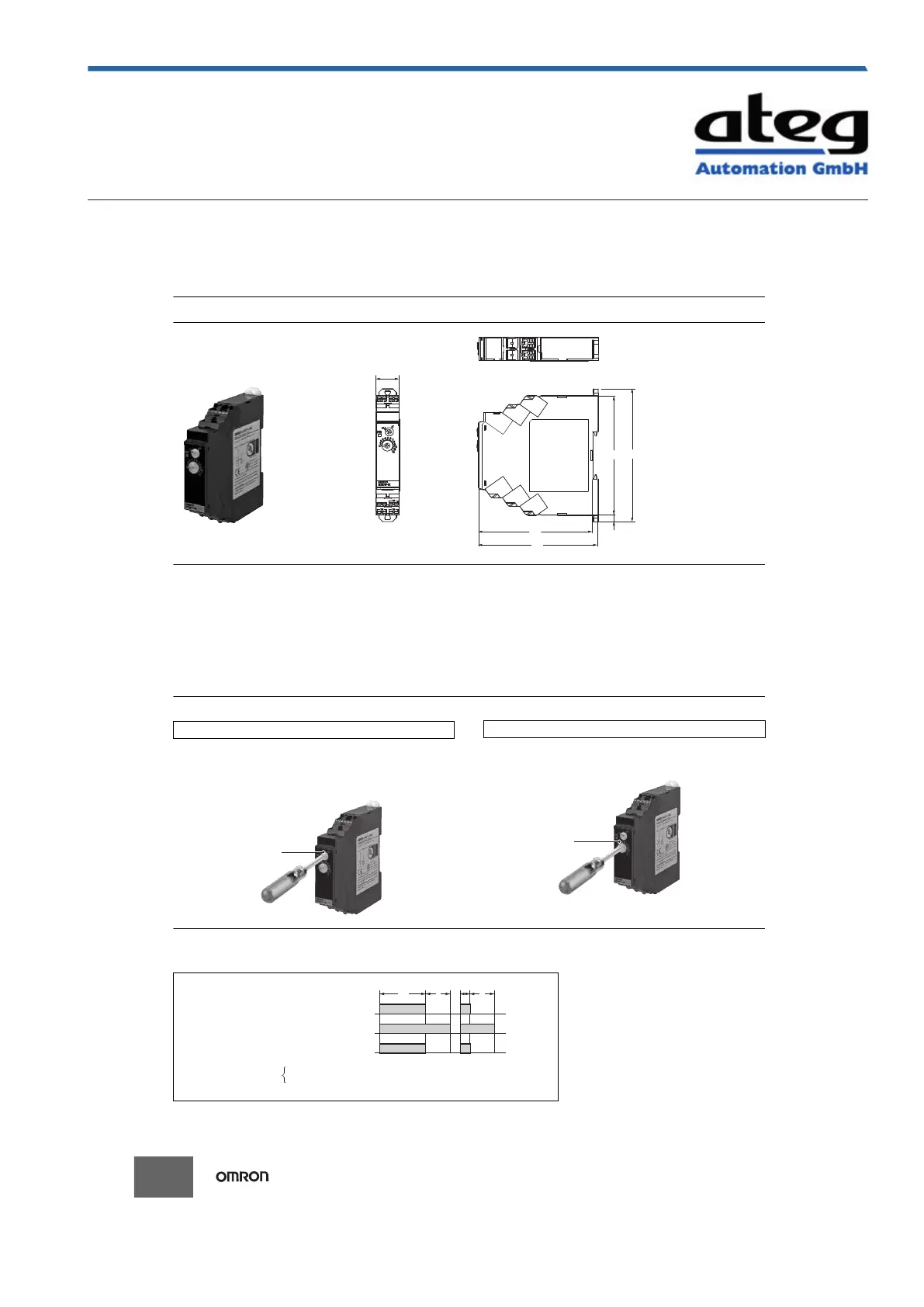

Dimensions (Unit: mm)
Timers
Track Mounting Products (Sold Separately)
Refer to page 29 for details.
Options (Order Separately)
Front Cover
Refer to page 29 for details.
Operating Procedures
Basic Operation
Setting the Time Ranges
The scale multiplier can be changed with the timer range switch. It can
be changed between
0.1 s and 1 s for an S-series Timer and
between
1 s and 10 s for an L-series Timer.
Setting the Time
The operation time is set with the main dial.
Timing Charts
17.5
90
90
86
5
100
H3DT-H
Setting the Time Ranges
Time range
switch
Setting the Time
Main dial
t: Set time
Rt: Minimum power-ON time
(The output may never turn ON if the power is not ON for at least this time.)
ON
OFF
ON
OFF
ON
OFF
Rt t t
Rt
Power (A1 and A2)
Output relay: NO (15 and 18)
Indicator
S Series: 0.1 s min.
L Series: 0.3 s min.
