Omron C200HX-CPU64 - Work Flow

2

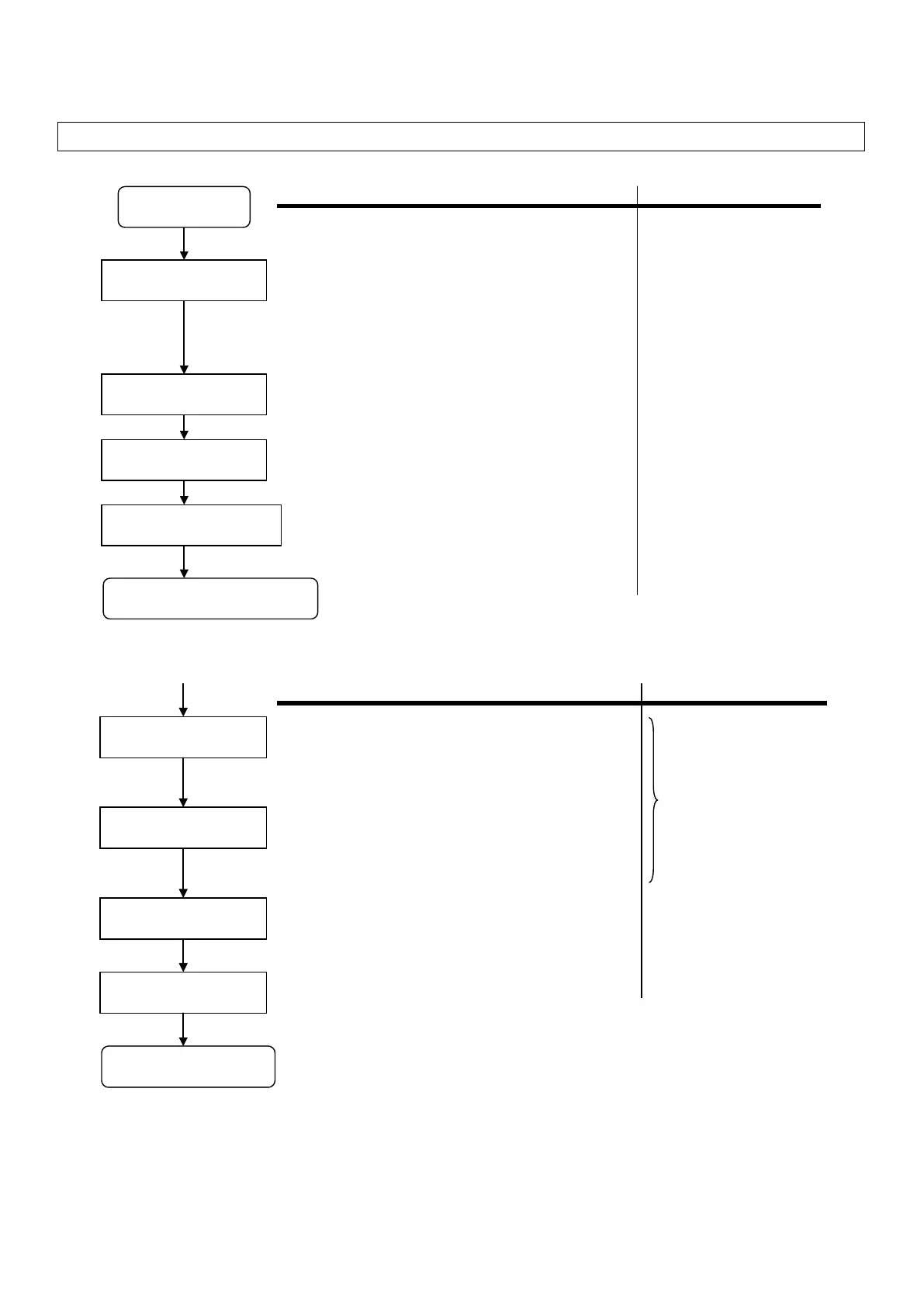

Follow the below work flow to replace C200HX/HG/HE with CJ2. Refer to the reference pages for details.
1. Work flow
1) Preliminary Steps: Take the following steps before starting the replacement work.
Selecting the model
Reading PLC data
Description
Reference pages
Select the units, programming software, and connecting
cables to replace C200HX/HG/HE with CJ2.
The C200H-series Units cannot be used with CJ2. Read the
reference pages (recommended models and remarks) and
select the models.
Load the program, I/O Memory and other settings from the
C200HX/HG/HE using the programming software and
connecting cable.
Converting and modifying data
Convert the data read from C200HX/HG/HE for CJ2.
Most of the data can be automatically converted; however, some
instructions and some Unit data can
not be converted.
Refer to the reference pages and modify the data and program
separately.
3. Selecting the model
4. Reading data from
C200HX/HG/HE
Preparing Units
Prepare the units, programming software, and connecting
cables.
5. Converting
the program for
CJ
2
Continue to actual replacement work
Start
2) Actual replacement work: Take the following steps to replace C200HX/HG/HE with CJ2.
Replacing Units
Writing the data to CJ2
Description
Reference pages
Install the prepared Units instead of C200H-series Units.
*Refer to the SYSMAC CJ Series CJ2 CPU Unit Hardware
USER'S MANUAL (Cat. No. W
472) and user's manuals for
Special I/O Units and CPU Bus Units for details of installation.
Transfer the converted data to CJ2
To check the wiring, operate input and output bits to see if
they operate correctly.
Checking operation
Turn ON the power and check the operation.
Related Manuals
Wiring
Wiring for the installed Units.
*Refer to the SYSMAC CJ Series CJ2 CPU Unit Hardware
USER'S MANUAL (Cat. No. W472) and user's manuals for
Special I/O Units and CPU Bus Units for details of wiring.
6. Writing data to CJ2
Replacement completion
1. If production is conducted between uploading the program and executing replacement
work, data handled by the program may change. If so, upload the data right before the
replacement work, modify data (if necessary), and download it to the new PLC.
2. The cycle time of C200HX/HG/HE and CJ2 are different, which may affect system
operation. If so, it is necessary to adjust cycle time in the PLC Setup.
