Omron C200HX-CPU64 - Application Precautions

5

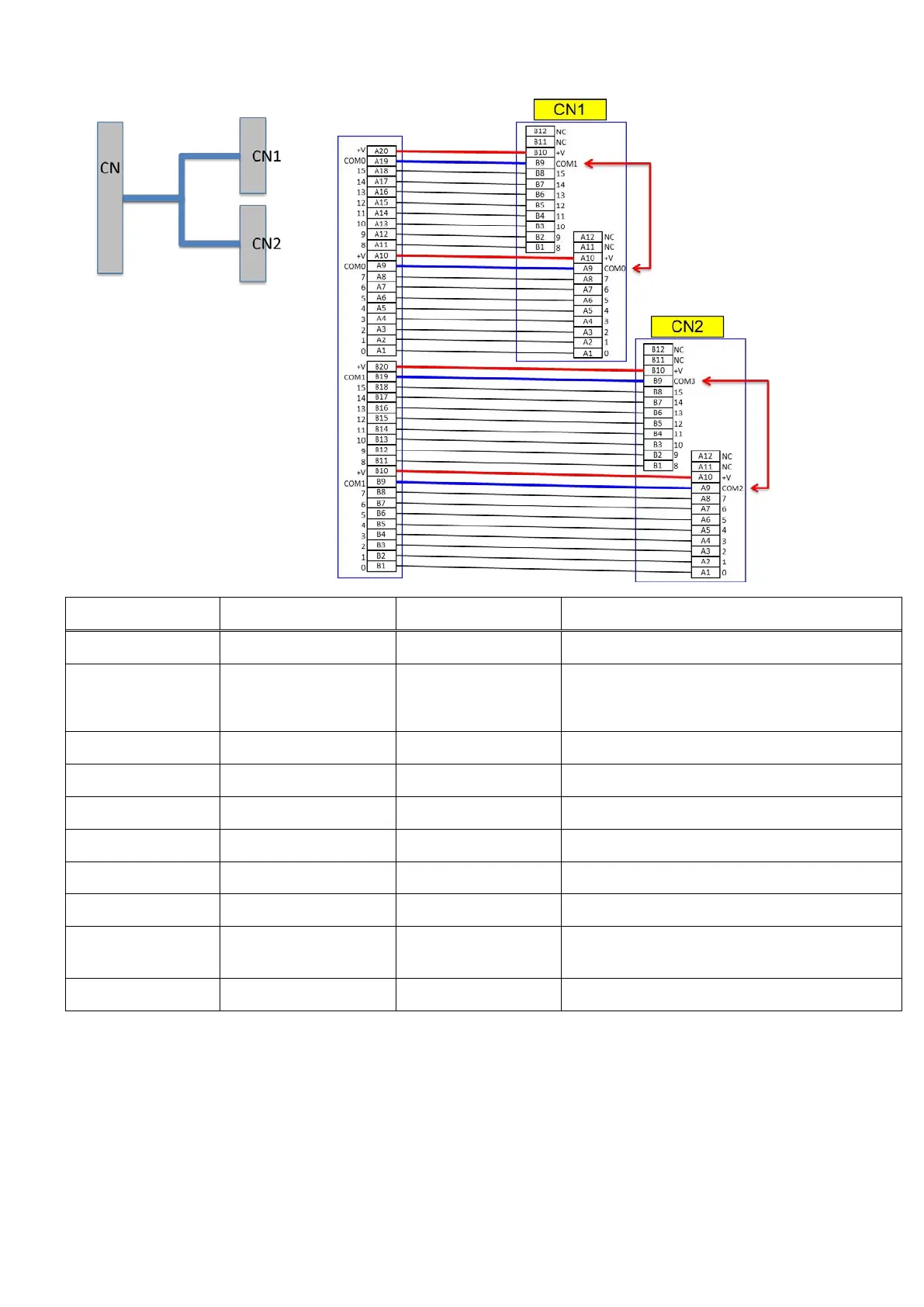

XW2Z-S011
CJ1W-OD231 C200H-OD215
Reused cable
C200H-OD215 CJ1W-OD231 Remarks
Rated voltage 5 to 24 VDC 12 to 24 VDC
We recommend you to use 24 VDC instead if 5 VDC
is used.
Max. switching capacity
16 mA/4.5 VDC to
100 mA/26.4 VDC
0.8 A/common,
3.2 A/Unit
0.5 A/point,
2 A/common, 4 A/Unit
Leakage current 0.1 mA max. 0.1 mA max.
Residual voltage 0.7 V max. 1.5 V max.
Make sure that the connected device operates
correctly.
ON response time 0.2 ms max. 0.1 ms max.
Make sure that the connected device operates
correctly.
OFF response time 0.6 ms max. 0.8 ms max.
Make sure that the connected device operates
correctly.
No. of circuits
8 points/common x
4 circuits (32 outputs)
16 points/common x
2 circuits (32 outputs)
The number of circuits decreased from 4 to 2.
Rewire if separate power supplies are used.
Fuses 4 (1 fuse/common) None
When protection is required, connect a protective
device externally.
External power supply
5 to 24 VDC±10%,
90 mA min.
2.8 mA x no. of ON outputs
10.2 to 26.4 VDC,
30 mA min.
Dynamic outputs 30 mA min. Not supported Dynamic outputs are not supported.
* CN1 COM0 and COM1 and
CN2 COM2 and COM3 are
internally connected in the
CJ-series Unit. When separate
power supplies were used,
rewire to use one common
power supply.
