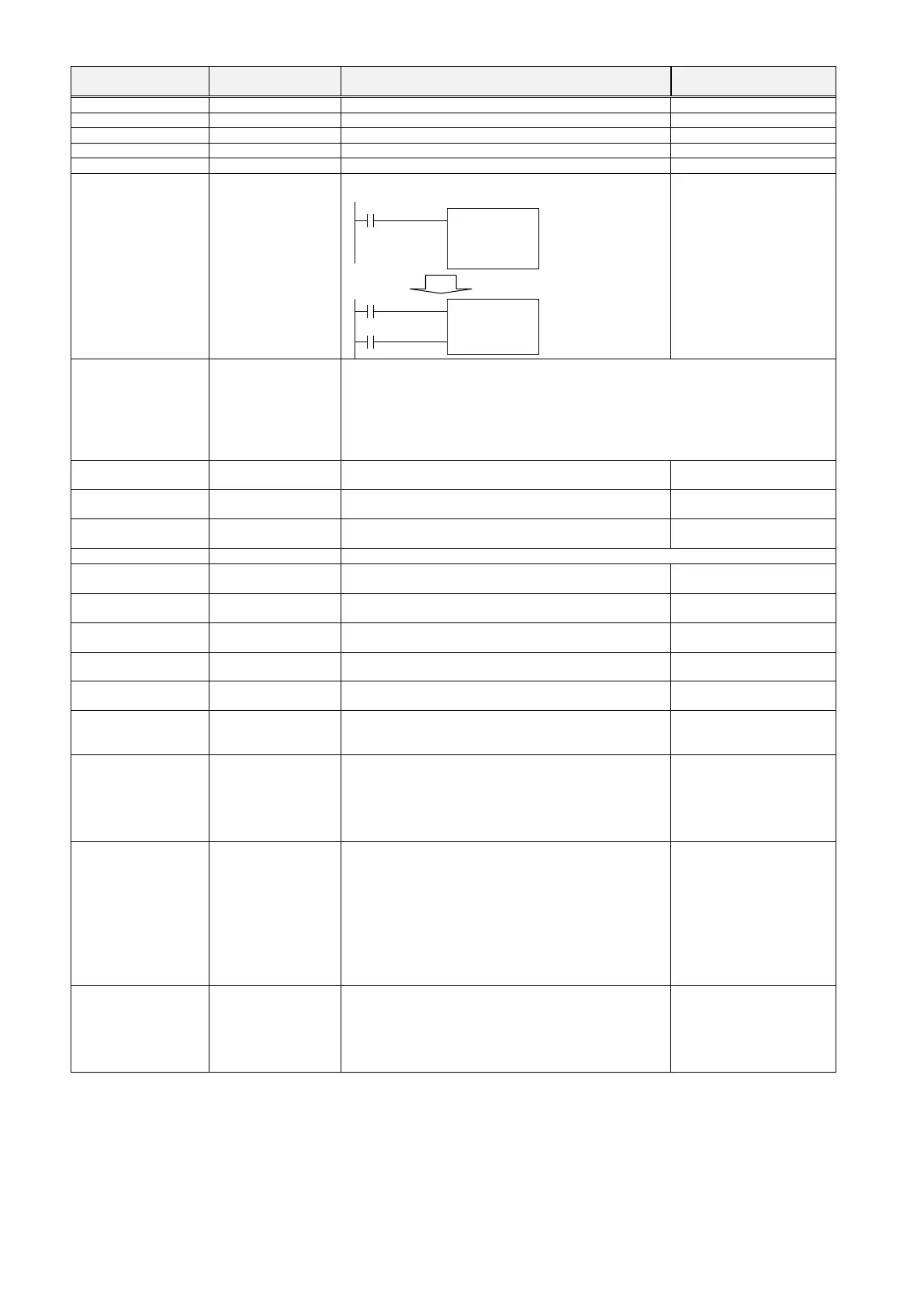

18
Instruction for
C200HX/HG/HE
Instruction for CJ2
Operand
Number of operands
BCNT(67)
BCNTC(621)
Same as C200HX/HG/HE
Same
XFER(70)
XFERC(565)
Same as C200HX/HG/HE
Same
DIST(80)
DISTC(566)
Same as C200HX/HG/HE
Same
COLL(81)
COLLC(567)
Same as C200HX/HG/HE
Same
MOVB(82)
MOVBC(568)
Same as C200HX/HG/HE
Same
TTIM(87)
TTIM(087)
The third operand (reset bit) is deleted. Add the reset
input. (See the figure below).
TTIM(87)
000
#3000
200.00
TTIM(087)
000
#3000
200.00
Changed from 3 to 2.
INT(89)
Not supported
Use the following instructions for each function:
SET INTERRUPT MASK: MSKS(690)
CLEAR INTERRUPT: CLI(691)
READ INTERRUPT MASK: MSKR(692)
DISABLE INTERRUPTS: DI(693)
ENABLE INTERRUPTS : EI(694)
Scheduled Interrupt
Interval: Set in the PLC Setup
SEND(90)
SEND(090)
The specification of the first control word (third operand)
is changed. Refer to the manual to change the settings.
Same
WDT(94)
WDT(094)
The specification of the operand is changed. Refer to the
manual to change the settings.
Same
RECV(98)
RECV(098)
The specification of the first control word (third operand)
is changed. Refer to the manual to change the settings.
Same
BXFR(125)
Not supported
Use XFER(070) or XFERC(565) instead.
FCS(180)
FCS(180)
The specification of the first control word (first operand)
is changed. Refer to the manual to change the settings.
Same
SRCH(181)
SRCH(181)
The specification of the first control word (first operand)
is changed. Refer to the manual to change the settings.
Same
MAX(182)
MAX(182)
The specification of the first control word (first operand)
is changed. Refer to the manual to change the settings.
Same
MIN(183)
MIN(183)
The specification of the first control word (first operand)
is changed. Refer to the manual to change the settings.
Same
SUM(184)
SUM(184)
The specification of the first control word (first operand)
is changed. Refer to the manual to change the settings.
Same
PID(190)
PID(190)
The specification of the first parameter word (second
operand) is changed. Refer to the manual to change the
settings.
Same
AVG(195)
AVG(195)
The data type of the second operand is changed from
BCD to binary.
When a constant is specified, "#" is automatically
converted to "&".
When a word address is specified, change the data type
of the word from BCD to binary.
Same
DSW(210)
DSW(210)
The fourth and fifth operands are added.
The fourth operand specifies the number of digits that
will be read. Check if the number of digits after
conversion is the same as the number specified by this
operand.
The fifth operand specifies a work word used by this
instruction. As this word cannot be used for any other
purpose, change to another area when the area
assigned by conversion is the area used for another
purpose.
Changed from 3 to 5.
HKY(212)
HKY(212)
The fourth operand is added.
The fourth operand specifies a work word used by this
instruction. As this word cannot be used for any other
purpose, change to another area when the area
assigned by conversion is the area used for another
purpose.
Changed from 3 to 4.
