TTL Output Unit C200H-OD501 (Used as a 32-point Output Unit)
Max. Switching Capacity 5 VDC 35 mA (280 mA/common, 1.12 A/Unit;
output resistance 4.7 kW)
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 0.4 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 4 (8 points/common)
Internal Current Consumption 220 mA 5 VDC max.
Fuses 4 (1 fuse/common; fuses are not user-replacable.)
Power for External Supply 39 mA 5 VDC min. (1.2 mA × no. of outputs ON)
Weight 300 g max.
Dimensions 130×34.5×100.5 (H×W×D, in millimeters)

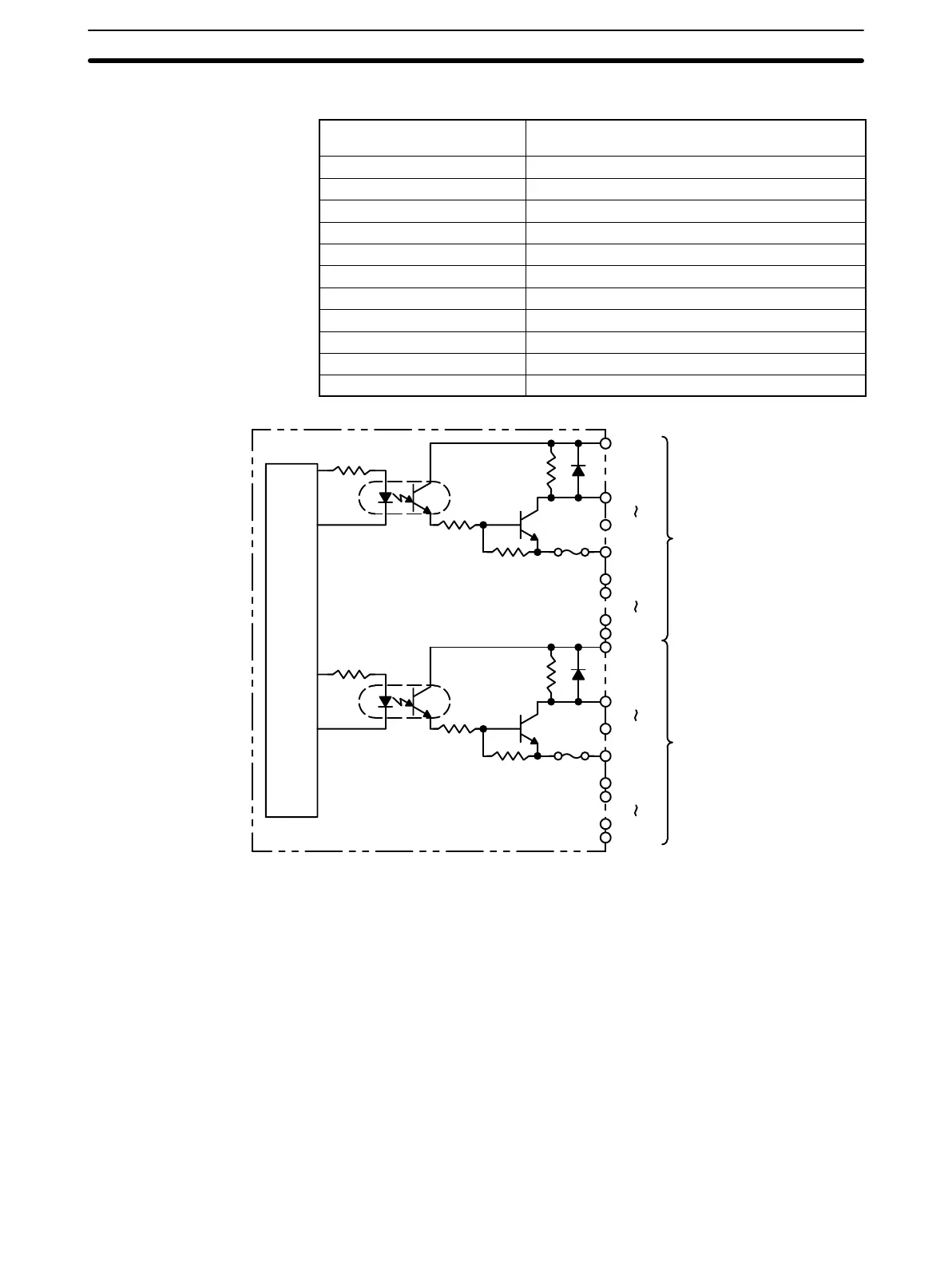

Circuit Configuration
OUT00
OUT07
COM0
CN1
OUT08
OUT15
COM1
Internal
Circuit
5 VDC
5 VDC
Fuse
4.7 kW
OUT00
OUT07
COM2
CN2
OUT08
OUT15
COM3
5 VDC
5 VDC
Fuse
4.7 kW
