54

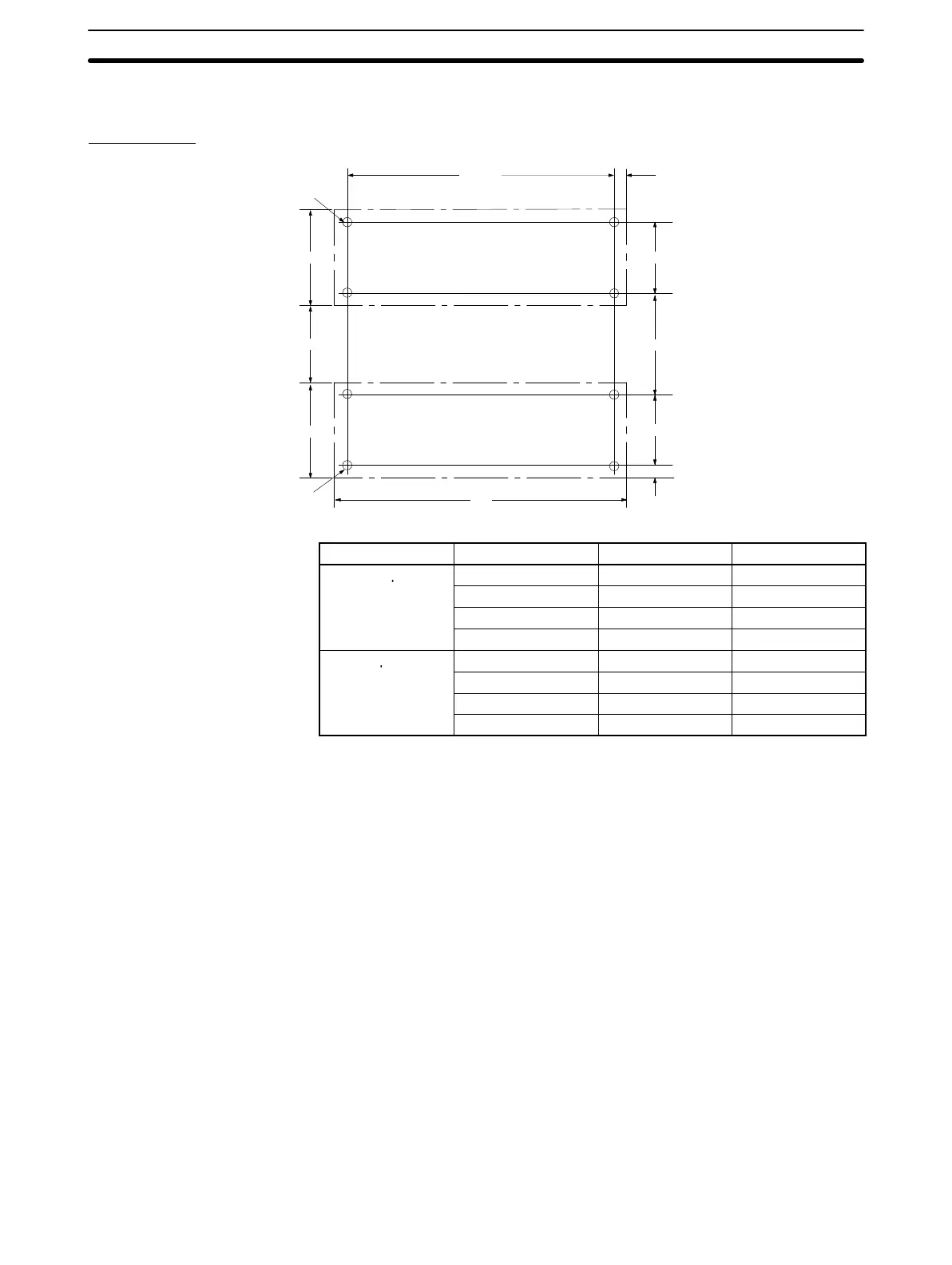

3-1-4 Mounting Dimensions (Units: mm)
Backplanes
A±0.2
118±0.2
80 to 120
118±0.2
W
Four, M4
130
68 to 108
130
CPU Backplane
I/O Backplane
Four, M4
7
6
Model A W
CPU Backplane
C200HW-BC031 246 mm 260 mm
C200HW-BC051 316 mm 330 mm
C200HW-BC081-V1 421 mm 435 mm
C200HW-BC101-V1 491 mm 505 mm
I/O Backplane
C200HW-BI031 175 mm 189 mm
C200HW-BI051 245 mm 259 mm
C200HW-BI081-V1 350 mm 364 mm
C200HW-BI101-V1 420 mm 434 mm
Note The C200HW-PA204R/PA209R cannot be used with all combinations of CPU
Units and Backplanes. Refer to page 23, Restrictions for the C200HW-PA204R/
PA209R, for details.
Installation Environment Section 3-1
To Next Page
