Omron C200HX Series

Appendix DDimensions and Mounting Methods
216

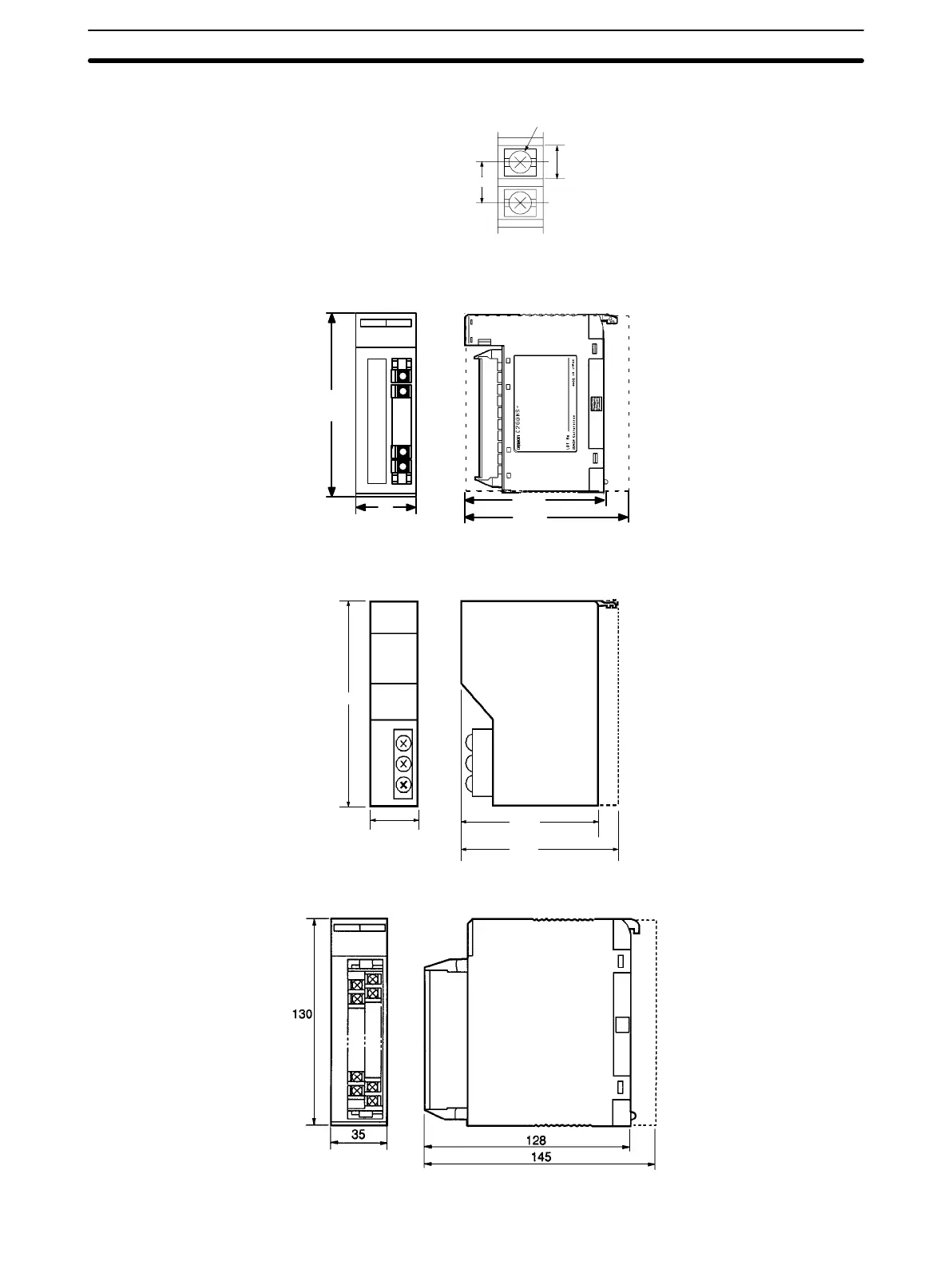

Terminal Dimensions
M3.5
8.5
7.3
Interrupt Input Unit
The dimensions shown below are for the Interrupt Input Unit classified as Special I/O Units.
Backplane
x
x
101
118
x
x
35
130
Standard B7A Interface Unit
The dimensions shown below are for the B7A Interface Unit classified as Special I/O Units.
130
35
101
118
Backplane
Group-2 B7A Interface Units The dimensions shown below are for the Group-2 B7A Interface Units.
Backplane
