Appendix DDimensions and Mounting Methods
218

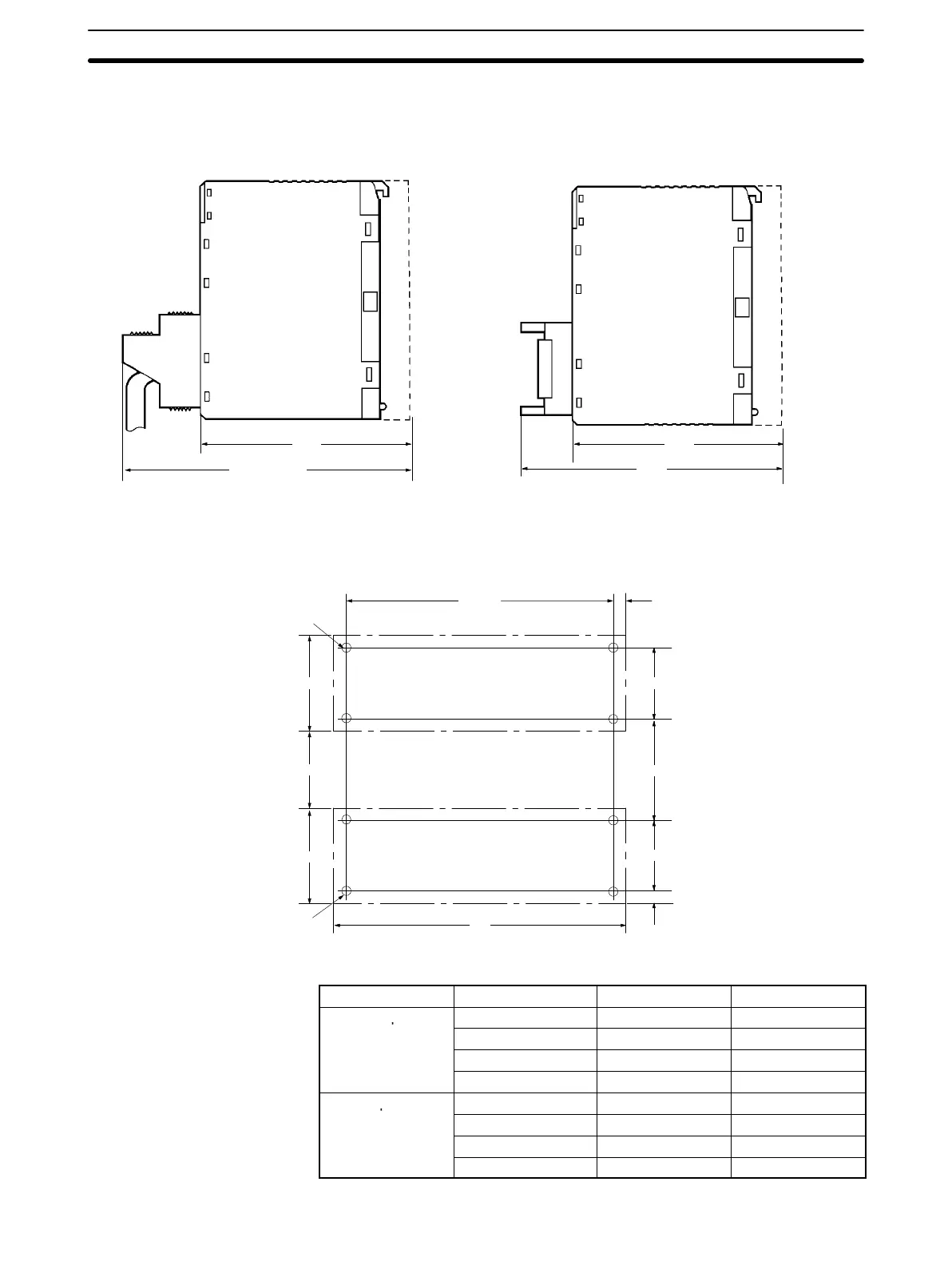

Dimensions with Unit Mounted
Fujitsu Connector
G79-jC Connecting Cable
118
118
145
Approx. 163
Backplane Backplane
G79-jC
Connecting
Cable
Connecting
cable
Mounting Dimensions
A±0.2
118±0.2
80 to 120
118±0.2
W
Four, M4
130
68 to 108
130
Backplane
Backplane
Four, M4
7
6
Backplane Model A±0.2 W
CPU Backplane
C200HW-BC031 246 mm 260 mm
p
C200HW-BC051 316 mm 330 mm
C200HW-BC081-V1 421 mm 435 mm
C200HW-BC101-V1 491 mm 505 mm
I/O Backplane
C200HW-BI031 175 mm 189 mm
p
C200HW-BI051 245 mm 259 mm
C200HW-BI081-V1 350 mm 364 mm
C200HW-BI101-V1 420 mm 434 mm
