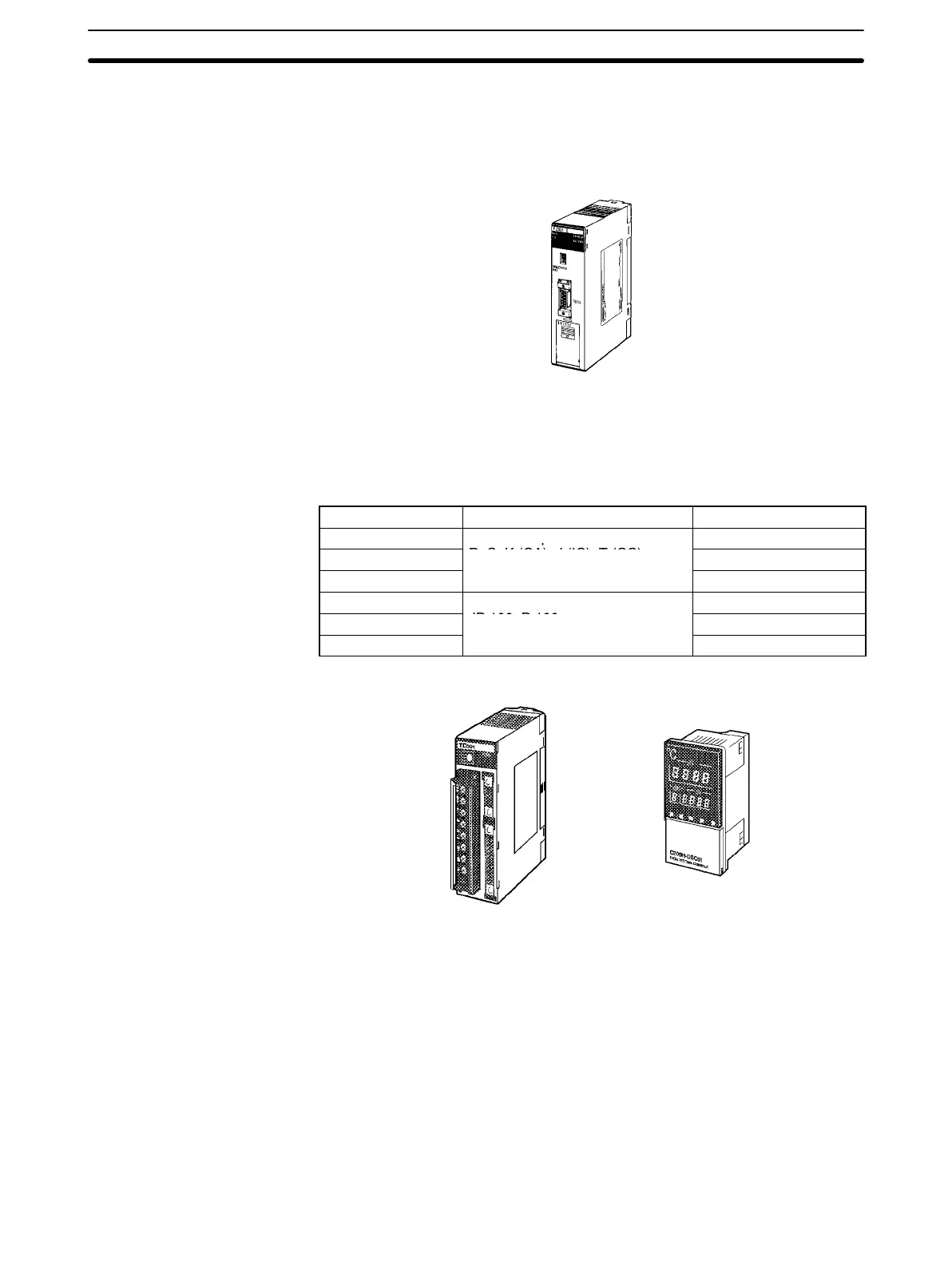

Fuzzy Logic Unit The C200H-FZ001 Fuzzy Logic Unit incorporates a high-functional fuzzy Logic
processor and allows high-speed fuzzy logic.
A personal computer can be connected to the Fuzzy Logic Unit via RS-232C
cables for software development and monitoring. Use the C500-SU981-E Fuzzy
Support Software for IBM PC/AT or compatible personal computers.
Temperature Control Units Thermocouples or platinum resistance thermometers connect to the Tempera-
ture Control Unit. With the built-in selector of the Temperature Control Unit, ten
kinds of thermocouples or two kinds of platinum resistance thermometers can
be selected.
Select the control output of the Temperature Control Unit from the following.
Model Temperature sensor input Control output
C200H-TC001
Thermocouple:
R S K (CA) J (IC) T (CC)
Transistor output
C200H-TC002
p
R, S, K (CA), J (IC), T (CC),
E (CRC) B N L (IC) U (CC)
Voltage output
C200H-TC003
E
(CRC)
,
B
,
N
,
L
(IC)
,
U
(CC)
Current output
C200H-TC101
Platinum resistance thermometer:
JP 100 P 100
Transistor output
C200H-TC102
JPt100, Pt100
Voltage output
C200H-TC103 Current output
Temperature Control Unit Data Setting Console
Expanded System Configurations
Section 2-4
