Omron CJ Series Connection Guide

7
．
Serial Communications Connection Procedure
17
10

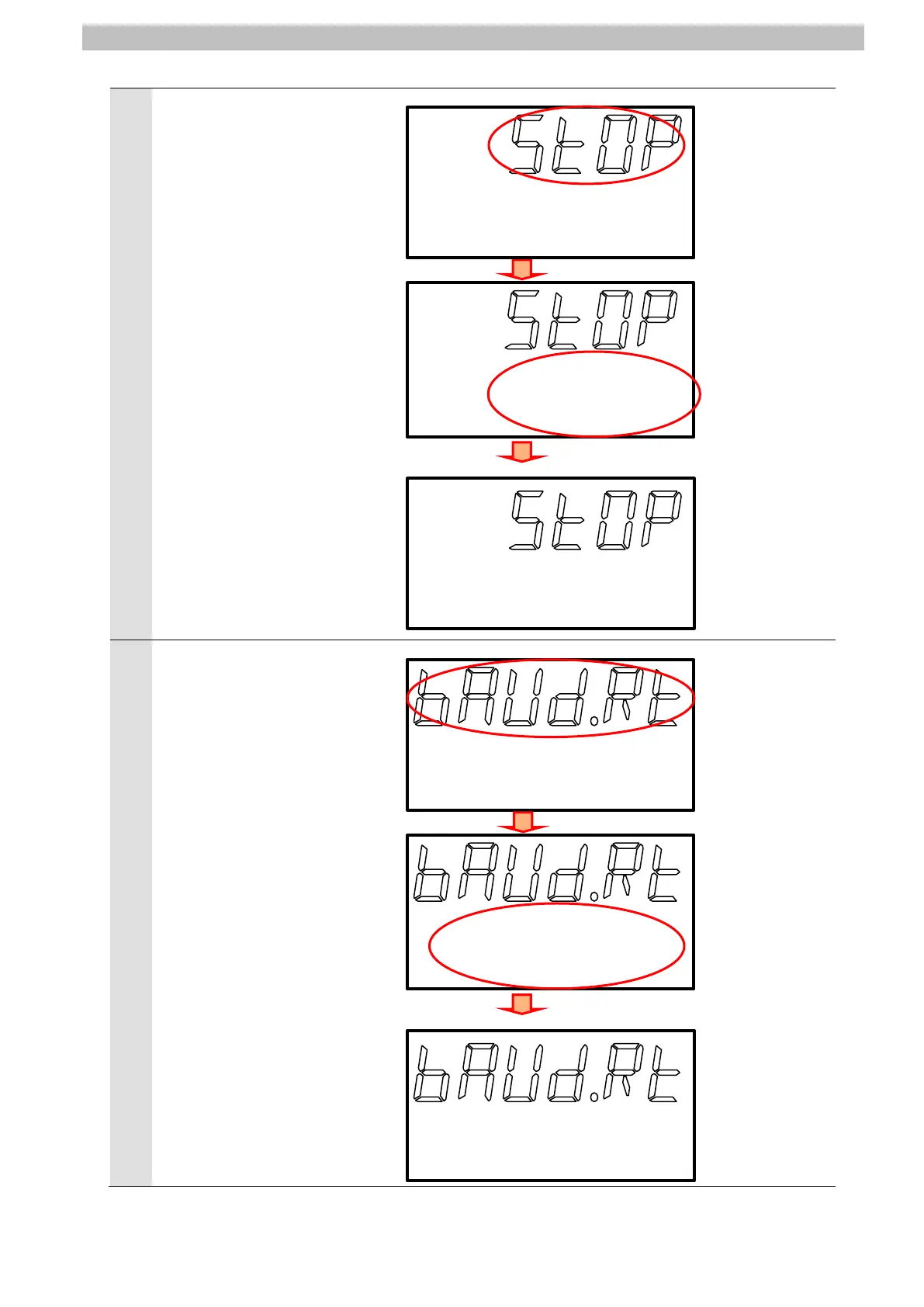

STOP is displayed on Main
display.
Press the ZERO/SET Key once.
Check that the following set
value is displayed on
Sub-display.
Stop bit: 1bit (Default)
Press the ZERORST/ESC Key
once.
*If the value is different, change
the value by pressing the
↑
(UP) or the
↓
(DOWN) Keys.
The first menu shown in this
step is displayed again.
Press the
→
(RIGHT) Key once.
1blt
11
BAUD.RT is displayed on Main
Display.
Press the ZERO/SET Key once.
Check that the following set
value is displayed on
Sub-display.
Baud rate: 38400 (Default)
Press the ZERORST/ESC Key
once.
*If the value is different, change
the value by pressing the
↑
(UP) or the
↓
(DOWN) Keys.
The first menu shown in this
step is displayed again.
Press the
→
(RIGHT) Key once.
38400
<Setting range>
1bit (Default)
/2bit
<Setting range>
9600/19200/
38400 (Default)
/57600/115200
