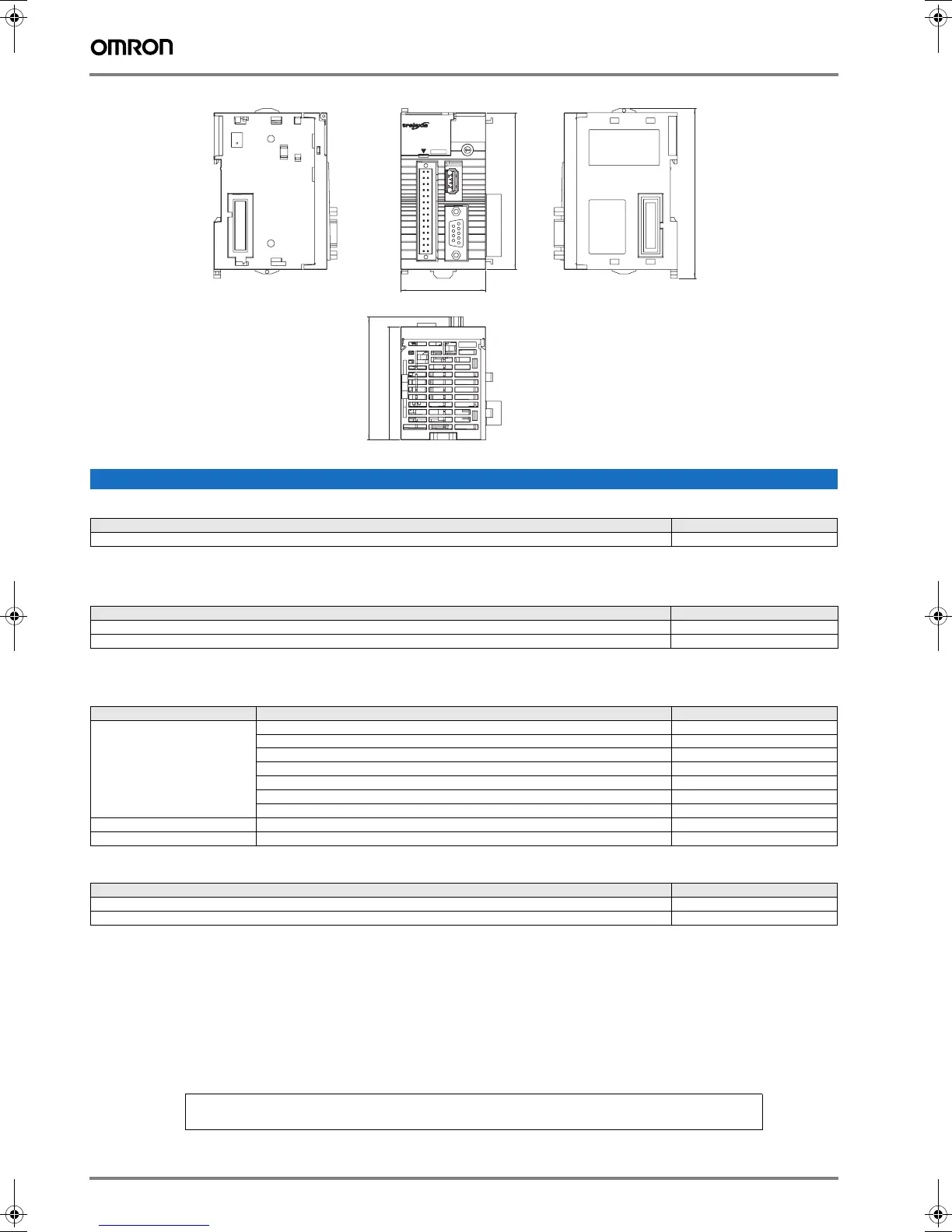

34 Motion controllers
Motion controller
MECHATROLINK-II - related devices
Servo system
Note: Refer to servo systems section for detailed specs and ordering information
MECHATROLINK-II cables
Computer software
Ordering information
Name Model
Trajexia motion control unit - MECHATROLINK-II CJ1W-MCH72
Name Model
Accurax G5 servo drive ML-II built-in R88D-KN@@@-ML2
G-Series servo drive ML-II built-in R88D-GN@@H-ML2
Name Remarks Model
MECHATROLINK-II cables 0.5 meter JEPMC-W6003-A5
1 meter JEPMC-W6003-01
3 meters JEPMC-W6003-03
5 meters JEPMC-W6003-05
10 meters JEPMC-W6003-10
20 meters JEPMC-W6003-20
30 meters JEPMC-W6003-30
MECHATROLINK-II terminator Terminating resistor JEPMC-W6022
MECHATROLINK-II repeater Network repeater JEPMC-REP2000
Specifications Model
CX-Motion Pro V1.2 or higher CX-One
Trajexia Studio
*1
V1.2 or higher
*1. When the Trajexia Studio software is included in CX-One, then it is called CX-Motion Pro.
TJ1-Studio
4
7
6
5
2
0
3
I/O
MLK
Enc.
UNIT
No.
1
RUN
ERC
ERH
BF
WDOG
OPEN
BATTERY
MCH72
mm
48.75
90
65
71
98
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. I54E-EN-02A
