Omron CJ2M-CPU35 User Manual

7
．
Serial Communications Connection Procedure
26
3

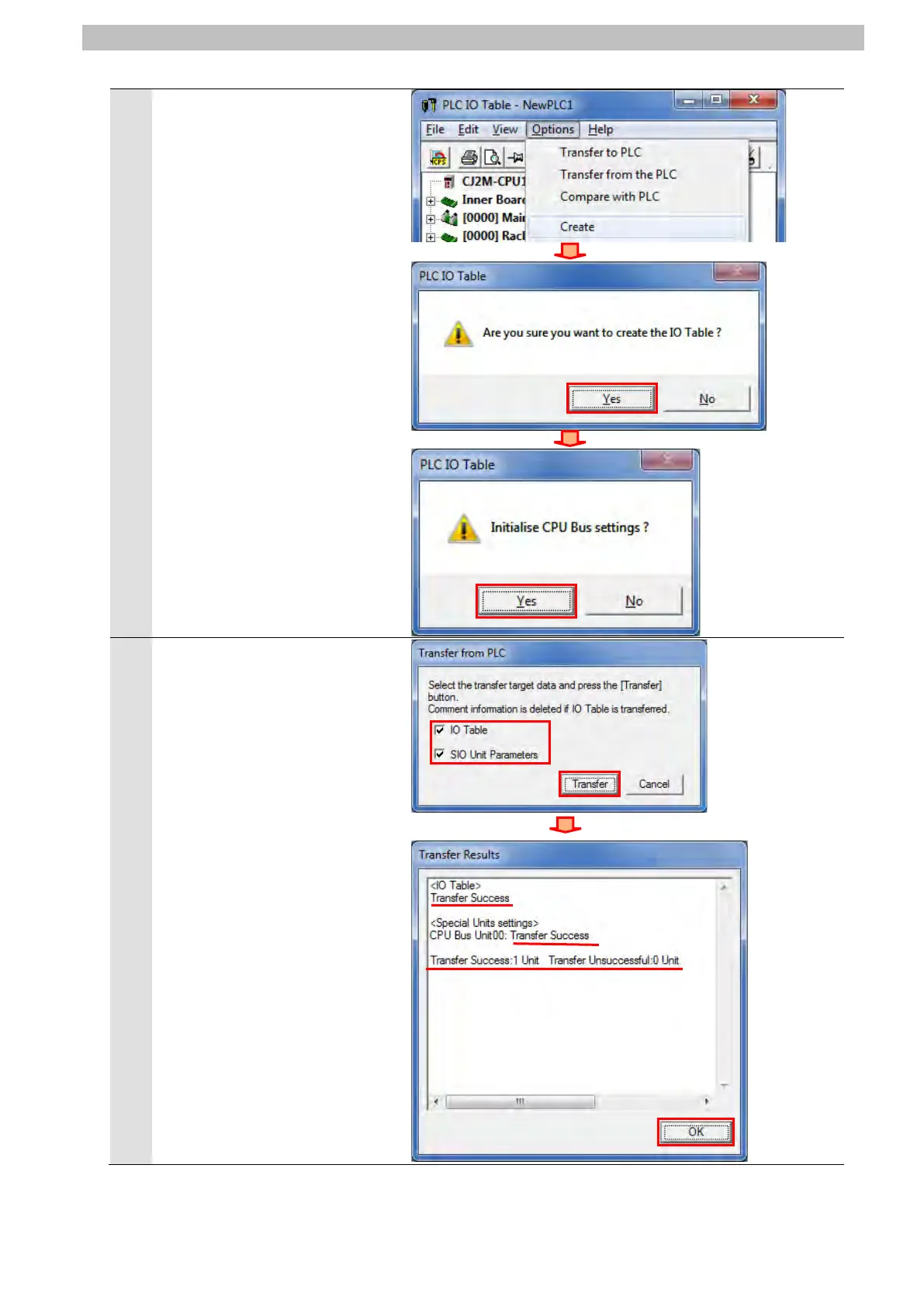

Select Create from the Options
Menu in the PLC IO Table
Window.
The confirmation dialog box on
the right is displayed. Confirm
that there is no problem, and
click Yes.
The confirmation dialog box on
the right is displayed. Confirm
that there is no problem, and
click Yes.
4
The Transfer from PLC Dialog
Box is displayed. Select IO
Table and SIO Unit Parameters.
Click Transfer.
When the transfer is completed,
the Transfer Results Dialog Box
is displayed.
Check that the transfer is
successfully completed by
referring to the message in the
dialog box.
When the I/O table is created
normally, the dialog box displays
as follows:
Transfer Success: 1 Unit
Transfer Unsuccessful: 0 Unit
Click
OK
.
