Omron CJ2M-CPU35 User Manual

9
．
Program
72
9.6.6. Receive Message Settings
The following describes the contents of receive message settings.
The receive message compatible with the response formats of normal and error messages
are set.
Additional Information
For details on receive message settings, refer to 3-4 Communication Message Attributes of
the CX-Protocol OPERATION MANUAL (Cat. No. W344).

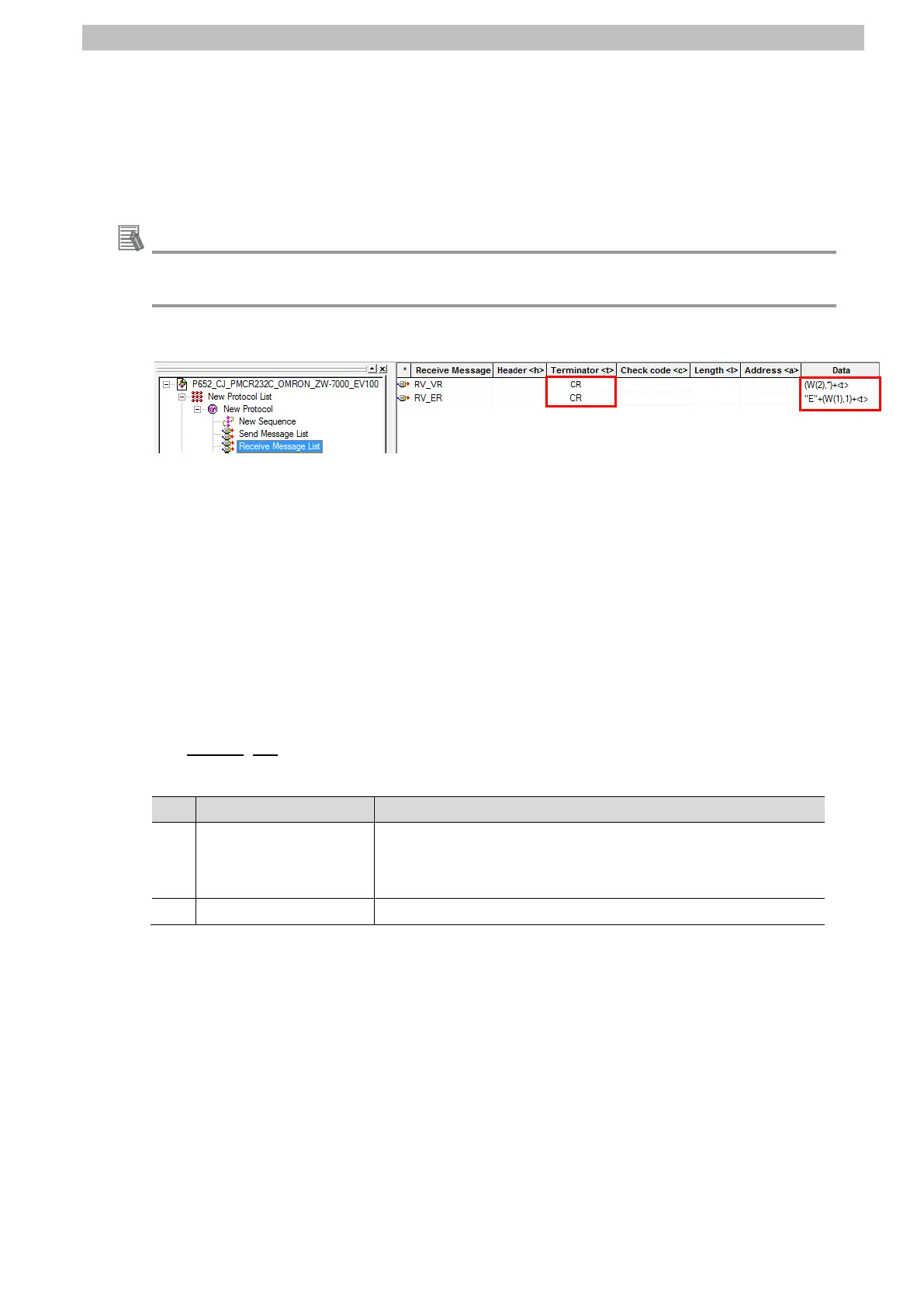

[Screenshot of receive message settings]
●Normal and error message identification
In the protocol macro data, the normal and error messages are identified using the receive
message data.
・Error message: Receive messages with 2 characters beginning with E
・Normal message: Receive messages except for the above
(A receive message is identified using a receive matrix.)
: All the other messages except for the above
●RV_VR receive message setting (Normal message)
<Setting>
(W(2),*)+<t>
(1) (2)
No. Code Description
(1) (W(2),*) W(2),*: Stores data with the desired size in the first receive
word + 2 words that is specified by the PMCR instruction
operand.
(2) <t> (Terminator) Type: Code, Data: CR
