Omron CK M-CPU1 1 Series Startup Guide

58
2
[Slot1(NX-SL3500)Input Data
Set1]
Registering Node1/Unit2
(NX-SID800)

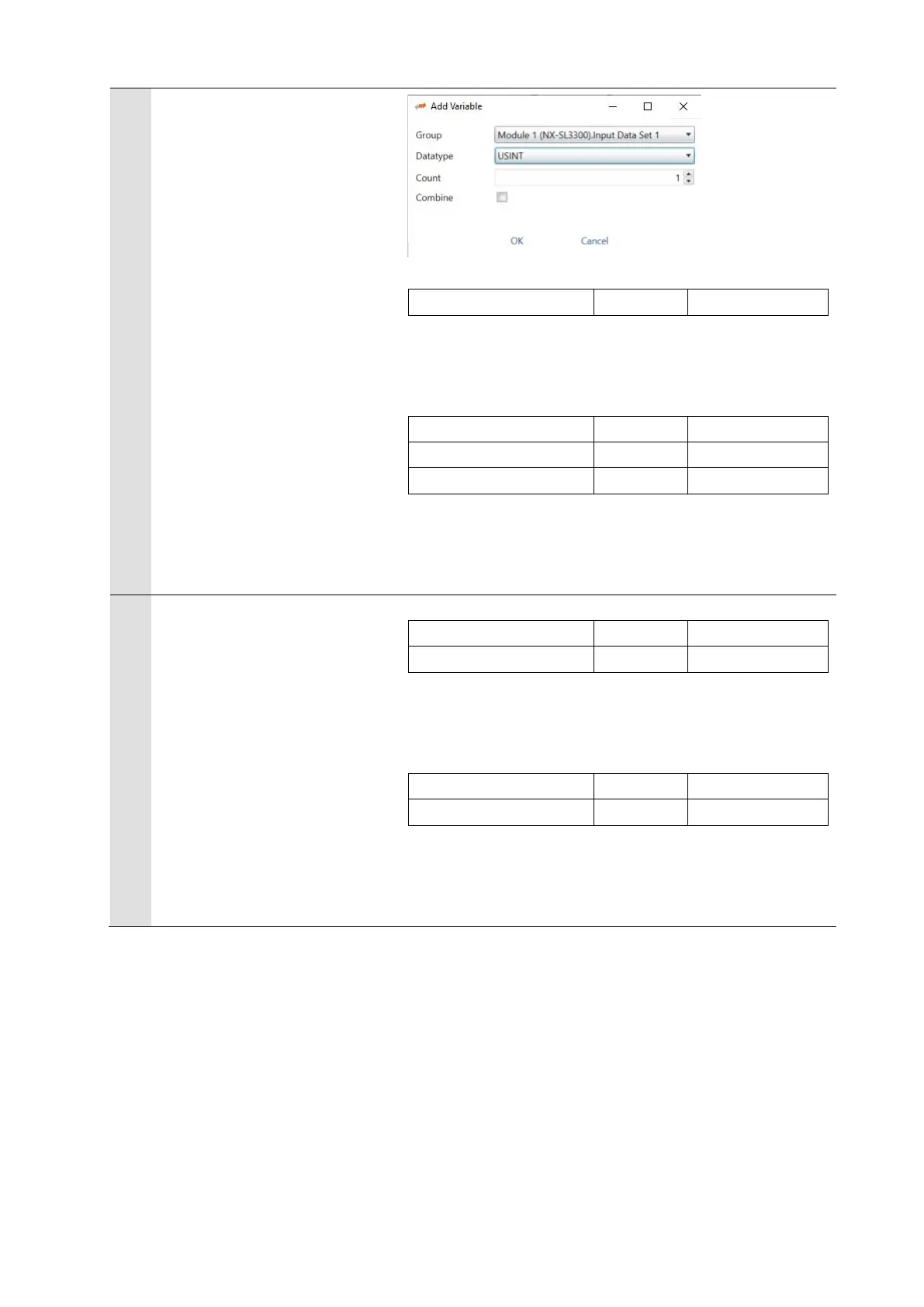

Click New in the Variables tab
page, and register 4 variables
shown on the right.
FSoE Slave CMD
#x6020:01
USINT
Group: Module 1(NX-SL3500).Input Data Set 1
Datatype: USINT
Count: 1
Safety Input 1st Word
#x6021:01
UINT
FSoE Slave CRC_0
#x6020:03
UINT
FSoE Slave Conn_ID
#x6020:02
UINT
Group: Module 1(NX-SL3500).Input Data Set 1
Datatype: UINT
Count: 3
3
[Slot1(NX-SL3500)Input Data
Set1]
Registering Node1/Unit3
(NX-SOD400)
Click New in the Variables tab
page, and register 4 variables
shown on the right.
FSoE Slave CMD
#x6040:01
USINT
Safety Input 1st Byte
#x6041:01
USINT
Group: Module 1(NX-SL3500).Input Data Set 1
Datatype : USINT
Count : 2
FSoE Slave CRC_0
#x6040:03
UINT
FSoE Slave Conn_ID
#x6040:02
UINT
Group: Module 1(NX-SL3500).Input Data Set 1
Datatype : UINT
Count : 2
