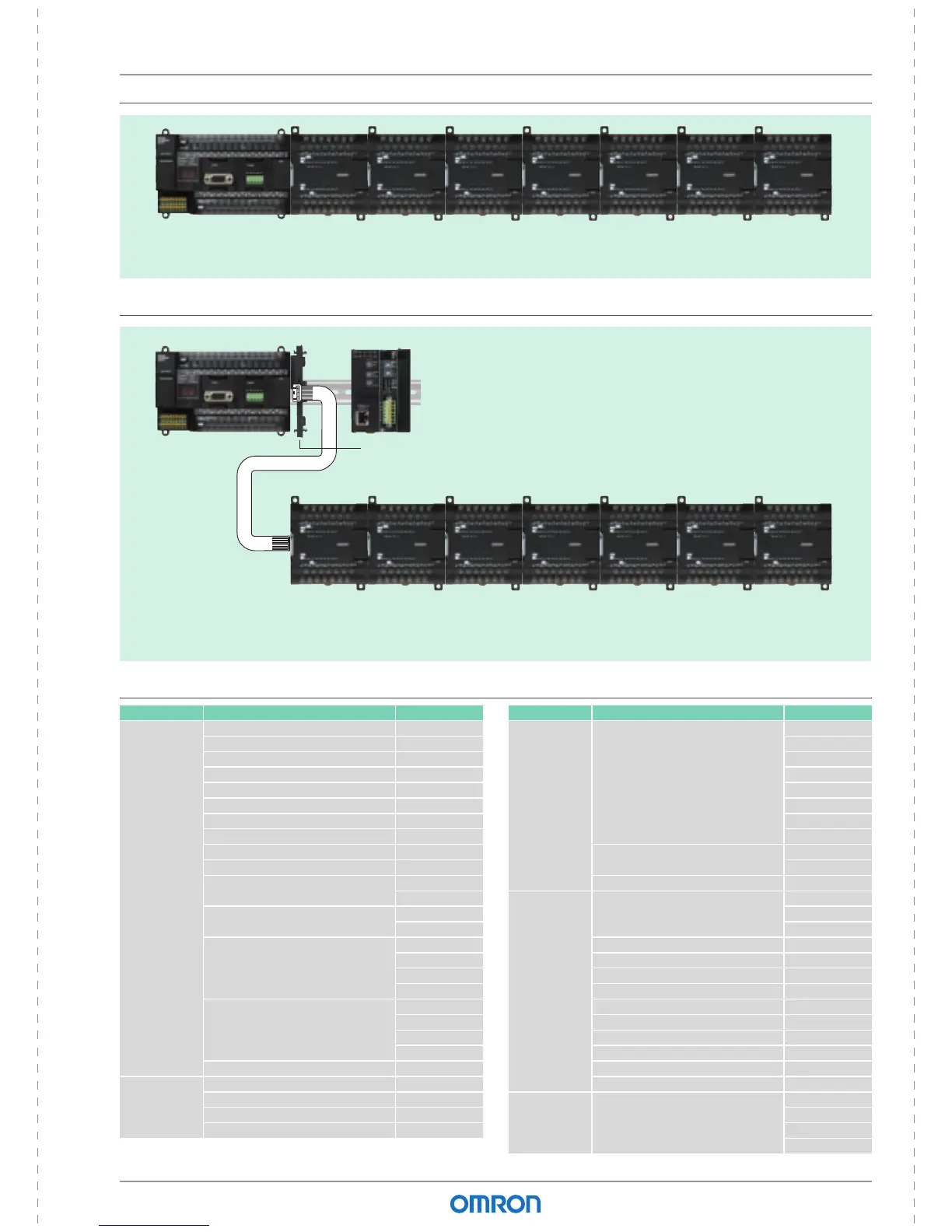

Options and accessories
Using expansion units with the CP1
Using CJ-series units and CP1W units with the CP1H
CJ-Series Units for use with CP1H
Description Unit Name Model Description Unit Name Model
Analog I/O and
Control Units
Universal Analog Input Unit CJ1W-AD04U Motion/Position
Control Units
Position Control Units CJ1W-NC113
Analog Input Unit CJ1W-AD041-V1 CJ1W-NC133
Analog Input Unit CJ1W-AD081-V1 CJ1W-NC213
Analog Output Unit CJ1W-DA021 CJ1W-NC233
Analog Output Unit CJ1W-DA041 CJ1W-NC271
Analog Output Unit CJ1W-DA08V CJ1W-NC471
Analog Output Unit CJ1W-DA08C CJ1W-NC413
Analog Input/Output Unit CJ1W-MAD42 CJ1W-NC433
Universal Analog Input Unit CJ1W-PH41U MECHATROLINK-II Position Control Unit CJ1W-NCF71
Process Input Unit CJ1W-PDC15 CJ1W-NCF71-MA
Thermocouple Input Unit CJ1W-PTS15 MECHATROLINK-II Motion Control Unit CJ1W-MCH71
CJ1W-PTS51 Communication
Units
Serial Communication Units CJ1W-SCU21-V1
Resistance Thermometer Input Unit CJ1W-PTS16 CJ1W-SCU31-V1
CJ1W-PTS52 CJ1W-SCU41-V1
Temperature Control Loops,
Thermocouple Unit
CJ1W-TC001 Ethernet Unit CJ1W-ETN21
CJ1W-TC002 EtherNet/IP Unit CJ1W-EIP21
CJ1W-TC003 DeviceNet Master Unit CJ1W-DRM21
CJ1W-TC004 CompoNet Master Unit CJ1W-CRM21
Temperature Control Loops, RTD CJ1W-TC101 CompoBus/S Master Unit CJ1W-SRM21
CJ1W-TC102 PROFINET I/O Controller Unit CJ1W-PNT21
CJ1W-TC103 PROFIBUS DP-V1 Master Unit CJ1W-PRM21
CJ1W-TC104 PROFIBUS DP Slave Unit CJ1W-PRT21
SYSMAC SPU CJ1W-SPU01-V2 Controller Link Unit CJ1W-CLK23
Motion/Position
Control Units
SSI Input Unit CJ1W-CTS21-E CAN Communication Unit CJ1W-CORT21
High Speed Counter Unit CJ1W-CT021 Control Units RFID Sensor Controller Unit CJ1W-V680C11
4-Channel Counter Unit CJ1W-CTL41-E CJ1W-V680C12
24VDC Motor Control Unit CJ1W-DCM11-E CJ1W-V600C11
CJ1W-V600C12
Note: Some Expansion Units and Expansion I/O Units have certain restrictions on use.
Up to 7 CP1W/CPM1A Expansion Units and Expansion I/O Units can be connected.
CP1W/CPM1A Expansion Units and Expansion I/O Units and CJ Units can be used simultaneously.
CP1W-CN811 I/O Connecting Cable is required.
CJ Unit Adaptor
CP1W-EXT01
Up to 7 CP1W/CPM1A Expansion Units and Expansion I/O Units can be connected.
Up to two CJ-series CPU Bus Units or Special I/O Units can
be connected.
