Omron CQM1H

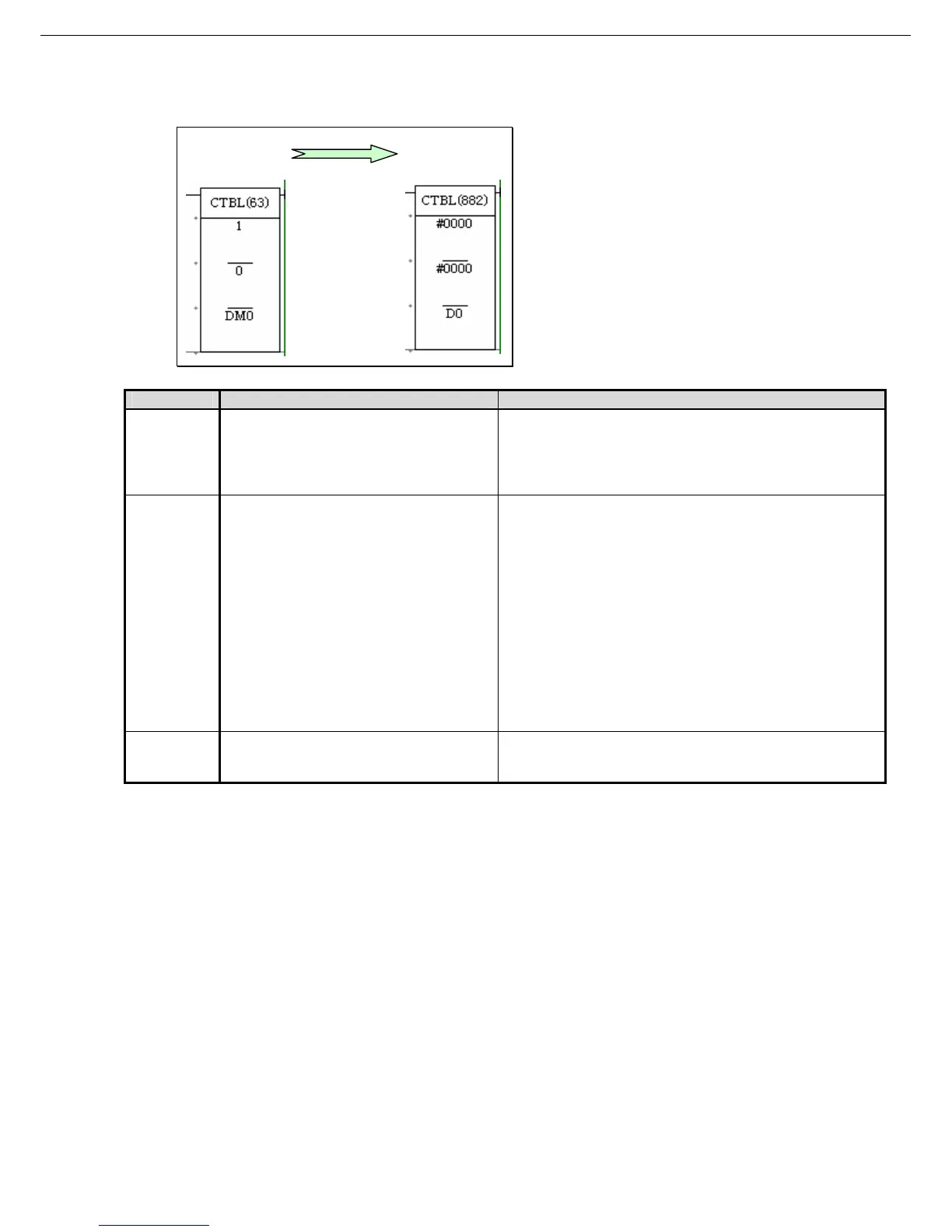

♦REGISTER COMPARISON TABLE (CTBL)
CQM1H CJ1M/CJ2M
CQM1H CJ1M/CJ2M
Operand1 Port specifer:
001= PLB High-speed counter 1
002= PLB High-speed counter 2
Port specifer:
#0000= High-speed counter input 0
#0001= High-speed counter input 1
#0002= High-speed counter input 2 (CJ2M only)
#0003= High-speed counter input 3 (CJ2M only)
Operand2 Control Data (Mode):
000=Registers a target value
comparison table and starts comparison.
001= Registers a range comparison
table and starts comparison.
002= Registers a target value
comparison table.
003= Registers range comparison table.
Control Data:
#0000= Registers a target value comparison table and
starts comparison
#0001= Registers a range comparison table with 8
ranges and starts comparison.
#0002= Registers a target value comparison table.
#0003= Registers a range comparison table with 8
ranges, but does not perform comparison.
#0004= Registers a range comparison table and starts
comparison.
(With 1 to 32 ranges (CJ2M only))
#0005= Registers a range comparison table, but does not
perform comparison.
(With 1 to 32 ranges (CJ2M only))
Operand3 First comparison table word:
Refer to the following description for
details.
First comparison table word:
Refer to the following description for details.
