How to Use Data Trace Recording Tool Appendix
244
Restrictions on Networks to be used
The Data Trace Recording Tool works as an application of FinsGateway,
saving the following data of the SYSMAC CS/CJ-series PLC connected to the
computer via FinsGateway.
1. A PLC connected via Controller Link
2. A PLC connected via Ethernet
3. A PLC connected via Host Link
4. The Ladder Engine (works as synchronous process.).
Note The Data Trace Recording Tool, assuming that FinsGateway is used, the
RUNTIME version of FinsGateway is required separately when using with
Ethernet or Host Link.

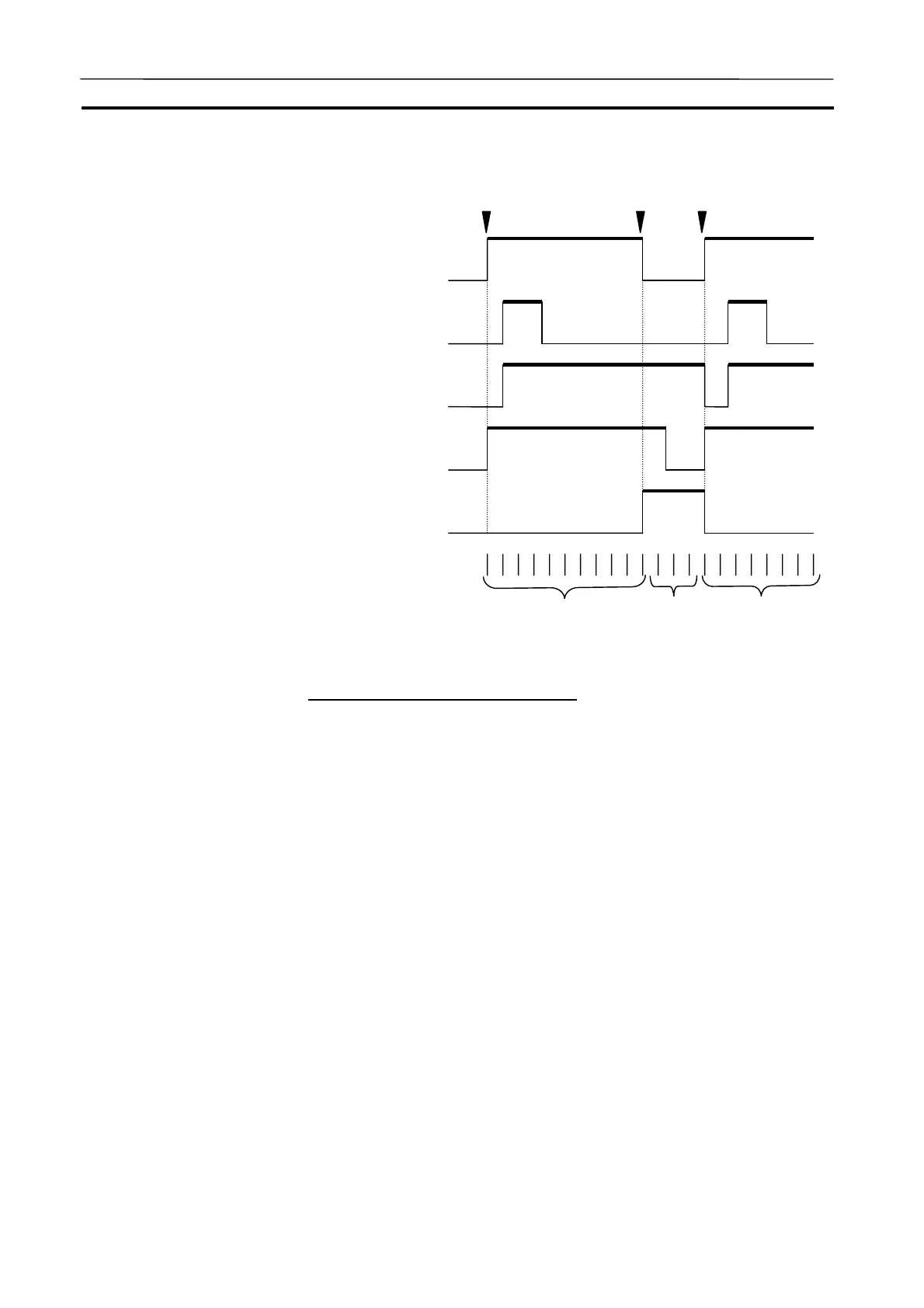

Data trace start
flag
Trace trigger
flag
Trace trigger
monitor flag
ON while execut-
ing trace flag
Sampling
ON when com-
pleting trace flag
Saved data
Missed
data
Saved data
Read Data trace startData trace start
