How to Use Data Trace Recording Tool Appendix
246
Item Description Limit of values
Trace status Display the Trace Status while tracing data.
Elapsed The time elapsed after execution started in the unit of
hour/minute/second (e.g. 1 hour 10 minutes 30 seconds).
Trace number
of samples
Number of traced samples.
Saving file Current file name when Multiple Saving is set.
Read settings
button
Read settings from the existing ini file to display it in the window.
Save settings
button
Save the settings to the ini file.
Option button Set options regarding the trace data recording.
Start button
Stop button
Change the caption between [Start] when not tracing and [Stop]
when tracing.
Press the [Start] button to start tracing and the [Stop] to stop.
Exit button Exit the Data Trace Recording Tool.
Exit the tool after the PLC completes tracing if the PLC is exe-
cuting tracing.

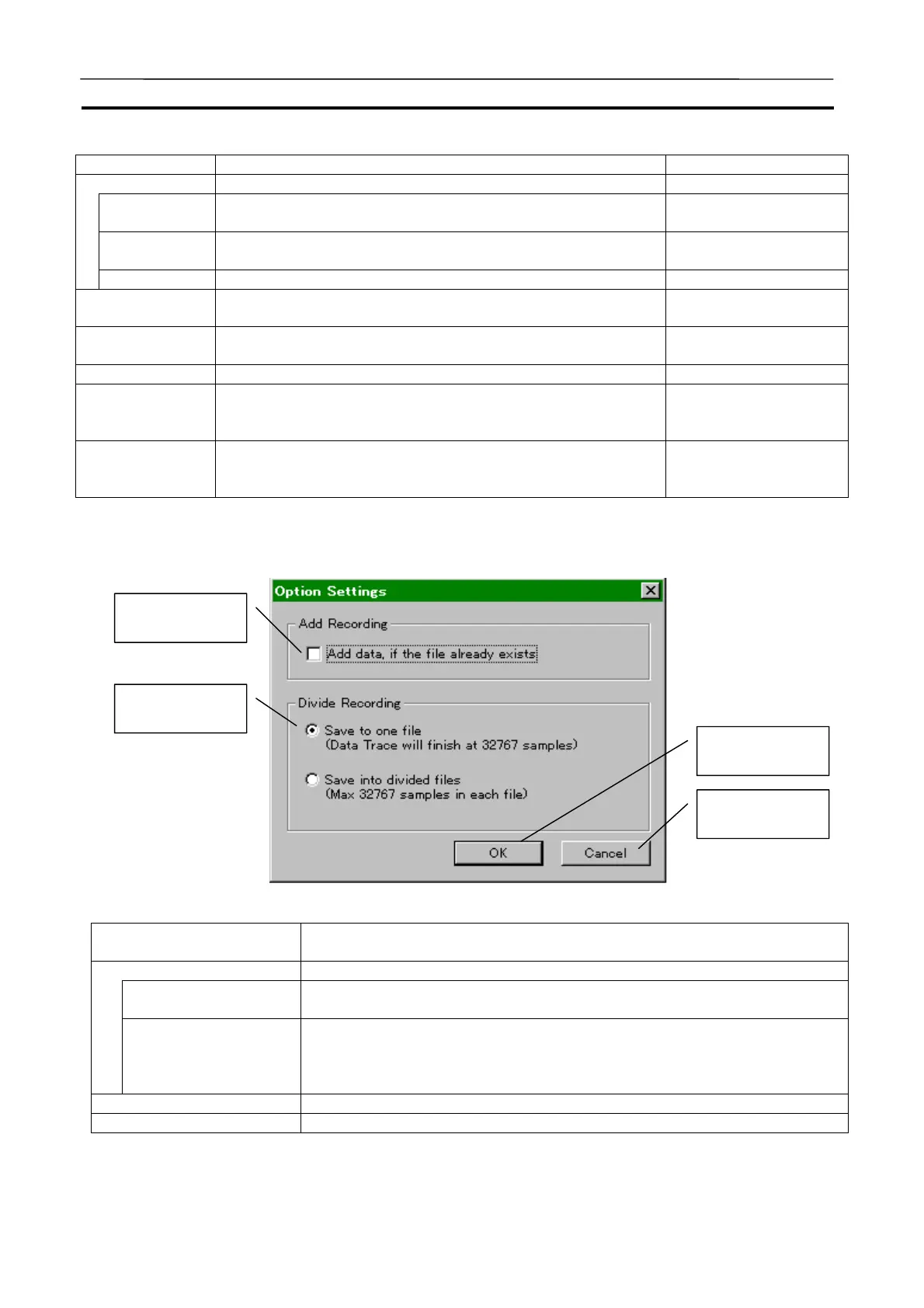

Option Settings
Add Recording If the file specified by the Trace Data Record File exists, the data will be ap-
pended to the file.
Divide Recording Specify whether the sampling data is to be saved to one file or multiple files.
Divide Recording not
used
Save the sampling data to one file, where the tracing ends automatically when
acquired 32,767 samples.
Divide Recording Divide and save the sampling data to multiple files. Change automatically to
the next file when acquired 32,767 samples.
Serial numbers will be attached to the end (excluding an extension) of the
specified file name.
OK button Register the option settings to close the dialog box.
Cancel button Close the dialog box without registering option settings.
Add Recording
Divide
Recording
OK button
Cancel button
