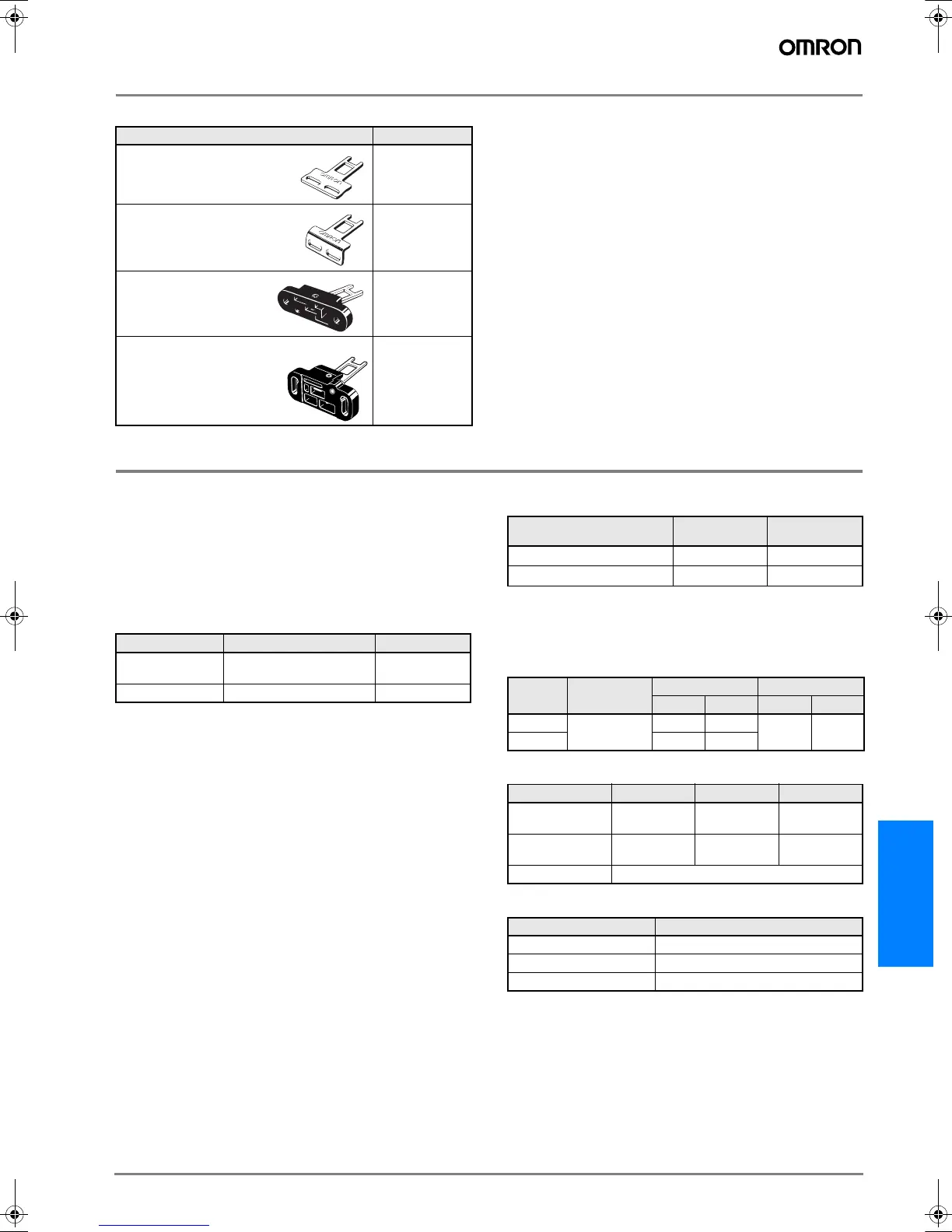

G-155D4NL
D4NL
Operation Keys
Specifications
Standards and EC Directives
Applicable EC Directives and Standards
• Machinery Directive
• Low Voltage Directive
• EN1088
• EN60204-1
• GS-ET-19
Approved Standards
Note: 1. Consult your OMRON representative for details.
2. Approval for CSA C22.2 No. 14 is authorized by the UL
mark.
Approved Standard Ratings
TÜV (EN60947-5-1)
Note: Use a 10-A fuse type gI or gG that conforms to IEC269 as a short-circuit
protection device. This fuse is not built into the Switch.
UL/CSA (UL508, CSA C22.2 No. 14)
A300
Solenoid Coil Characteristics
Indicator Characteristics
Type Model
D4DS-K1
D4DS-K2
D4DS-K3
D4DS-K5
Horizontal mounting
Vertical mounting
Adjustable mounting
(Horizontal)
Adjustable mounting
(Horizontal/Vertical)
Agency Standard File No.
TÜV Product
Service
EN60947-5-1 (approved
direct opening)
(See note 1.)
UL (See note 2.) UL508, CSA C22.2 No.14 E76675
Item
Utilization
category
AC-15 DC-13
Rated operating current (I
e
) 3 A 0.27 A
Rated operating voltage (U
e
) 240 V 250 V
Rated
voltage
Carry current Current Volt-amperes
Make Break Make Break
120 VAC 10 A 60 A 6 A 7,200 VA 720 VA
240 VAC 30 A 3 A
Item 24 VDC 110 VAC 230 VAC
Rated operating
voltage (100% ED)
24 VDC +10%/
−15%
110 VAC ±10% 230 VAC ±10%
Current consump-
tion
Approx.
200 mA
Approx. 50 mA Approx. 30 mA
Insulation Class F (130° C max.)
Item LED
Rated voltage 10 to 115 VAC/VDC
Current leakage Approx. 1 mA
Color (LED) Orange
F502-EN2-04.book Seite 155 Dienstag, 26. Juli 2005 5:48 17
