F3W-D
6
6

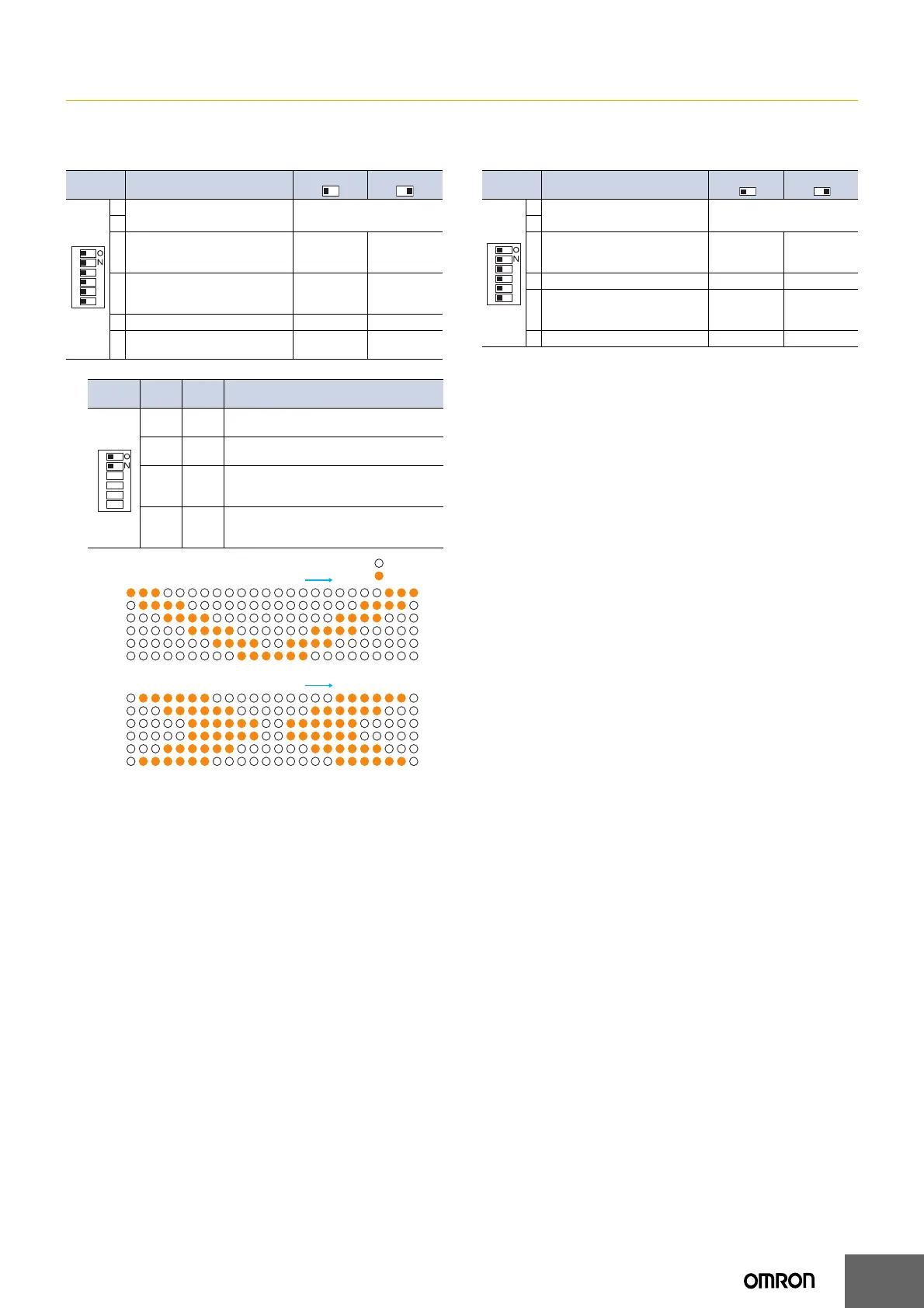

Setting Method
NPN Open-collector Output Models
DIP Switch 1 Mode Switching
Emitters
*1. DIP Switch 1 Picking Display Mode Setting
*2. The flashing speed can be changed in picking display mode (all flashing,
elevator-like lighting, or accordion-like lighting) or in external picking display
mode. The flashing speed varies with each display mode.
*3. This setting is supported for F3W-D052@P-L Emitters only.
*4. Mutual Interference Prevention Function:
The frequency selector is used to switch the emitting frequency between A
and B. Making the emitting frequencies of two Sensors different helps
prevent malfunction caused by mutual interference.
Receivers
DIP
switch 1
Function
OFF (left)
()
ON (right)
()
1
Flash Pattern
(picking display mode setting)
See table below. *1
2
3
Flash Time *2
(picking indicator flashing speed
setting)
Slow Fast
4
External Flash Pattern
(external picking display mode
setting) *3
Lit Flashing
5 Not used. --- ---
6 Frequency Setting *4
A
(frequency A)
B
(frequency B)
DIP
switch 1
SW
1-1
SW
1-2
Display mode
OFF OFF
All lighting
(All six indicators light.)
ON OFF
All flashing
(All six indictors flash simultaneously.)
OFF ON
Elevator-like lighting
(Two adjacent indicators simultaneously
light so that lighting moves up and down.)
ON ON
Accordion-like lighting
(Some or all indicators simultaneously light
so that lighting moves like an accordion.)
LED1
• Elevator-like Lighting Mode
LED2
LED3
LED4
LED5
LED6
Changes in Indicators
Not lit
Lit
LED1
• Accordion-like Lighting Mode
LED2
LED3
LED4
LED5
LED6
Changes in Indicators
DIP
switch 1
Function
OFF (left)
()
ON (right)
()
1
Flash Pattern
(picking display mode setting)
See table below. *1
2
3
Flash Time *2
(picking indicator flashing speed
setting)
Slow Fast
4 Operation mode setting Dark-ON Light-ON
5
Sensing distance (sensitivity)
setting
LONG
mode
(1 to 3 m)
SHORT
mode
(0.05 to 1 m)
6 NC --- ---
