10
E3MCE3MC

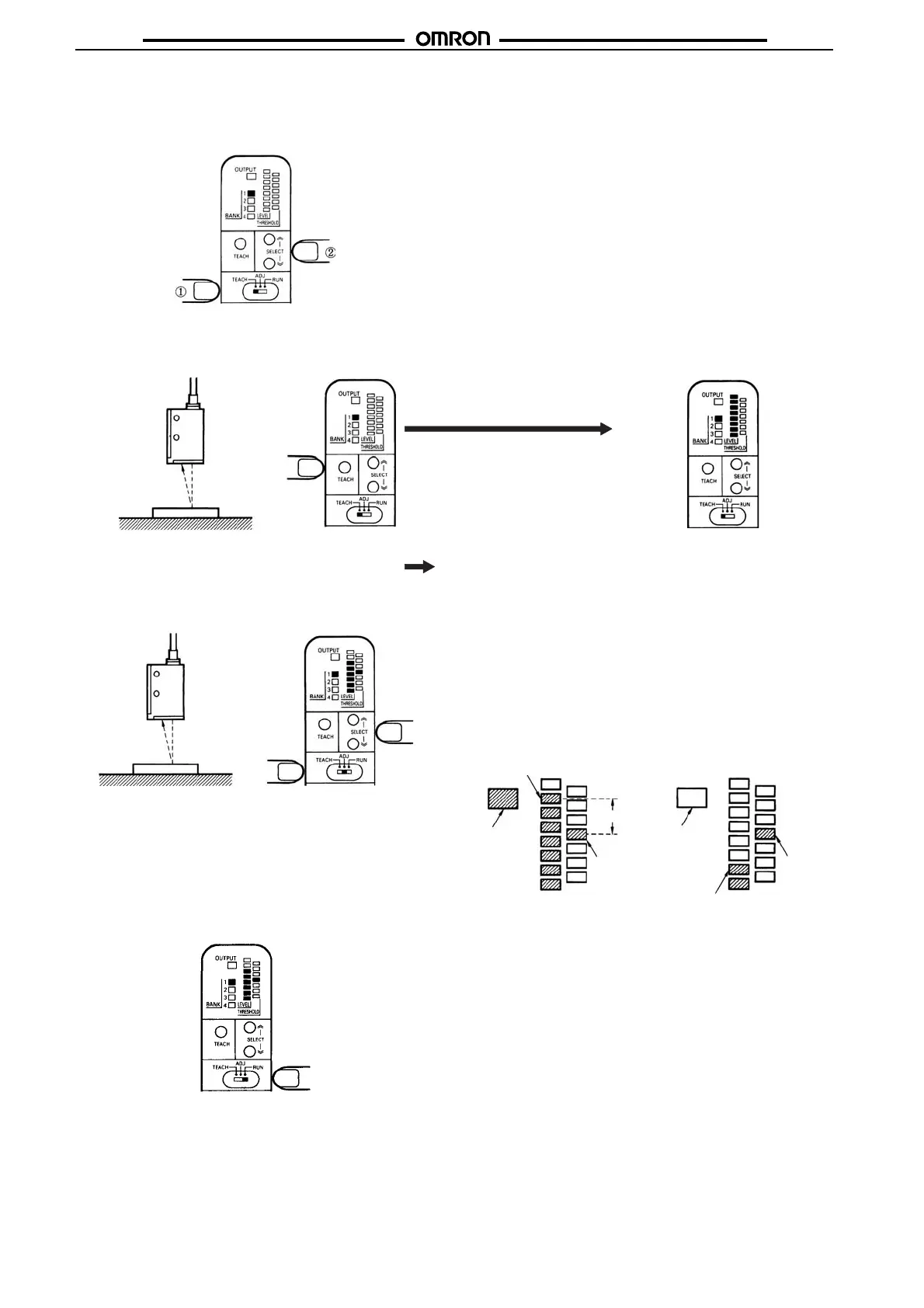

■ Settings
1-output Models (E3MC-A@@/E3MC-X@@/E3MC-Y@@)
1. Bank Selection
Set the Mode Selector to the TEACH mode and then select the
BANK using the SELECT button.
2. Color Registration
3. Threshold Adjustment (If Required)
Press the SELECT button in ADJ mode with or without the sens-
ing object located at the detection point. The bank selected in the
TEACH mode or RUN mode will become the bank for the ADJ
mode.
Detection Level and Tolerance
As the detected color becomes closer to the registered color, the
number of lit detection level indicators increase. The control out-
put of the E3MC will be ON if the detection level exceeds the
threshold level and OFF if the detection level does not exceed the
threshold level provided that the E3MC is in conformity output
mode.
Set the threshold to a higher level for highly-precise color discrim-
ination and to a lower level to ignore minor tint differences or dirt
retention.
4. Operation
The detection operation is performed in RUN mode. The regis-
tered color is selected with bank selection input.
The threshold is set to 4.
Registered object
OK
No Good
Sensor
Locate the registered object at the detection
point and press the TEACH button.
All the red threshold indicators
will flash if registration has not
been completed.
Refer to Technical Guide on
page 12.
All the detection level
indicators are ON.
Sensor
Sensing object
Detection level
Tolerance
Detection level
Operation
indicator: ON
Control output:
ON
Threshold
value
Operation
indicator: OFF
Control output:
OFF
Threshold
value
To Next Page
