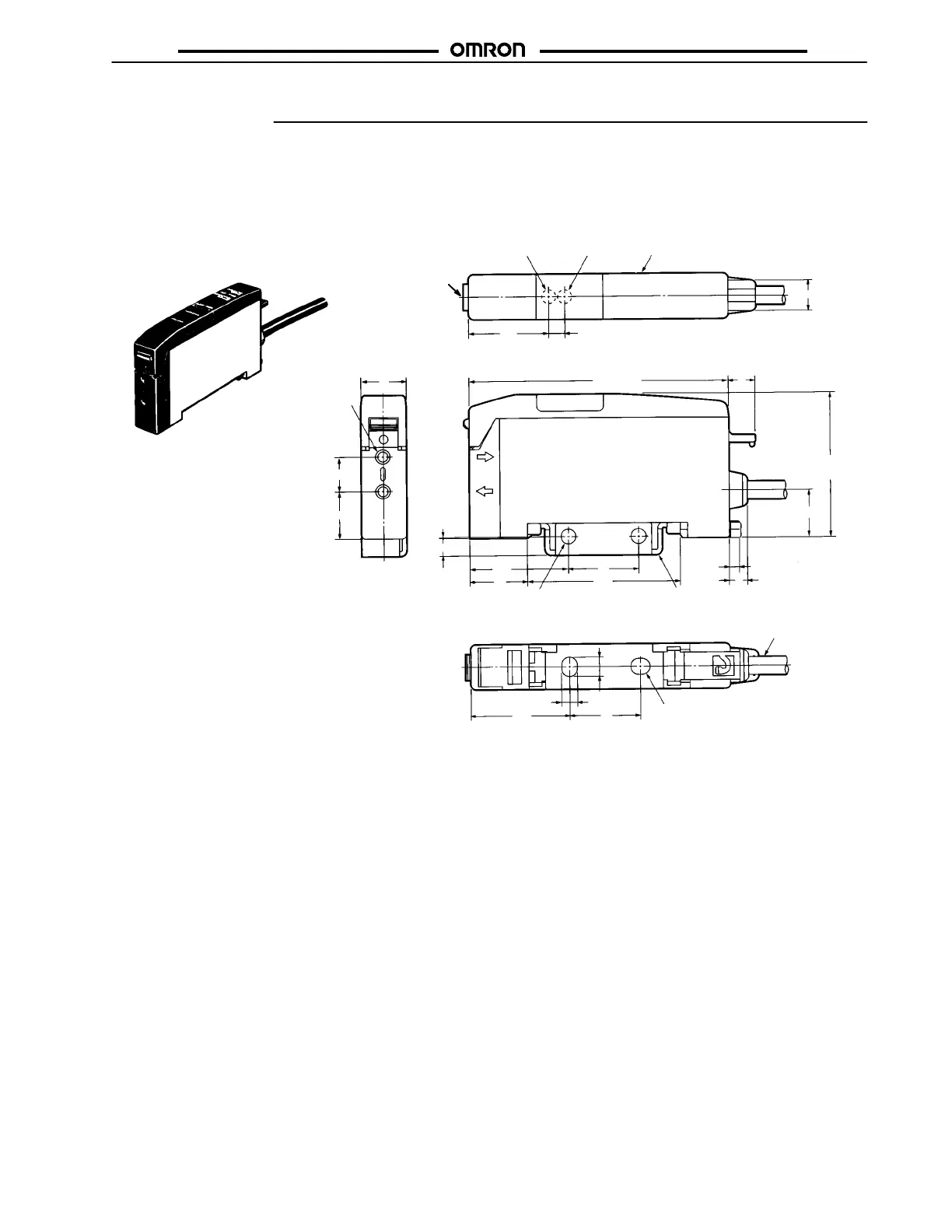

Dimensions
Unit: mm (inch)
 AMPLIFIER
E3X-NT11
E3X-NT21
E3X-NT41
E3X-NT51
Operation indicator Stability indicator
Two, 2.4 dia.
Two, 3.2-dia. holes
Mounting
bracket
Two, mounting holes
Vinyl insulated round cable:
2 m (6.56 ft), 4 mm OD)
The mounting bracket can
be attached to this side.
8
22.4
34.8
3.5
7
59 (2.32)
6
18.3
Fiber cable
lever lock
10.7
10
(0.39)
4.1
13
0.2
16
4
2.4
10.75
32.5
(1.28)
22.4
(0.88)
16
(0.63)
4.4
3.4

Omron E3X-N Specifications

General

Output Current	100 mA max.
Protection Circuit	Reverse polarity protection, output short-circuit protection
Type	Fiber Amplifier
Light Source	Red LED
Power Supply Voltage	12-24 VDC ±10%
Output Type	NPN
Connection Type	2m cable
Housing Material	ABS
Operating Temperature	-25 to 55°C (with no icing or condensation)
