E3X-SD/-NA
6

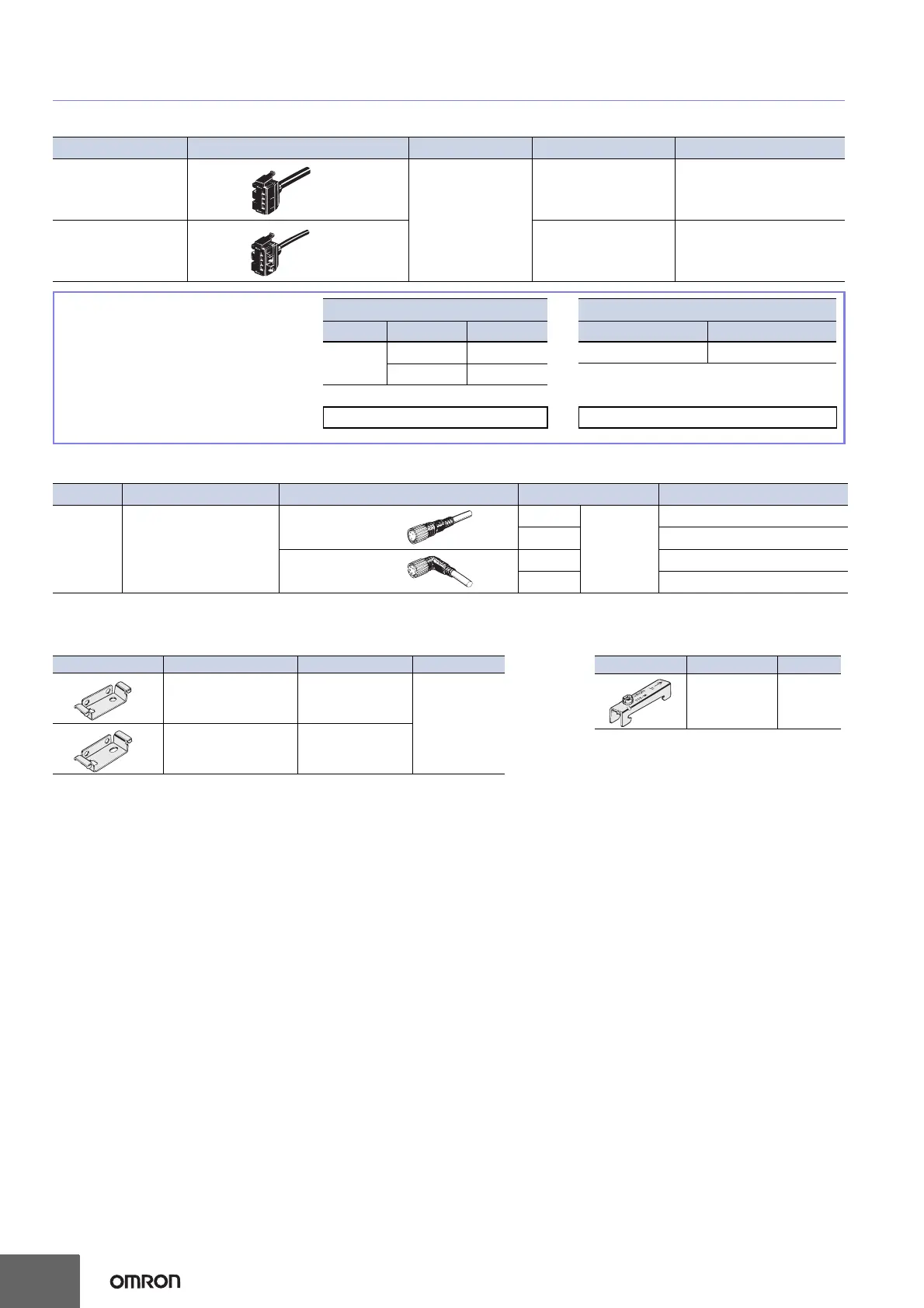

Amplifier Unit Connectors (Order Separately) Note: Stickers for Connectors are included as accessories.
Sensor I/O Connectors (Order Separately)
Accessories (Order Separately)
Item Appearance Cable length No. of conductors Model
Master Connector
2 m
3 E3X-CN11
Slave Connector 1 E3X-CN12
Size Cable specifications Appearance Cable type Model
M8 Standard cable
2 m
Four-
conductor
cable
XS3F-M421-402-A
5 m XS3F-M421-405-A
2 m XS3F-M422-402-A
5 m XS3F-M422-405-A
Combining Amplifier Units and
Connectors
Amplifier Units Applicable Connectors (Order Separately)
Type NPN PNP
+
Master Connector Slave Connector
(Basically, Amplifier Units and Connectors are sold
separately)
Refer to the following tables when placing an order.
Standard
models
E3X-SD6 E3X-SD8 E3X-CN11 (3-wire) E3X-CN12 (1-wire)
E3X-NA6 E3X-NA8
When Using 5 Amplifier Units
5 Amplifier Units
+
1 Master Connector + 4 Slave Connectors
Straight
connector
L-shaped
connector
Mounting Brackets
Appearance Applicable models Model Quantity
E3X-SD@
E3X-NA@
E3X-NA@F
E39-L143
1
E3X-NA@V E39-L148
End Plate
Appearance Model Quantity
PFP-M 1
