E3X-N
E3X-N
12

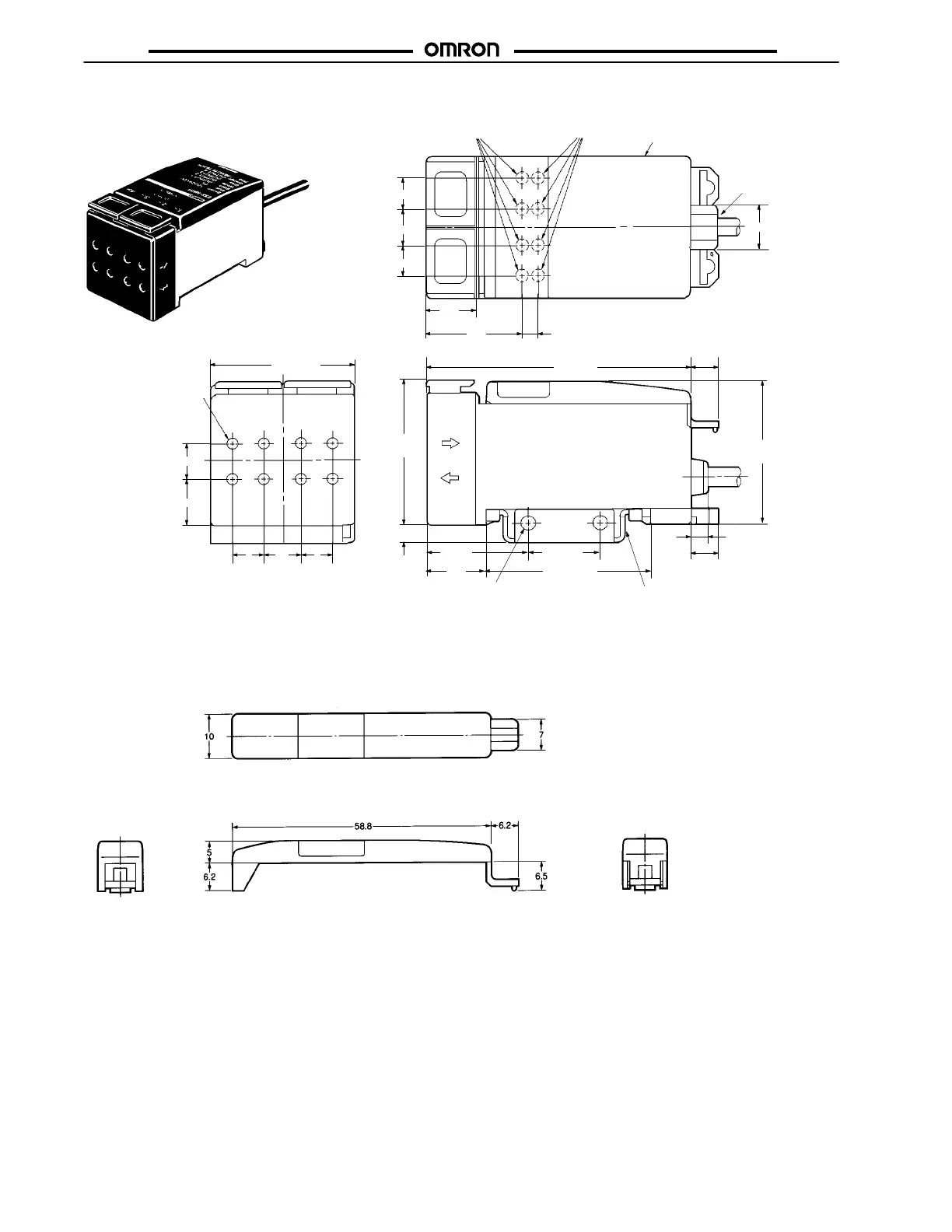

E3X-NM11
E3X-NM41
Operation indicator Stability indicator
The mounting bracket can
be attached to this side.
10
7
7
8.3
10.8
21.4
3.5
32.2 (1.27)
Eight, 2.4 dia.
8
10.7
7 8.3 7
59 (2.32)
6.2
33
(1.30)
4.1
22.4
(0.88)
16 (0.63)
Mounting
bracket
3.8
6.1
32.5
(1.28)
Two, 3.2-dia. holes
34.8 (1.37)13
Vinyl insulated
round cable: 2 m
(6.56 ft), 4 mm OD
 ACCESSORIES
E39-G8 Replacement Protective Cover for E3X-NT
