E3X-N
E3X-N
7

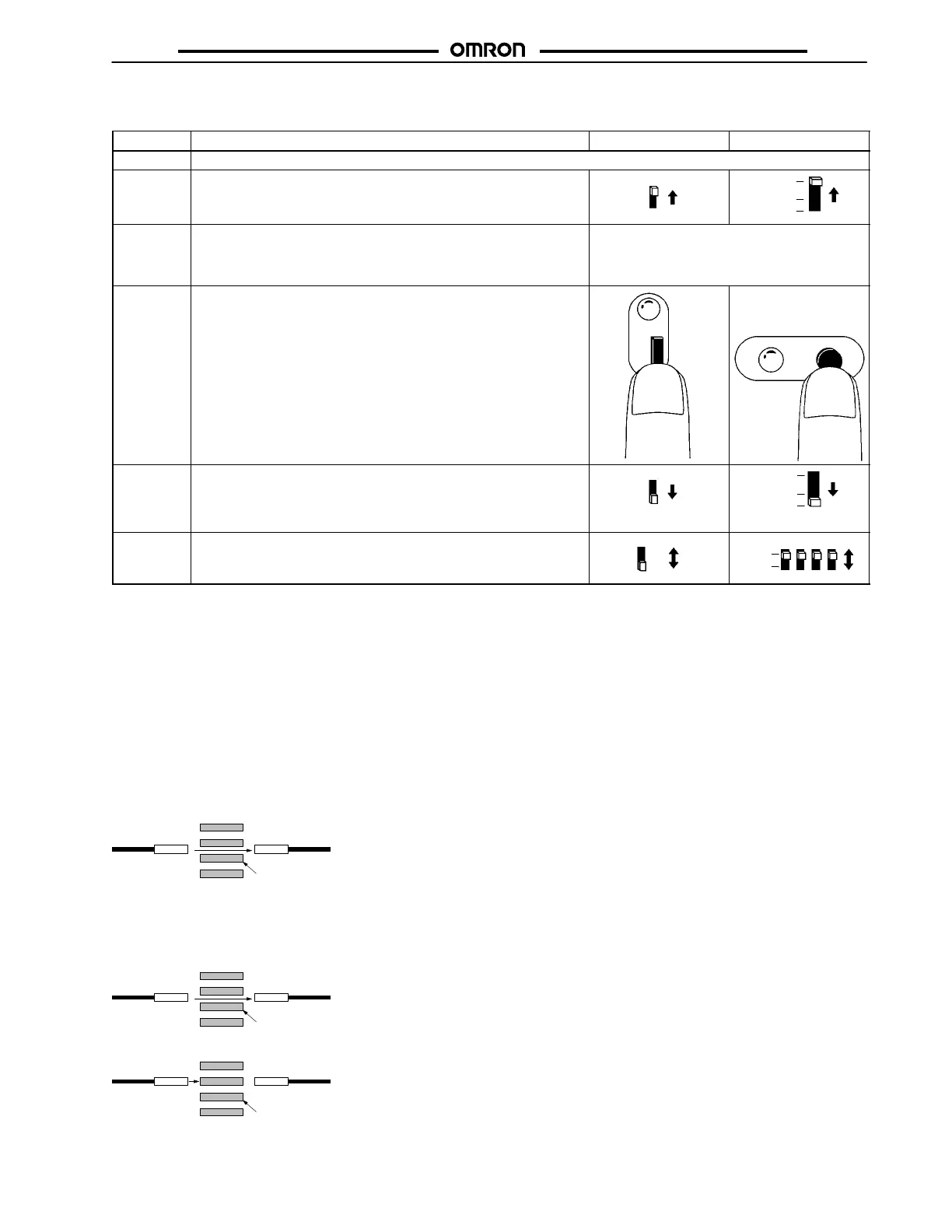

NO-OBJECT TEACHING
Procedure Operation E3X-NT E3X-NM
1
Locate the sensor head within the rated sensing range with the E3X-N.
2 Set the mode selector to TEACH.
TEACH
RUN
TEACH
TIMER
SET
RUN
3
The flashing function of the E3X-N will be activated. Therefore,
adjust the optical axes so that the tip of the emitting fiber will be lit. If
the optical axes are divergent, the tip of the emitting fiber will flash
and the built-in buzzer of the E3X-N will beep.
---
4 Press the teaching button for 0.5 to 2.5 seconds without a sensing
object. In the case the E3X-NM, select a channel with the channel
selector and press the teaching button, at which time the stability
indicator for the selected channel will flash.
The teaching indicator (red) is lit.
The built-in buzzer beeps once.
TEACH
TEACH
5 Set the mode selector to RUN. No-object teaching will be set when
the first sensing object passes through the sensing area.
The teaching indicator (red) turns green (automatically turned off in
one second).
TEACH
RUN
TEACH
TIMER
SET
RUN
6 Select the logical output required with the operation mode selector.
L
D
ON
ON
1234
L ON
D ON
CH
Note: 1. To detect dark objects in front of bright backgrounds, set the operation mode selector to D. ON.
2. If the set distance is very short (i.e., 0 to 12 mm for the E32-TC200 and 0 to 4 mm for the E32-DC200), no-object teaching is
not possible due to excessive light, in which case, perform with/without-object teaching.
3. If the teaching button is pressed for more than three seconds, the sensitivity of the E3X-N will be set to maximum, at which
time the green indicator will be lit.
4. The E3X-N will be ready to detect objects in approximately one second after the mode selector is set to RUN.
SENSITIVITY ADJUSTMENT
Combination of the E3X-NT/E3X-NM and Fine Through-beam Fiber Units (E32-T22S/T24S/T84S)
No-object Teaching
Press the teaching button once with no object in the sensing area.
Object
Note: If detection is not stable after no-object teaching, perform
with/without-object teaching.
With/Without-object Teaching
Press the teaching button once with no object in the sensing area.
Object
Press the teaching button once again with an object in the sensing area.
Object
To Next Page
