E3ZM-V
8
.

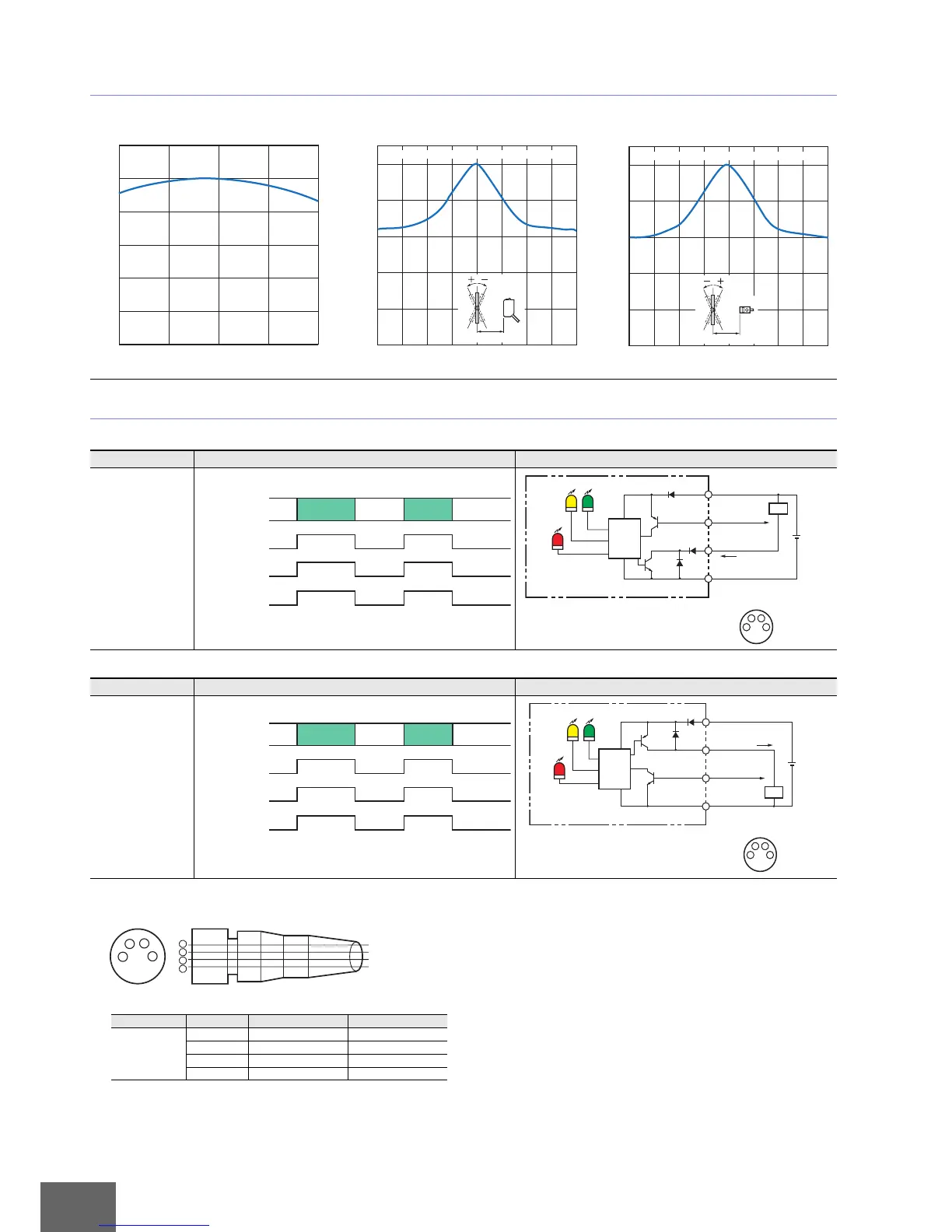

I/O Circuit Diagrams
NPN Output
PNP Output
Plugs (Sensor I/O Connectors)
● Excess Gain vs. Distance ● Angle vs. Incident Characteristics
E3ZM-V@@ E3ZM-V@@ E3ZM-V@@
Model Timing charts Output circuit
E3ZM-V61
E3ZM-V66
Model Timing charts Output circuit
E3ZM-V81
E3ZM-V86
10 11 12 13 14
100
80
60
40
20
Incident light (%)
Distance (mm)
0
120
Incident light (%)
−20 −15 −10 −5 0 5 10 15 20
Angle (°)
100
80
60
40
20
0
Teaching ON for white and OFF for black at 12 mm
12 mm
100
80
60
40
20
0
Teaching ON for white and OFF for black at 12 mm
12 mm
Incident light (%)
−20 −15 −10 −5 0 5 10 15 20
Angle (°)
Color taught
2nd
Between brown (1)
and black (4) leads
Color taught
1st
Color taught
2nd
Color taught
1st
ON
OFF
ON
OFF
Operate
Reset
Sensing object
Operation
indicator
(yellow)
Output
transistor
Load
(e.g., relay)
Control output
Remote control input
1
2
4
3
10 to
30 VDC
Brown
Black
Blue
Pink
Operation
indicator
(yellow)
Stability
indicator
(green)
Teaching
indicator
(red)
Photo-
electric
Sensor
Main
Circuit
Load
2
4
1
3
1
2
3
4
Brown
White
Blue
Black
Wire color
XS3F-E421-402-A
XS3F-E421-405-A
XS3F-E422-402-A
XS3F-E422-405-A
Note: The above M8 Connectors made by OMRON are IP67.
Do not use them in an environment where IP69K is required.
Classification Wire color Connector pin No. Application
DC
Brown 1 Power supply (+V)
White 2 Remote control input
Blue 3 Power supply (0 V)
Black 4 Output
