Omron E4C-UDA User Manual

- 10 -

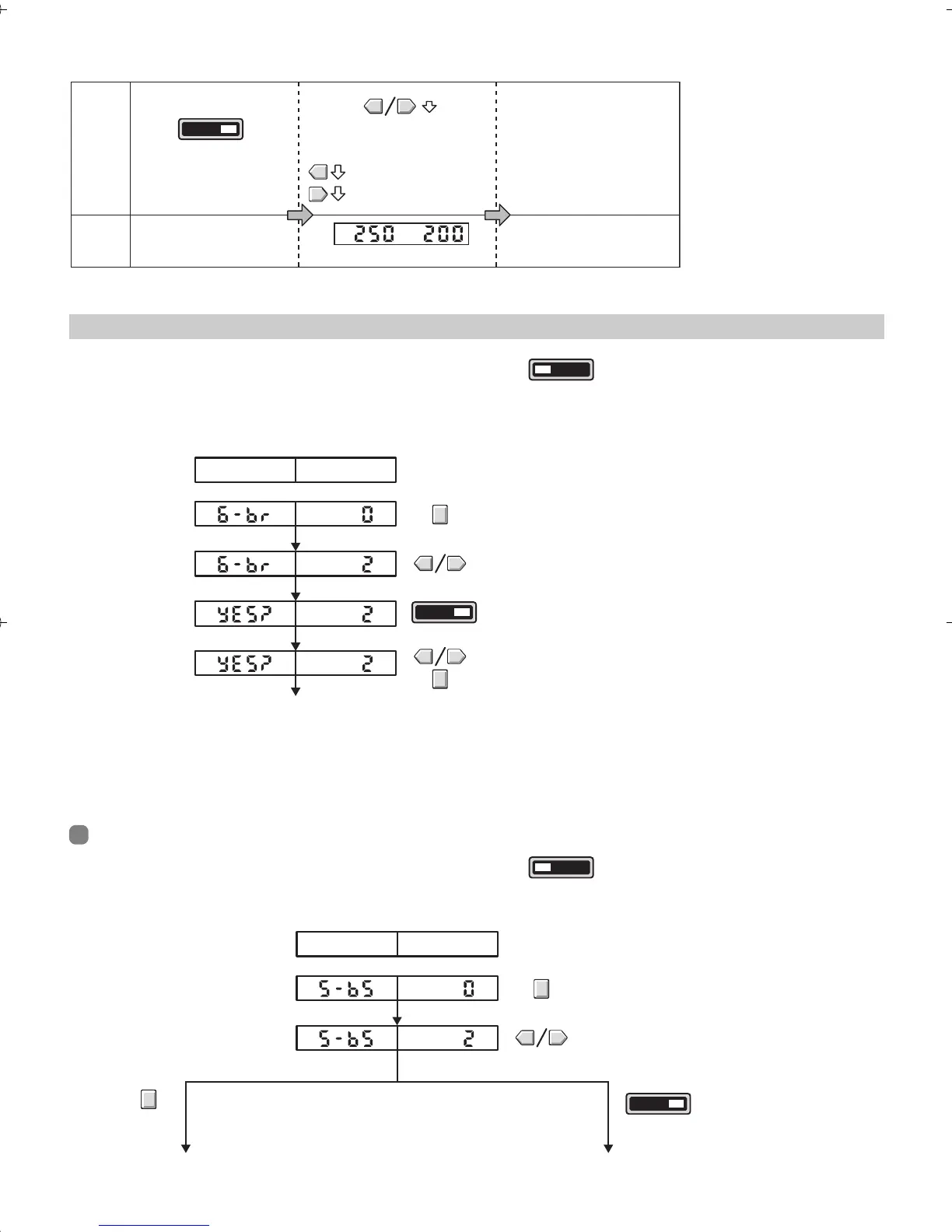

2) Manual setting
Manually set the threshold value.
Switch the SET/RUN switch to SET and register by following the
procedure below.
JRegistration procedure
Selecting bank information
Switch the SET/RUN switch to SET and select the bank
information by following the procedure below.
JSelection procedure
4. Setting Banks
Switch to the RUN mode.
Increments the threshold value.
Decrements the threshold value.
Set the threshold value by
the UP or DOWN key.
Operation
Display
RUNSET
After about 3 seconds, the display returns
to the display set in the display setup.
Threshold value
Sensing distance
RU
N
SET
The dis
p
la
y
returns to re
g
ular measurement.
RUNSET
Sub-display:Main display:
Select [6-BR] by the MODE key.
Select the desired bank No. (0 to 3) by the UP or DOWN key.
(In this example, bank 2 is selected.)
Switch the SET/RUN switch to RUN.
Select YES by the UP or DOWN key,
and then press the MODE key to complete registration.
Note: If you perform the following at this stage,
registration is canceled.
• Select NO and press the MODE key.
• Set the SET/RUN switch to SET without
pressing the MODE key.
RU
N
SET
RUNSET
Sub-display:Main display:
Select [5-BS] by the MODE key.
Select the desired bank No. (0 to 3) by the UP or DOWN key.
(In this example, bank 2 is selected.)
Switch the SET/RUN switch to RUN.
Registration is completed, and the display returns to regular measurement.
Press the MODE key.
Selection is completed, and the display moves to [6-BR].
(
Refer to "Function Transition Charts in "5. Function Overview."
)
1636705-7A_e4c-uda_E.fm 10 ページ ２００５年１１月１５日 火曜日 午後４時５８分
