- 11 -
JSetting procedure
Note: The scalable width is 1/2 to 2 times the current distance value.
Note: When the values of the first and second points are the same, "NEAR" flashes twice on the error display, and the points
must be set again.
Note: "OVER" is sometimes displayed and the setting cannot be made depending on the setting value. In this case, change
and then set the setting value again.

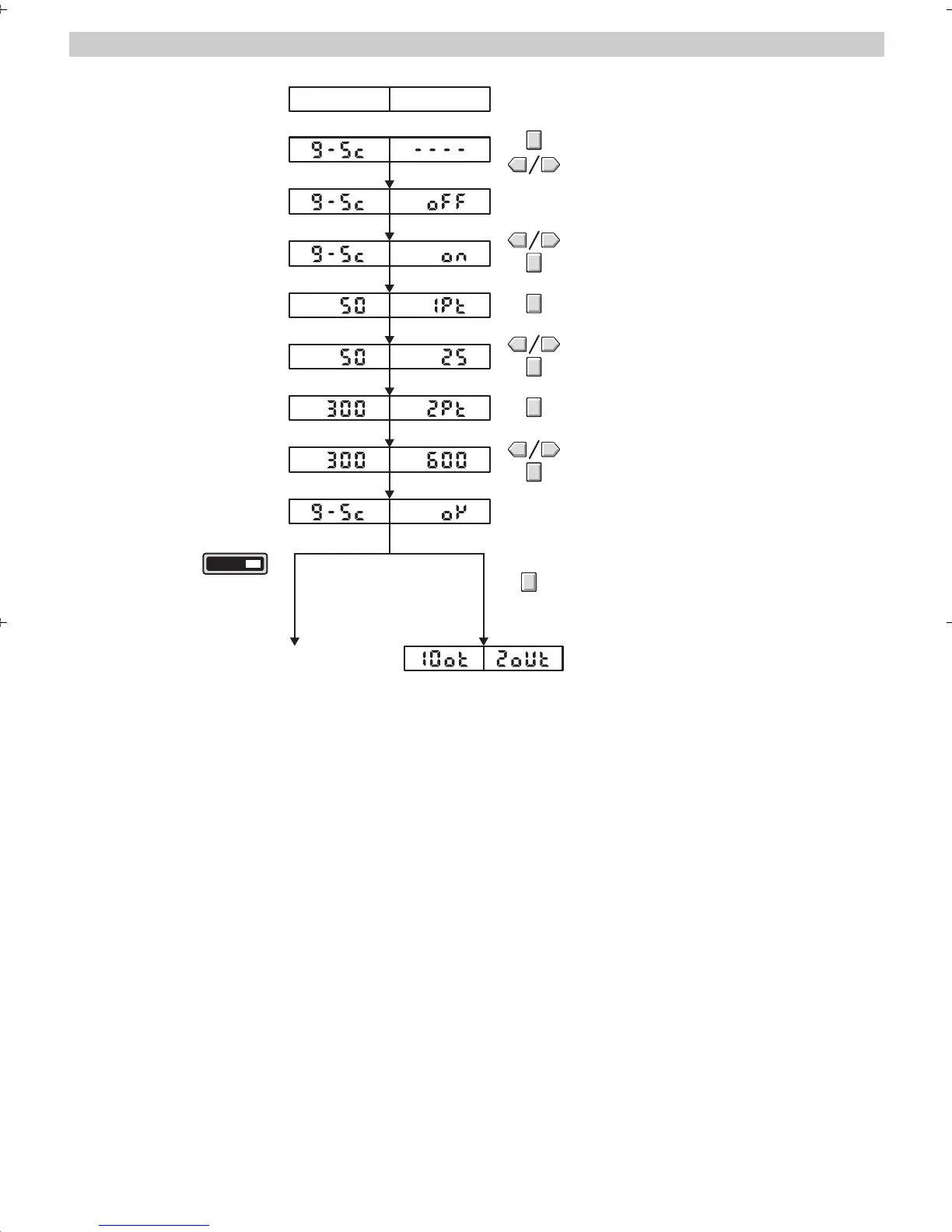

5. Setting Scaling
Place the workpiece at the first point,
and press the MODE key.
Select [9-SC] by the MODE key,
and then press the UP or DOWN key once.
Displays the current scaling execution state.
Press the UP or DOWN key to select "ON",
and press the MODE key to apply the setting.
Press the UP or DOWN key to set the distance,
and press the MODE key to apply the setting.
Place the workpiece at the second point,
and press the MODE key.
Press the UP or DOWN key to set the distance,
and press the MODE key to apply the setting.
Sub-display:Main display:
(The display flashes twice.)
(This display example is for a twin output model.)
The display moves to the next setting.
This completes setting, and the display
returns to regular measurement.
Switch the SET/RUN switch
to RUN.
Press the MODE key.
RUNSET
