E5@C Digital Temperature Controllers User’s Manual (H174)
A-1 Specifications
A
A-1-7 Connector Cover of the Terminal Unit (models with Push-in Plus Terminal Blocks)
 For a male connector cover
 For a female connector cover

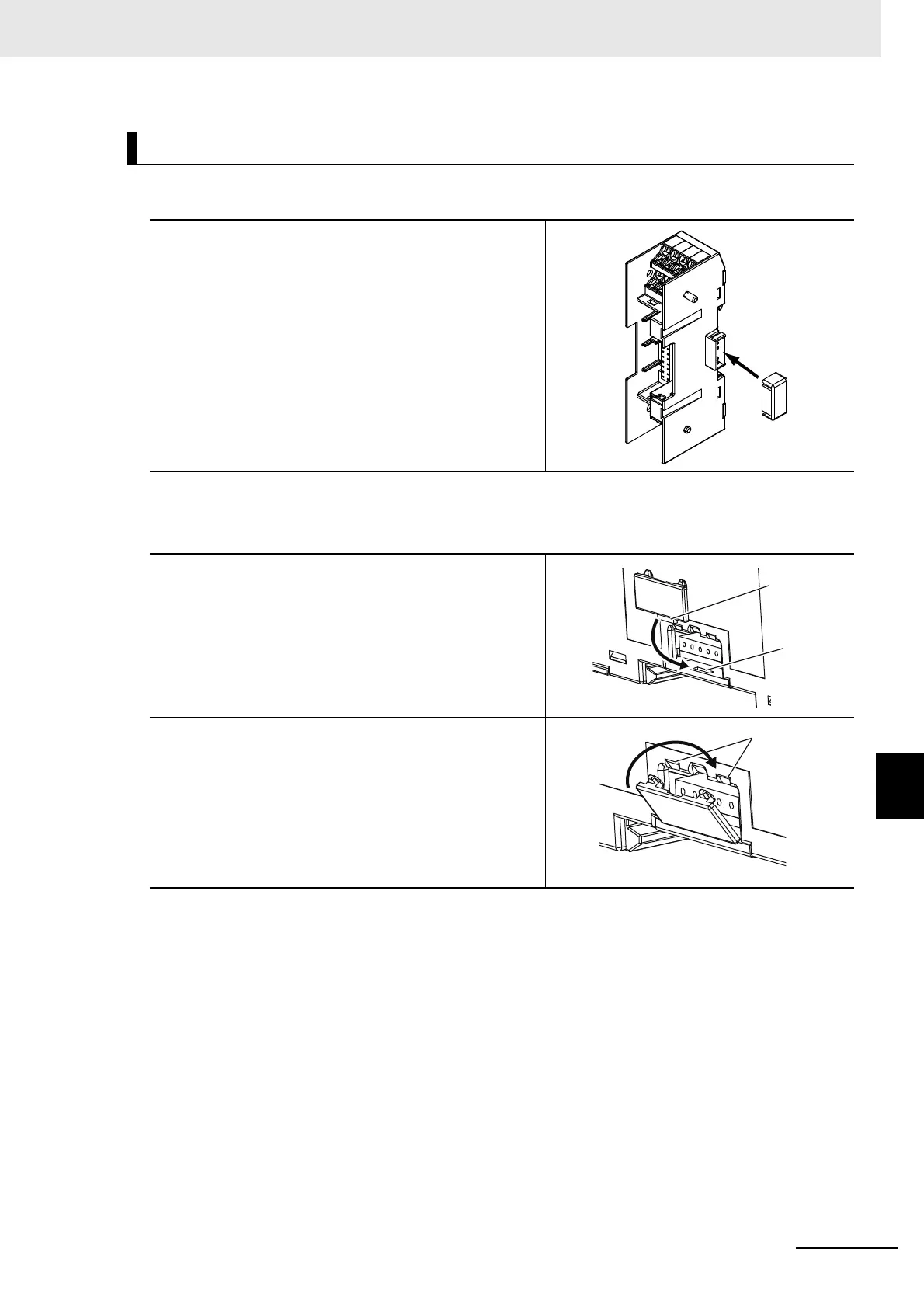

Attaching the Connector Covers
1 Attach the connector cover until the claws on
the connector cover fit into the connector with
a click sound.
A male connector does not have an up/down
direction.
1 Insert the projection on the female connector
cover into the groove on the Terminal Unit.
2 Attach the female connector cover until the
claws on the connector cover fit into the
notched part of the Terminal Unit with a click
sound.
Projection
groove
Notched part

Omron E5AC Specifications

General

Mounting Type	Panel Mount
Sampling Period	50 ms
Protection structure	IP66 (front panel)
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Control Output	Relay, voltage, current
Dimensions	96 x 96 mm
Display Type	LCD
Number of Displays	2
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
