Omron E5AC User Manual

2 Preparations
2 - 10
E5@C Digital Temperature Controllers User’s Manual (H174)
 Mounting the Terminal Cover (E5CC Only)

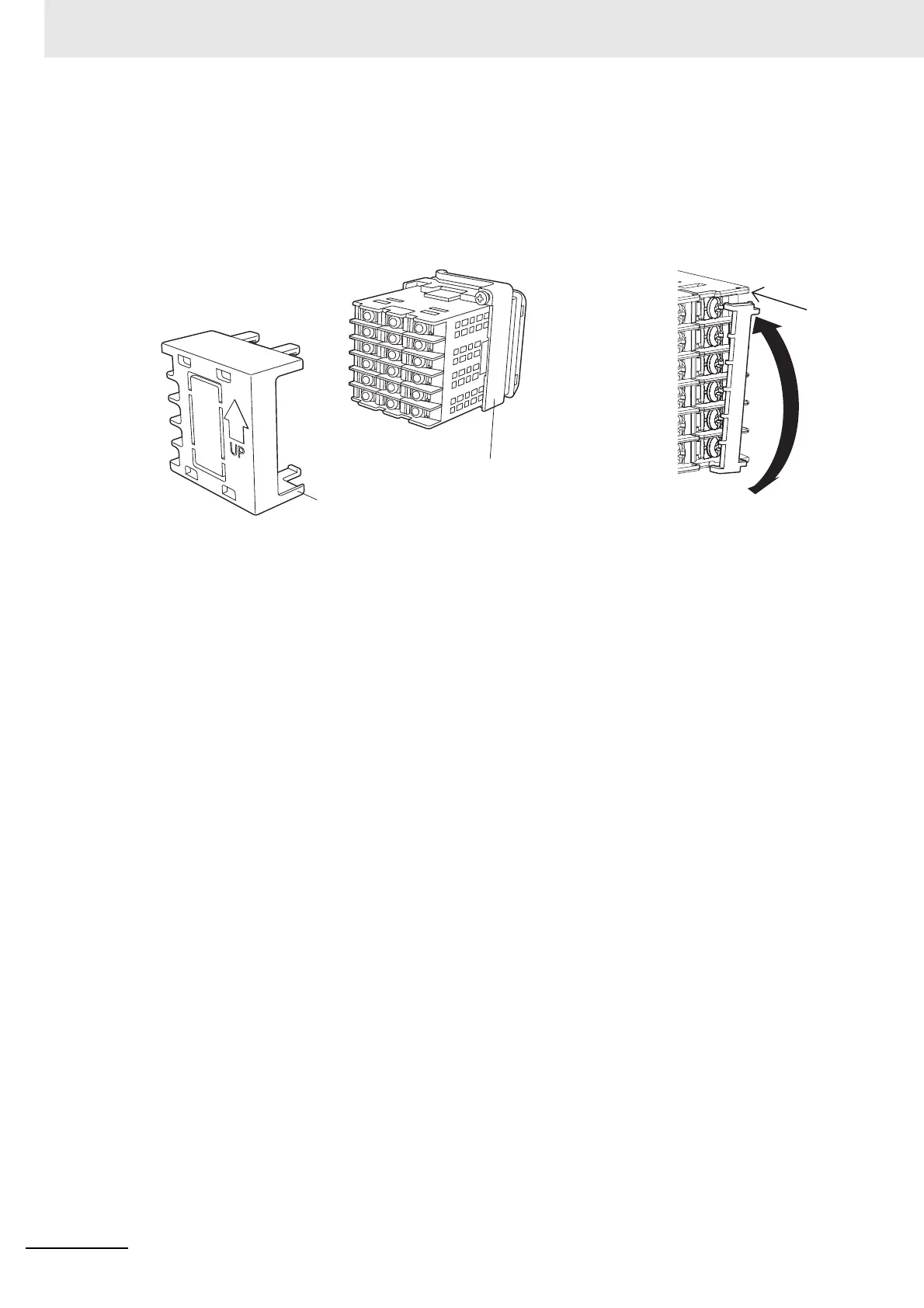

Slightly bend the E53-COV23 Terminal Cover to attach it to the terminal block as shown in the following
diagram. The Terminal Cover cannot be attached in the opposite direction. Or, you can use the E53-COV17
Terminal Cover. Make sure that the “UP” mark is facing up, and then attach the E53-COV17 Terminal Cover to
the holes on the top and bottom of the Digital Controller.
Terminal Cover
(E53-COV17)
(Sold separately.)
Adapter
• E53-COV17 • E53-COV23
Enlarged Illustration of
Terminal Section

Omron E5AC Specifications

General

Mounting Type	Panel Mount
Sampling Period	50 ms
Protection structure	IP66 (front panel)
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Control Output	Relay, voltage, current
Dimensions	96 x 96 mm
Display Type	LCD
Number of Displays	2
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
