Omron E5AC User Manual

2 - 53
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2

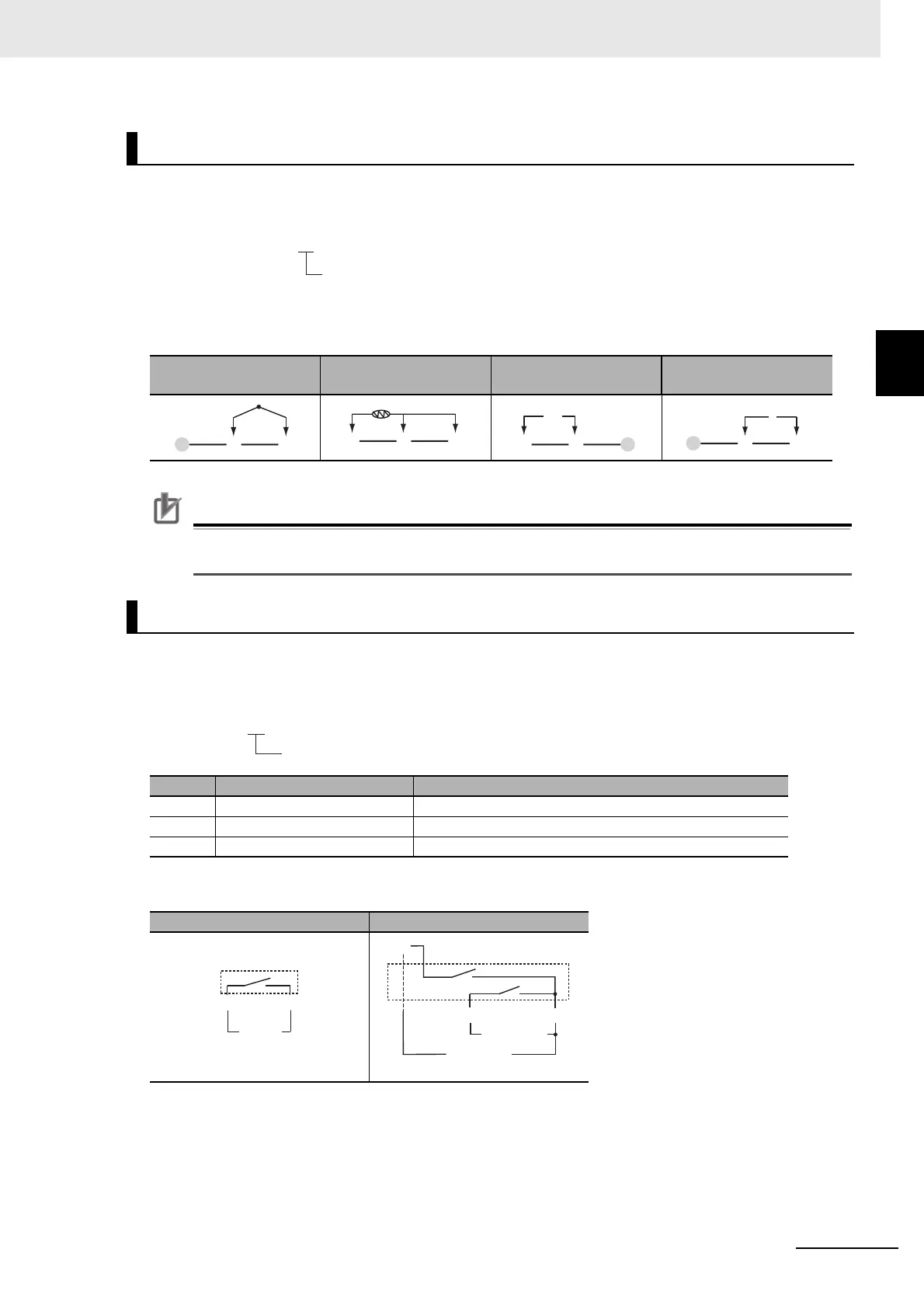

2-2-8 E5GC Terminal Block Wiring Example
 Model Numbers
All E5GC models have universal sensor inputs, so the code in the model number is always “M.”
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable is longer than 30 m, the EMC standards will not be satisfied.
 Model Numbers
The number of auxiliary outputs on the E5GC is given in the following location in the model number.
 Terminal Details
Sensor Input
TC (thermocouple)
Pt (resistance
thermometer)
I (current) V (voltage)
Auxiliary Outputs
Code Auxiliary outputs Specification
0 None None
1 Model with 1 auxiliary output SPST-NO, 250 VAC, 2 A
2 Model with 2 auxiliary outputs SPST-NO, 250 VAC, 2 A
Model with 1 auxiliary output Model with 2 auxiliary outputs
E5GC-@@ @ @ @ M-@@@
Sensor input
−
+
KJL
ABB
KJL
mA
−
+
KJL
V
−
+
KJL
E5GC-@@ @ @ @ M-@@@
No. of auxiliary outputs
Auxiliary
output 1
EF
Auxiliary
output 1
Auxiliary
output 2
I
EF

Omron E5AC Specifications

General

Mounting Type	Panel Mount
Sampling Period	50 ms
Protection structure	IP66 (front panel)
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Control Output	Relay, voltage, current
Dimensions	96 x 96 mm
Display Type	LCD
Number of Displays	2
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25% to 85% RH
