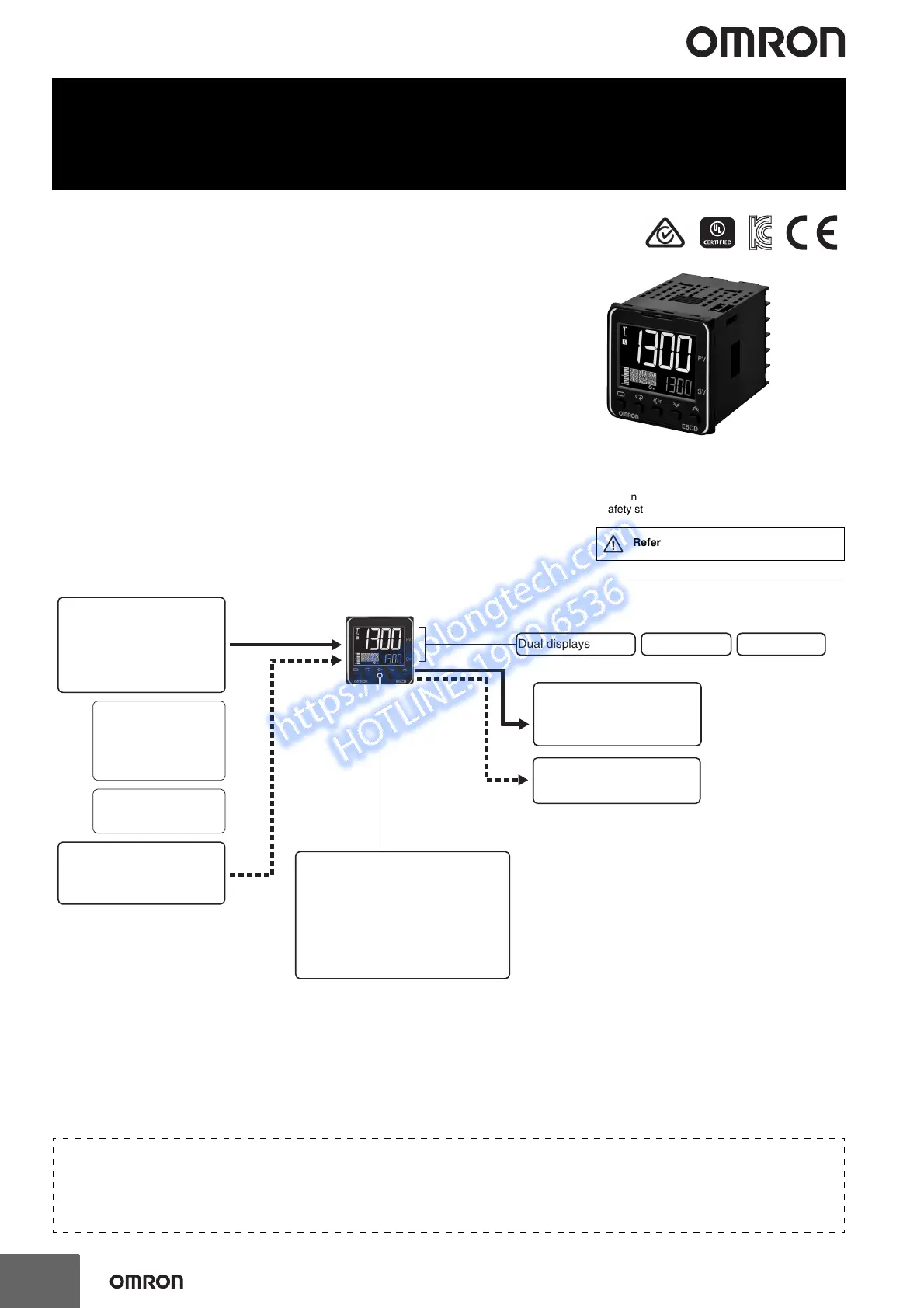

Digital Temperature Controller (Simple Type)
E5CD-800
(48 × 48 mm)
Optimize Control by Detecting Status Changes.
Easily Satisfy Both Productivity and Quality.
• Automatic optimization of control for changes in systems (Adaptive
Control).
• Functions specialized for packaging machines
(Temperature Sensors for Packaging Machines and Automatic Filter
Adjustment).
• Function specialized for water-cooled extruders (Water-cooling
Output Adjustment).
• Indication data (Power ON Time, Ambient Temperature, and Output
ON/OFF Count).
• Basic performance is same as the E5C-800 standard models.
• Draw-out structure for easy maintenance.
Main I/O Functions
48 × 48 mm
E5CD-800
Refer to Safety Precautions on 39.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Auxiliary Outputs
• 2 independent outputs
Bar displays *
E5CD-800
• Adaptive Control
• Automatic Filter Adjustment
• Water-cooling Output Adjustment
• Indication Data
Power ON Time
Ambient Temperature
Output ON/OFF Count
Sensor Input
Dual displays: PV/SV
4-digit displays
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input
±0.3%PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of
FS
Sampling Period
• 50 ms
Control Output 1
• Relay output
• Voltage output
(for driving SSR)
Serial Communications
• None
• RS-485
* The default value is heater current.
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
E5@D Digital Temperature Controllers User’s Manual (Cat. No. H224)
E5@D Digital Temperature Controllers Communications Manual (Cat. No. H225)
