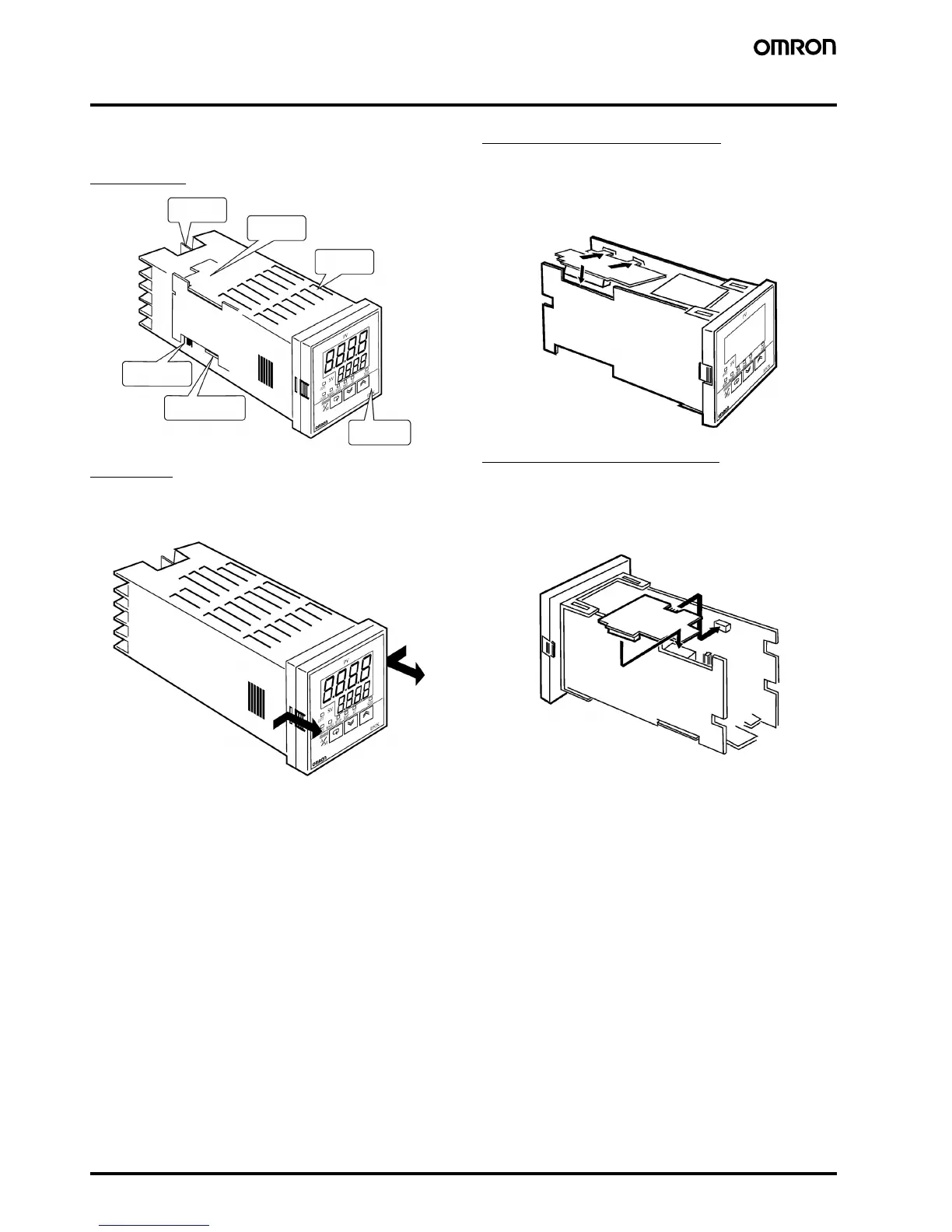

I-70 Digital Controller E5CK
Installation
Installation
Main Parts
Draw-out
First, draw out the internal mechanism from the housing.
Pull out the internal mechanism while pressing the hooks on the left
and right sides of the front panel.
Setting Up the Output Unit
1. Two rectangular holes are provided on the power board (right side
of Controller). Fit the two protrusions of the Output Unit into these
two holes.
2. With the Output Unit fitted into the power board, fit the Output Unit
into the connector on the control board (left side of Controller).
Setting Up the Option Unit
1. Place the Controller with its bottom facing up, and fit the board
horizontally into the Connector on the power board (right side of
controller).
2. With the power board connected, fit the board vertically into the
Connector on the control board (left side of controller).
Terminals
Output Unit
Rear case
Front panel
Option Unit
Input type jump-
er connector
1
2
1
2

Other manuals for Omron E5CK

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Omron E5CK and is the answer not in the manual?

Omron E5CK Specifications

General IconGeneral
Ambient Operating Temperature-10 to 55°C
Protection RatingIP20
Control TypePID
Input TypeThermocouple, RTD
Output TypeRelay, Voltage, Current
Power Supply Voltage100 to 240 VAC
Mounting TypePanel
Display TypeDigital
Control OutputRelay, Voltage, Current
Alarm OutputRelay
Dimensions48 x 48 x 78 mm
Ambient Operating Humidity25% to 85% RH
