Omron E5CZ Manual

Digital Position-Proportional Controllers E5EZ-PRR 51
Meeting all of your temperature control needs in a wide
range of applications

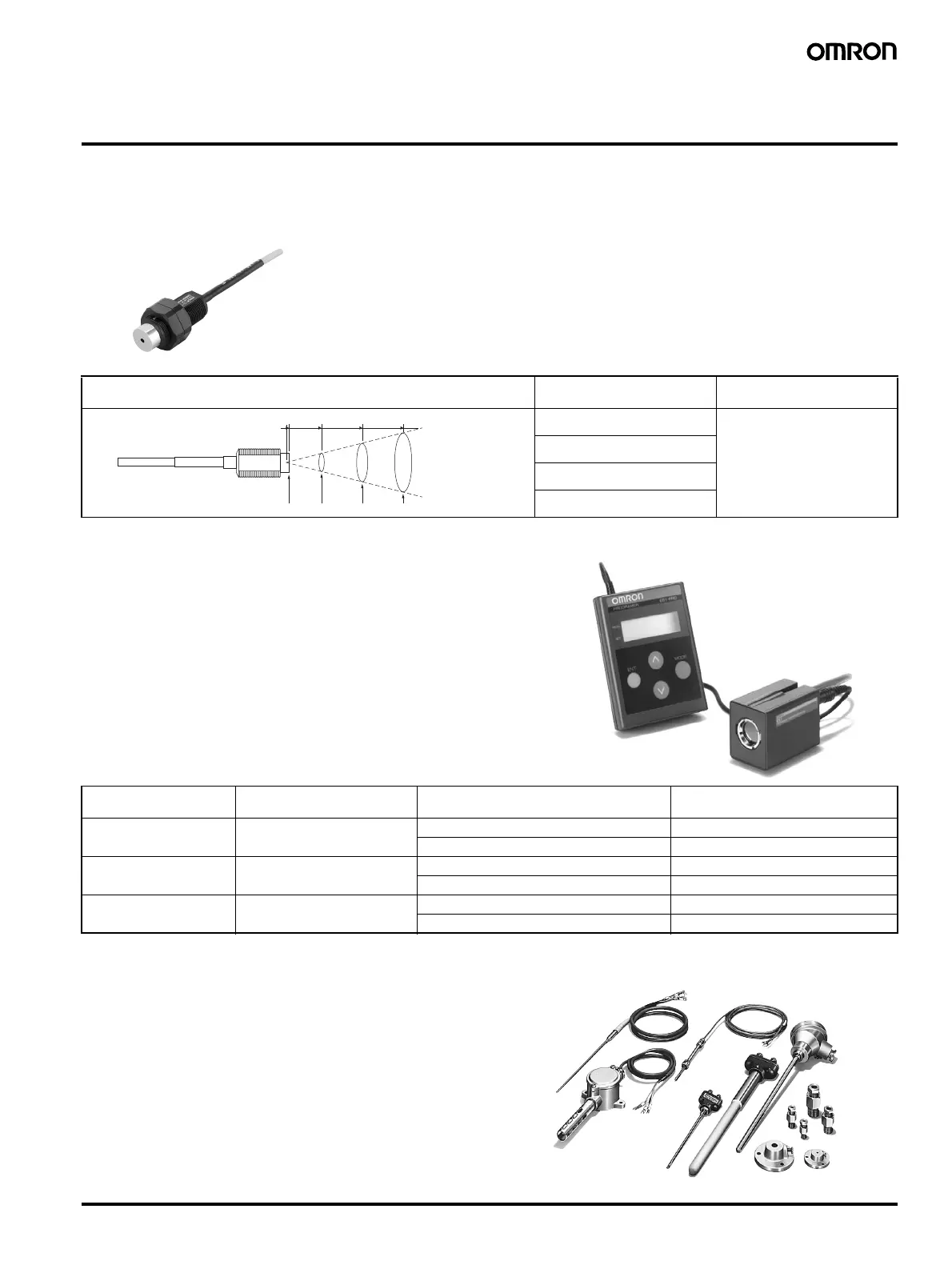

■ ES1B Infrared Temperature Sensor
Perform measurements with a contract-free sensor at minimal costs!
• Outputs electromotive forces identical to those of thermocouples, so
that it can be connected directly to temperature controllers that gen-
erally use thermocouple input.
• 4 types of specifications. Can be used in all types of temperature
measurements, from food products, packaging, and finished product,
all the way to electrical engineering.
• 300ms high-speed response (63% response time), ±1% and PV's re-
enactment capabilities, ensuring high-accuracy temperature mea-
surements.
• Compared to thermocouples, this product has the advantage of being
resistant to aging, and can maintain steady real-time control.
Note:For more detailed information, please refer to other ES1B-related materials.
■ ES1-L Series of Non-Contact Temperature Sensors
Able to measure temperatures without contact.
Damage-free, clean, and effective temperature management.
• Comes in two spot diameters: φ3mm and φ8mm.
• Recreation accuracy kept within ±0.5°C, with a response speed of 0.4 sec-
onds (95%), along with high accuracy, realizing fast measurement.
• In addition to the original unit for use in medium temperatures (0 to +500°C),
there are new models for use in medium to low temperatures (-50 to
+500°C) and high temperatures (0 to +1000°C).
• New long distance types enable measuring from distances of 500mm and
1000mm.
• By using a programmer (sold separately), it is possible to monitor tempera-
tures as well as make changes to the rate of emissions, switches between
functions, and range of output.
(The picture shows a programmer installed onto an ES1 unit)
Note 1: At the time of shipment, the ES1-PRO model's range will have to be
changed for 0 to +500°C, -50°C.
2: This value is based on the energy restriction of 90%. The actual item must
be at least 1.5 times larger.
Note:For more detailed information, please refer to other ES1-L-related materials.
■ E52 Series of Temperature Sensors
Providing a diverse array of high-accuracy temperature sensors
• Used as a sensor for temperature controllers.
• Guaranteed that clients will be able to easily select the right model ac-
cording to their temperature, location, and ambient operating conditions.
• Able to provide numerous models of various different categories, cases,
lengths, and terminal shapes.
• Able to provide low-cost made-to-order models, as well as models for
universal use.
Note:For more detailed information, please refer to other E52-related materials.
Shape, visual features
Specifications
(temperature testing range)
Type
10 to 70°C
ES1B
60 to 120°C
115 to 165°C
140 to 260°C
Type
Range of temperature
measurements
Spot dimensions (See note 2.) Type
For use with high
temperatures
0 to +1,000°C
φ35mm (distance of 1000mm) ES1-LW100H
Below
φ40mm (distance of 500mm) ES1-LW50H
For use with medium to
low temperatures
-50 to +500°C (See note 1.)
φ35mm (distance of 1000mm) ES1-LW100
Below
φ40mm (distance of 500mm) ES1-LW50
For use with medium
temperatures
0 to +500°C
φ3mm (distance of 30mm) ES1-LP3
φ8mm (distance of 100mm) ES1-LP10
220
2mm 20mm 40mm 60mm
40 60

Omron E5CZ Specifications

General

Display Type	7-segment digital display
Dimensions	48 x 48 x 78 mm
Number of Control Outputs	1
Ambient Operating Temperature	-10 to 55°C
Control Method	PID control, ON/OFF control
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Alarm Output	1 or 2 (depending on model)
Setting Resolution	0.1 or 1 (depending on input type)
Protection Rating	IP20
Ambient Operating Humidity	25% to 85% RH (non-condensing)
