6 - 31
6 Programless Communications
E5@C Digital Temperature Controllers Communications Manual (H175)
6-4 Connecting to CP-series PLCs
6
6-4-5 Checking Operation

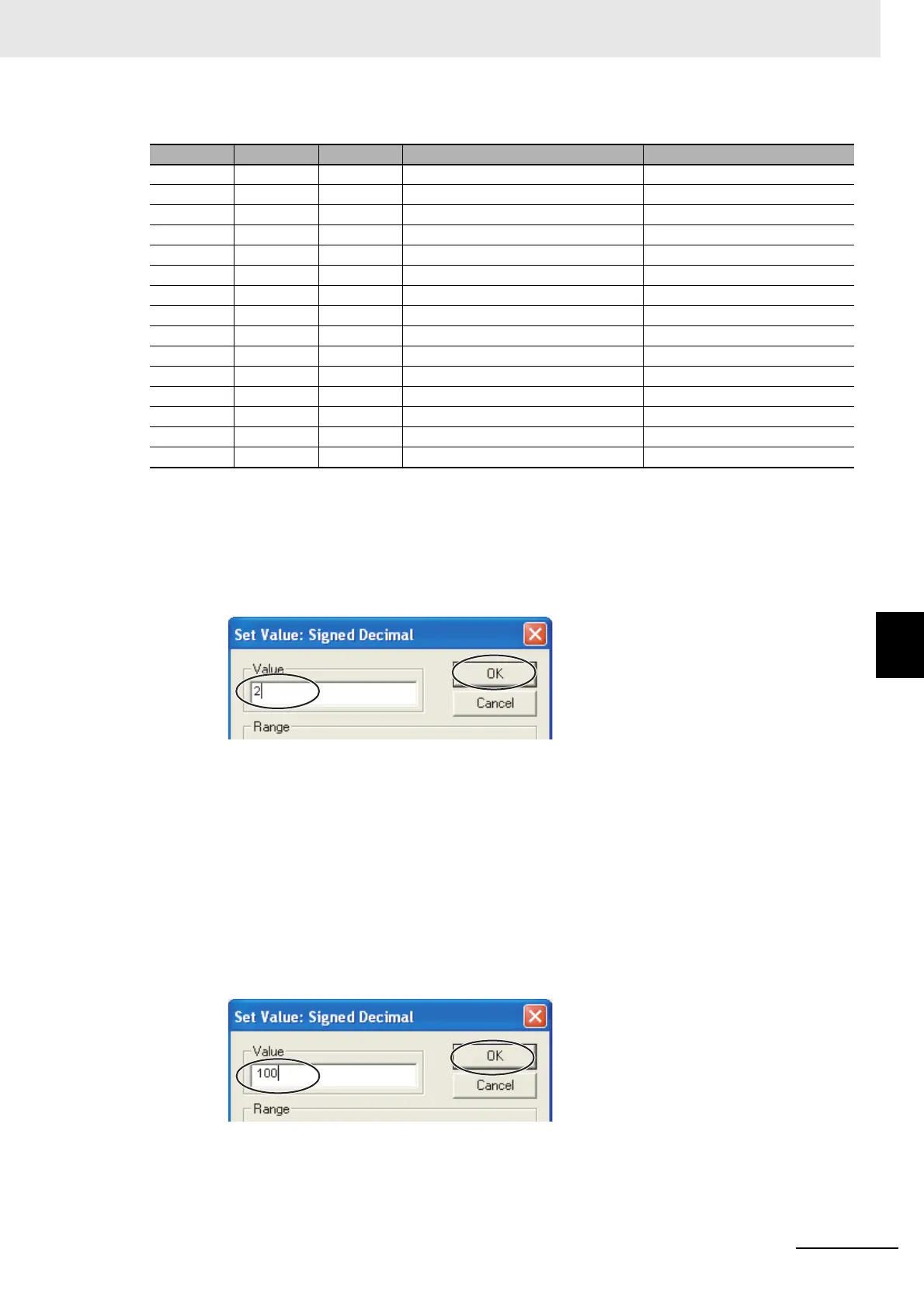

With the default settings, the following parameters are set for the download areas.
(2) We will initialize the download areas with the set values from the E5CC Controllers.
The download areas have not been initialized, so we will initialize them with the set values
from the E5CC Controllers. Double-click D0015 (Request Flag) in the PLC Memory Win-
dow. The following dialog box is displayed. Enter 2 (Initialize Download Areas) and click the
OK Button.
(3) We will confirm that the download areas have been initialized.
When initialization is completed, D0000 (Response Flag) will change to 1 (Normal End) and
D0015 (Request Flag) will automatically change to 1 (Enable Writing). Check the download
area to see if it has been initialized to the values given in the above table.
Confirm this for the No. 1 and No. 2 Controllers as well.
(4) We will change the set point for the No. 0 Controller.
Double-click D0017 (Set Point) in the PLC Memory Window, enter 100 (64 hex) for the
value, and then click the OK Button. Confirm that D0000 (Request Flag) remains at 1
(Enable Writing) and that the SV Display on the No. 0 Controller changes to 100.
Confirm this for the No. 1 and No. 2 Controllers as well.
No.0 No.1 No.2 Parameter Value (E5CC default settings)
D0015 D0045 D0075 Request Flag (fixed) 1 (0001 hex)
D0016 D0046 D0076 Operation Command Code (fixed) 0 (0000 hex)
D0017 D0047 D0077 Set Point 0 (0000 hex)
D0018 D0048 D0078 Proportional Band 80 (0050 hex)
D0019 D0049 D0079 Integral Time 233 (00E9 hex)
D0020 D0050 D0080 Derivative Time 40 (0028 hex)
D0021 D0051 D0081 Alarm Value 1 0 (0000 hex)
D0022 D0052 D0082 Alarm Value Upper Limit 1 0 (0000 hex)
D0023 D0053 D0083 Alarm Value Lower Limit 1 0 (0000 hex)
D0024 D0054 D0084 Alarm Value 2 0 (0000 hex)
D0025 D0055 D0085 Alarm Value Upper Limit 2 0 (0000 hex)
D0026 D0056 D0086 Alarm Value Lower Limit 2 0 (0000 hex)
D0027 D0057 D0087 Heater Burnout Detection 1 0 (0000 hex)
D0028 D0058 D0088 Process Value Input Shift 0 (0000 hex)
D0029 D0059 D0089 SP Ramp Set Value 0 (0000 hex)
To Next Page
