[0..89] in the data type indicates the first and last array numbers in the array variable.
Programless communications for E5C Controllers use 30 words of PLC memory for each
Controller. If the first word is 0, then the last word is 30 x n
−
1.
Here, n is the number of E5C Controllers used in the same programless communications.
Note: For details on array specifications, refer to the NJ/NX-series CPU Unit Software User's Manual (Cat. No.
W501).

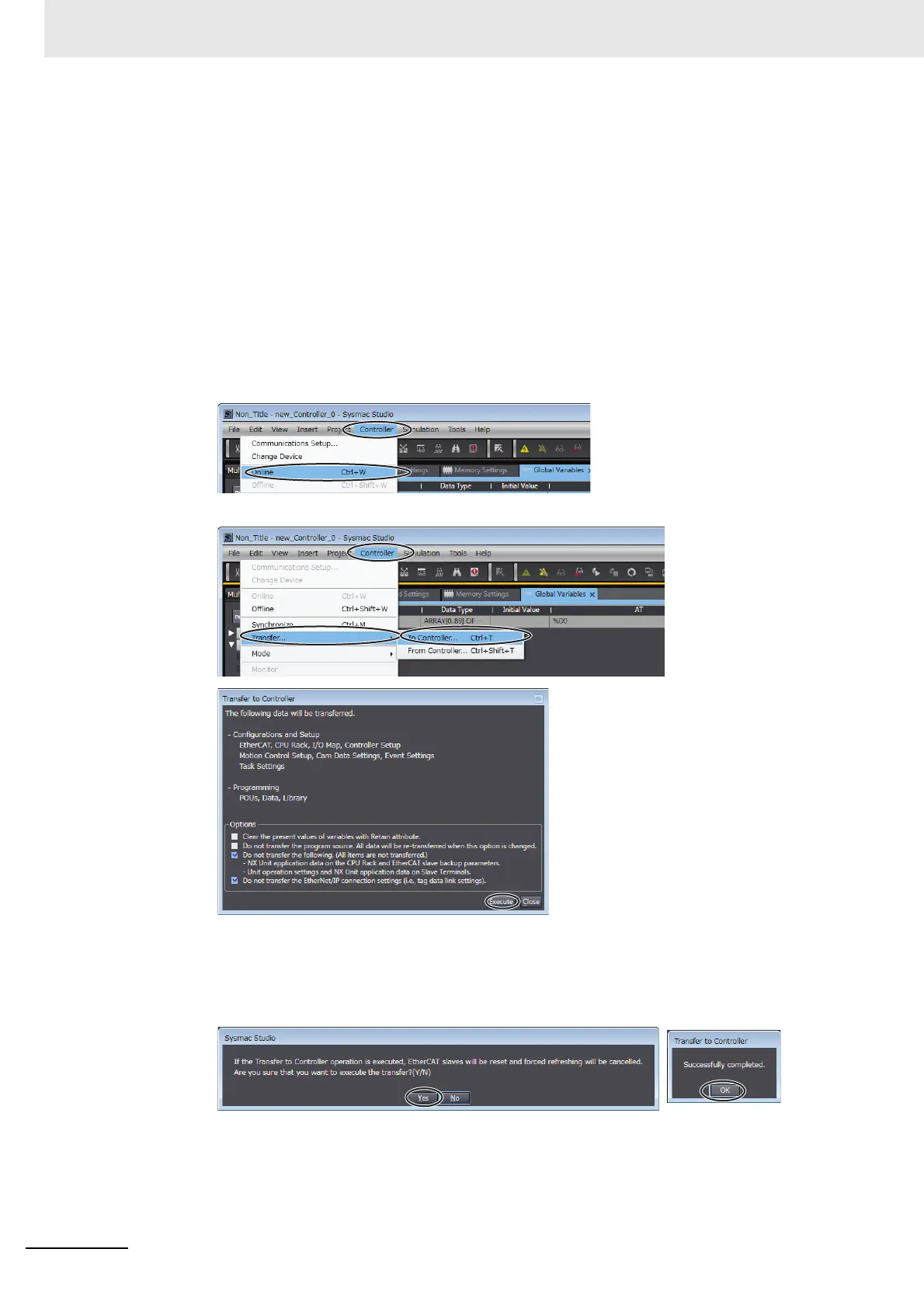

(3) Transfer the project that was created on the Sysmac Studio to the PLC.
Select Controller
−
Online from the menu bar to go online and then select Controller-
Transfer
−
To Controller.
The Transfer to Controller Dialog Box will be displayed. Click the Execute Button to
transfer the project to the Controller.
A message saying that forced status will be canceled will be displayed. Click the Yes
Button.
If a dialog box that says execution ended normally is displayed, the transfer has been
concluded. Click the OK Button.
