6 Programless Communications
6 - 62
E5@C Digital Temperature Controllers Communications Manual (H175)
(3) To make the value easier to check, we will change the values that are displayed to
decimal values.

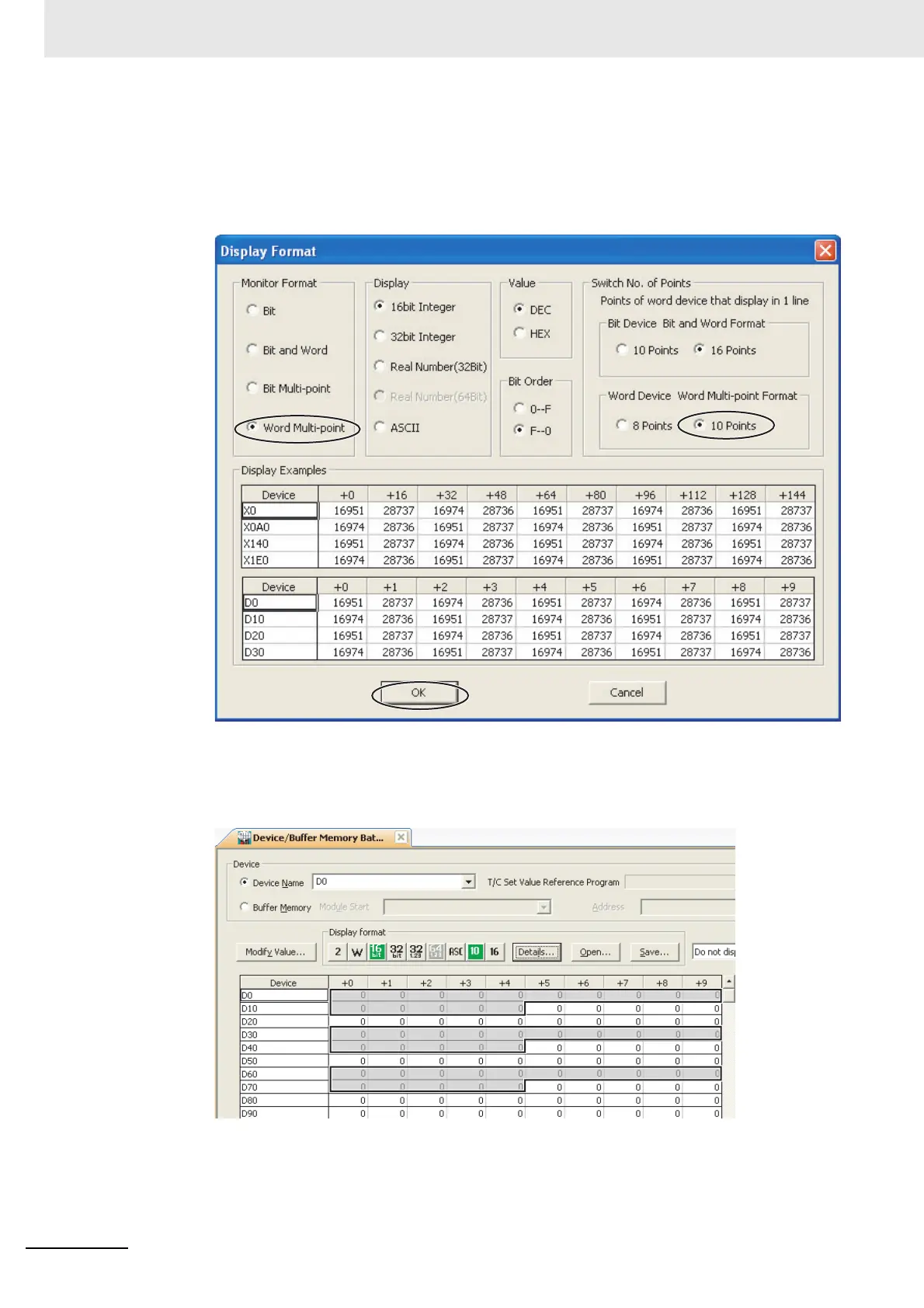

Click the Display Format Button in the above dialog box, select the Word Multi-point
Option in the Monitor Format Area, select the 10 Points Option in the Word Device Word
Multi-point Format Area, and then click the OK Button.
(4) We will check the E5CC monitor values.
The area where monitor values are checked is called the upload area.
D0 to D14 is the upload area for the No. 0 Controller, D30 to D44 is the upload area for the
No. 1 Controller, and D60 to D74 is the upload area for the No. 2 Controller.
No.0
No.1
No.2
