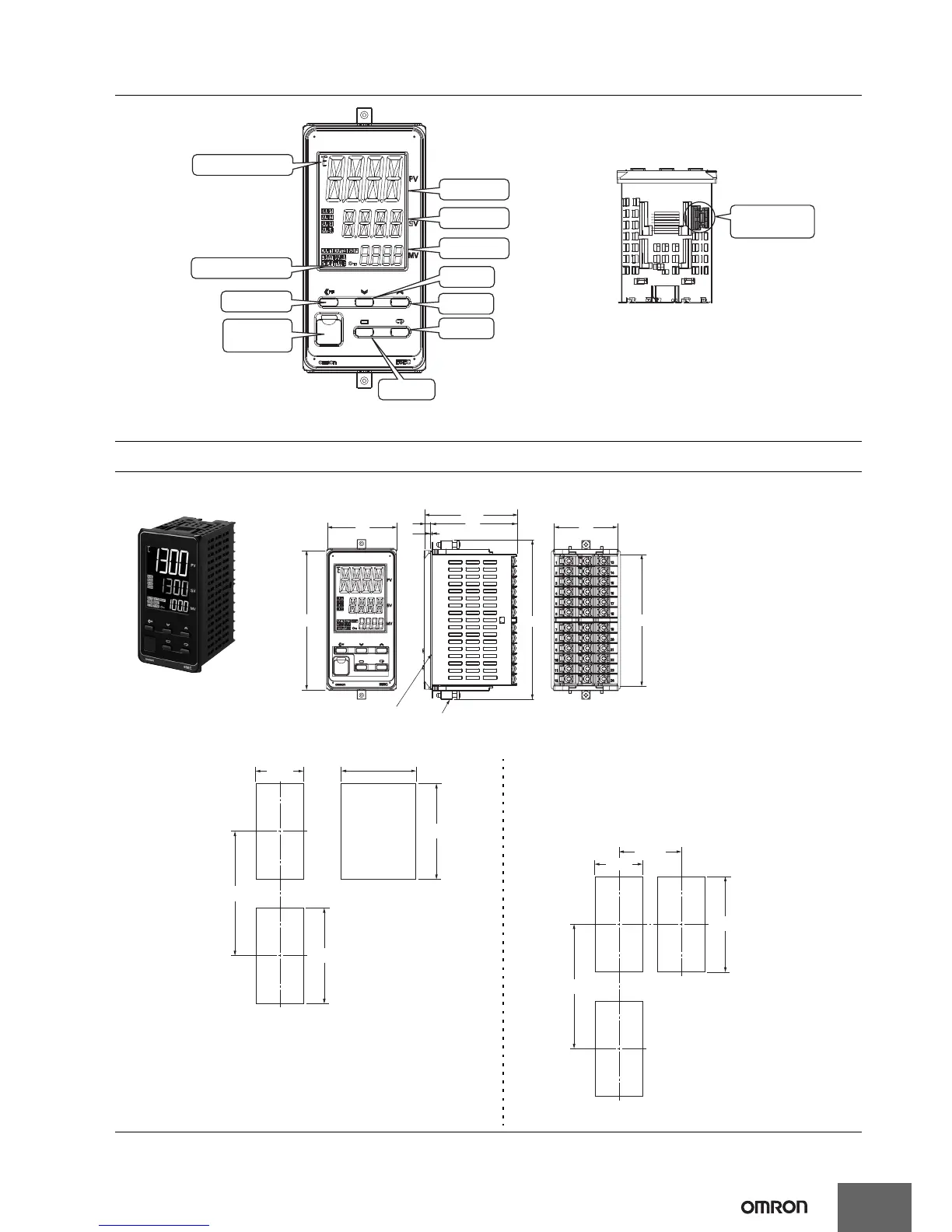

E5EC
10
Nomenclature
Dimensions (Unit: mm)
Controllers
E5EC
Top View
Temperature unit
Operation indicators
Shift (PF) key
No.1 display
No. 2 display
Setup Tool port
on top panel
No. 3 display
Down key
Up key
Mode key
Level key
Front Setup
Tool port
1
4
Mounting Adapter
(Accessory)
Waterproof
Packing (Accessory)
96
48
60
44
91
110
(64)
E5EC
92
-0.8
0
92
+0.8
0
45
+0.6
0
120 min.
(48 × number of units − 2.5)
+1.0
0
Group mounting does not
allow waterproofing.
Mounted Separately
Group Mounted *
Recommended panel thickness is 1 to 8 mm.
Group mounting is not possible in the vertical direction. (Maintain the
specified mounting space between Controllers.)
To mount the Controller so that it is waterproof, insert the waterproof
packing onto the Controller.
When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operating
temperature specified in the specifications.
* Selections for Control Outputs 1 and 2: QQ, QR, RR, or CC
If you also specify 011, 013, or 014 for the option selection and use
group mounting, the ambient temperature must be 45°C or less.
If the ambient temperature is 55°C, maintain the following mounting
spaces between Controllers.
45
-0.6
0
60 min.
120 min.
92
+0.8
0
