Setting Temperature Alarms
4-6
Setting Temperature Alarms
You set this parameter in the Initial Setting Level. The parameter is set to 2 (Upper-limit Alarm) by default.
Step 2 Setting Alarm Parameters
1 Setting the Alarm Type
(When finished, press the (Level) Key for at least 1 second to return to the operation display.)
* If the Controller is equipped with HB and HS alarm detection, the Alarm 1 Type is not displayed for the default settings. To use
alarm 1, set the output assignment to alarm 1.
If required, use the (Mode) Key and the (Up and Down) Keys to repeat steps 3 and 4 and set alarm type numbers fo
r
alt2 (ALT2) (Alarm 2), alt3 (ALT3) (Alarm 3), and alt4 (ALT4) (Alarm 4).(The number of alarms that is supported depends
on the model of Tem
p
erature Controller. Some of the alarm
p
arameters ma
y
not be dis
p
la
y
ed.
)
Press the (Level ) Key
for at least 3 seconds.
Press the (M ode) Key
several times to display
alt1 (ALT1).

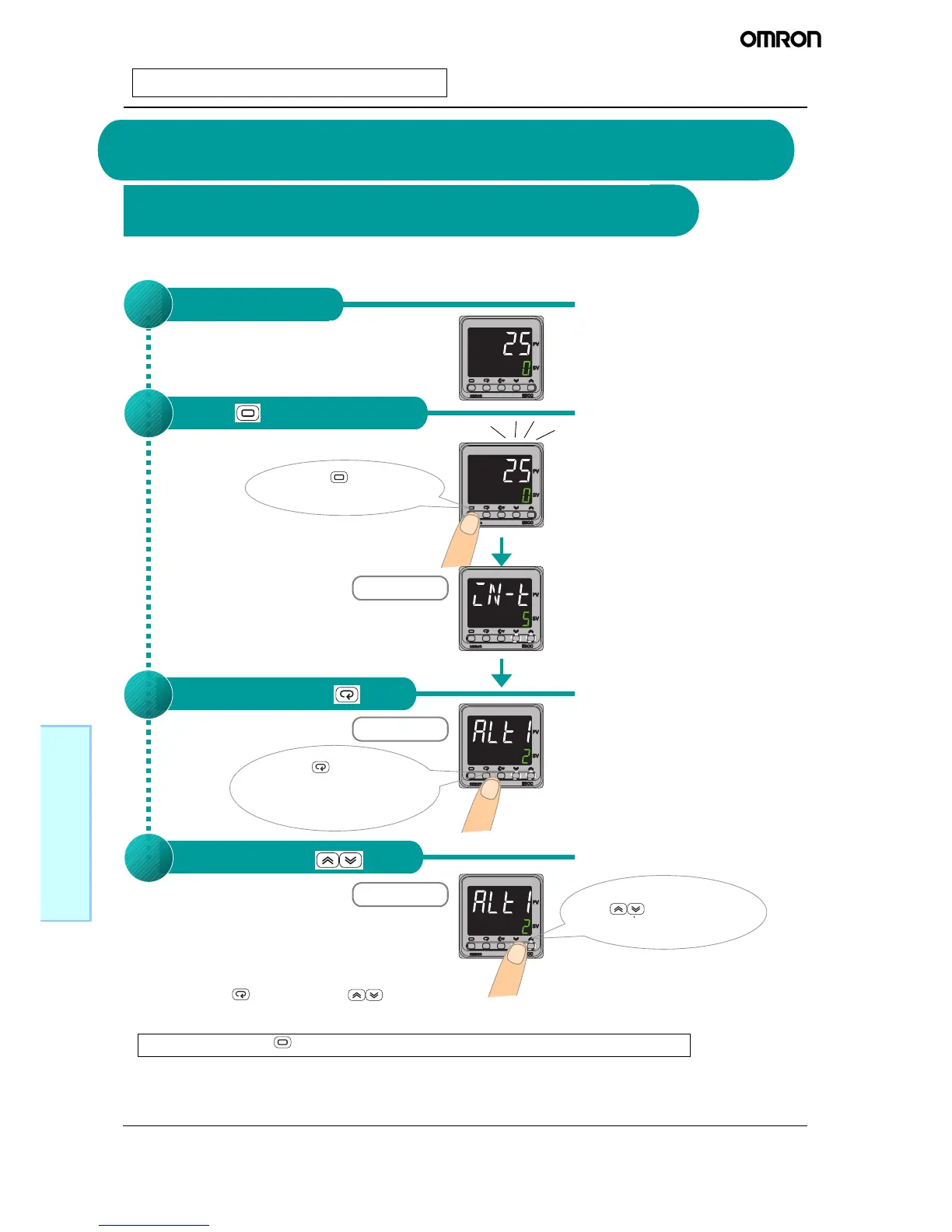

Operating Display
Change the set value with
the (Up and Down)
Keys.
Set the alarm type number that
you selected on page 4-3.
←
alt1
(ALT1): Indicates the Alarm 1
parameter.
←
Default setting is 2 (Upper-limit
Alarm).
Initial Setting Level
←
in-t (IN-T) will be displayed to
show that the Initial Setting Level
has been entered.
Initial Setting Level
Initial Setting Level
←Flashes 3 times.
Change the parameter with the Key .
3
Set the parameter with the Keys.
4
Turn ON the power supply.
1
Press the Key for at least 3 seconds.
2
