Setting Temperature Alarms
4-8

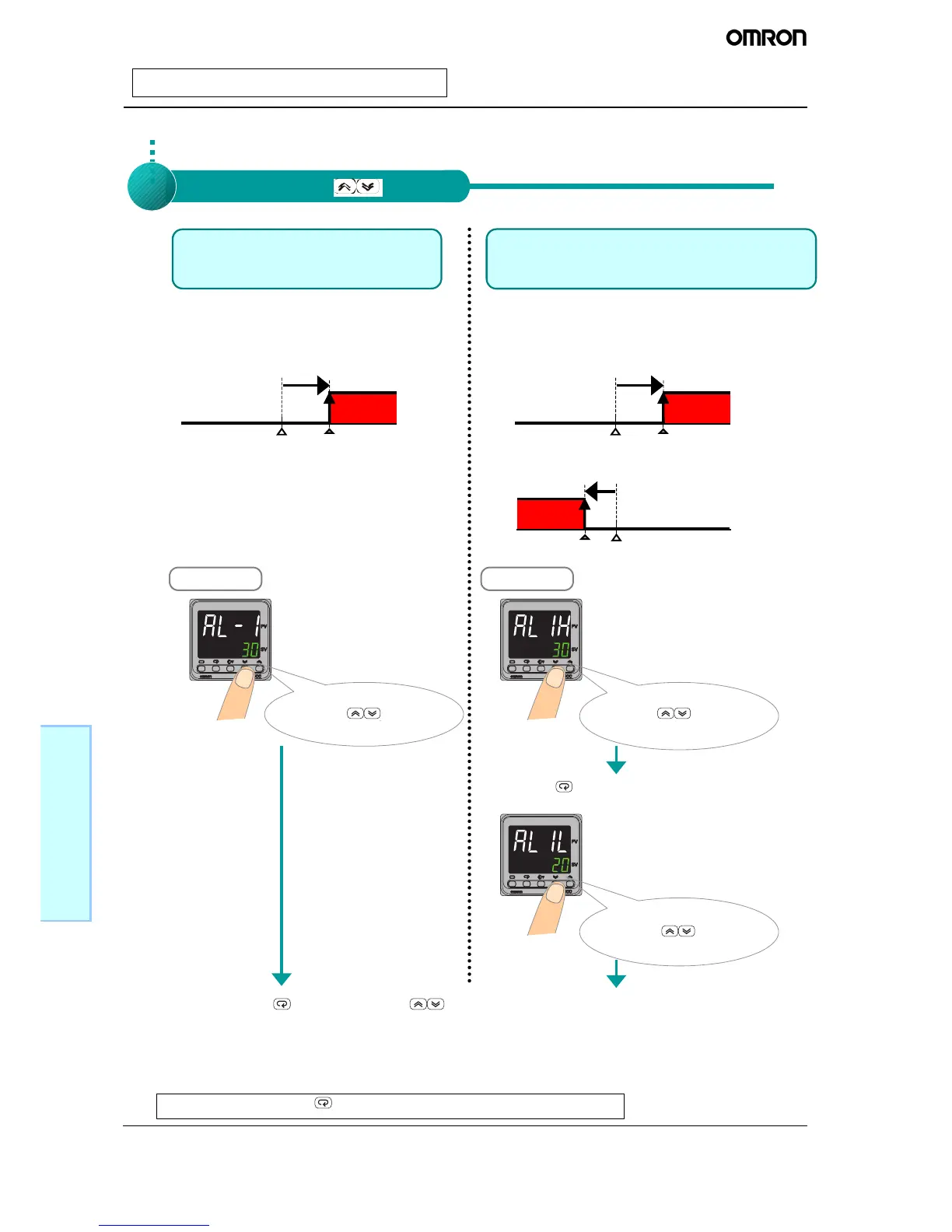

Setting Temperature Alarms
Setting Alarm Type 1, 4, or 5 (Uppe
r
-limit and
Lower-limit Alarms or Upper-limit and Lower-limit
Range Alarms)
Setting Alarm Type 2, 3, 6, 7, 8, 9,10, o
r
11 (Upper-limit Alarms and Lower-limit
A
larms)
A
larm value: 30°C (example)
←
al1h
(AL1H): Alarm Upper Limit 1
A
larm value: 30°C (example)
←al-1
(AL-1): Alarm Value 1
Change the set value
with the ( Up and
Down) Keys.
Operation Level Operation Level
Change the set value
with the (Up and
Down) Keys.
A
larm Value 1: 30, al-1 (AL-1)
Example:
A
larm Value 1 = Upper-limit Alarm: 30°C
A
larm upper limit 1: 30,
al1h
(AL1H)
A
larm ON
ON
SP
A
larm lower limit 1: 20,
al1l
(AL1L)
SP
A
larm ON
ON
Press the (Mode) Key several times to display
al1l
(AL1L).
A
larm value: 20°C (example)
←al1l
(AL1L): Alarm lower limit 1
Change the set value
with the (Up and
Down) Keys.
A
larm ON
ON
SP
Example:
A
larm Upper Limit 1 = 30°C,
A
larm Lower Limit 1 = 20°C
Set the alarm value with the Key s.
3
(When finished, press the (Mode) Key to return to the operation display.)
If required, use the (Mode) Key and the (Up and Down) Keys to repeat steps 2 and 3 and set the alarm
values for
al-2
(AL-2) (Alarm Value 2,
al-3
(AL-3) (Alarm Value 3),
al-4
(AL-4) (Alarm Value 4),
al2h
(AL2H)
(Alarm Upper Limit 2),
al2l
(AL2L) (Alarm Lower Limit 2),
al3h
(AL3H) (Alarm Upper Limit 3),
al3l
(AL3L)
(Alarm Lower Limit 3), al4h (AL4H) (Alarm Upper Limit 4), and al4l (AL4L) (Alarm Lower Limit 4).
(The number of alarms that is supported depends on the model of Temperature Controller. Some of the alarm
parameters may not be displayed.)
