Setting Temperature Alarms
4-13
Setting Temperature Alarms
Alarm ON Delay and Alarm OFF Delay
Alarm ON Delay: You can delay the time when the output actually turns ON from when the alarm status
turns ON.
Alarm OFF Delay: You can delay the time when the output actually turns OFF from when the alarm status
turns OFF.
The value is entered in units of seconds.
* For details, refer to the E5CC/E5EC Digital Temperature Controllers User's Manual
(Cat. No. H174).

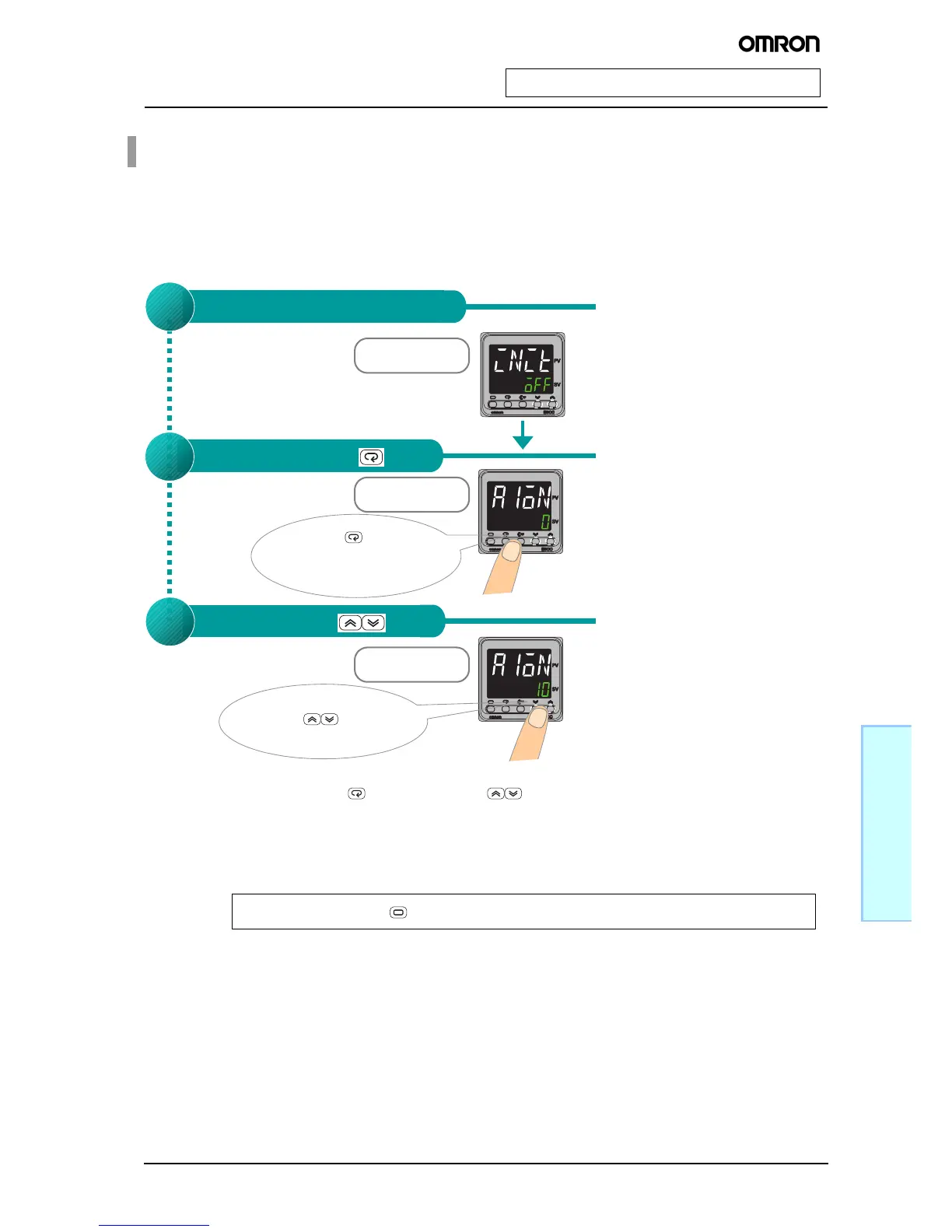

Press the (Mode)
Key several times to
display
a1on
(A1ON).
(When finished, press the (Level) Key for at least 1 second to return to the Initial Setting Level.)
The Alarm OFF Delay parameter follows the Alarm ON Delay parameter.
If required, use the (Mode) Key and the (Up and Down) Keys to repeat steps 2 and 3 and set the
ON/OFF delays for
a2on
(A2ON) (Alarm 2 ON Delay),
a3on
(A3ON) (Alarm 3 ON Delay),
a4on
(A4ON)
(Alarm 4 ON Delay),
a1of
(A1OF) (Alarm 1 OFF Delay),
a2of
(A2OF) (Alarm 2 OFF Delay),
a3of
(A3OF)
(Alarm 3 OFF Delay), and
a4of
(A4OF) (Alarm 4 OFF Delay).
(The number of alarms that is supported depends on the model of Temperature Controller. Some of the alarm
parameters may not be displayed.)
a1on
(A1ON):
←Indicates the Alarm 1 ON Delay parameter.
←
Default setting is 0 (0): Delay disabled.
Advanced Function
Setting Level
←
init
(INIT) will be displayed to
show that the Advanced Function
Setting Level has been entered.
Go to the Advanced Function Setting Level.
1
Change the parameter with the Key .
2
Set the parameter with the Keys.
3
Refer to
Moving to the
