Chapter1 Basic Configuration and Names
F3SJ-E/B
User’s Manual
Overview and Specifications
Basic Configuration and Names

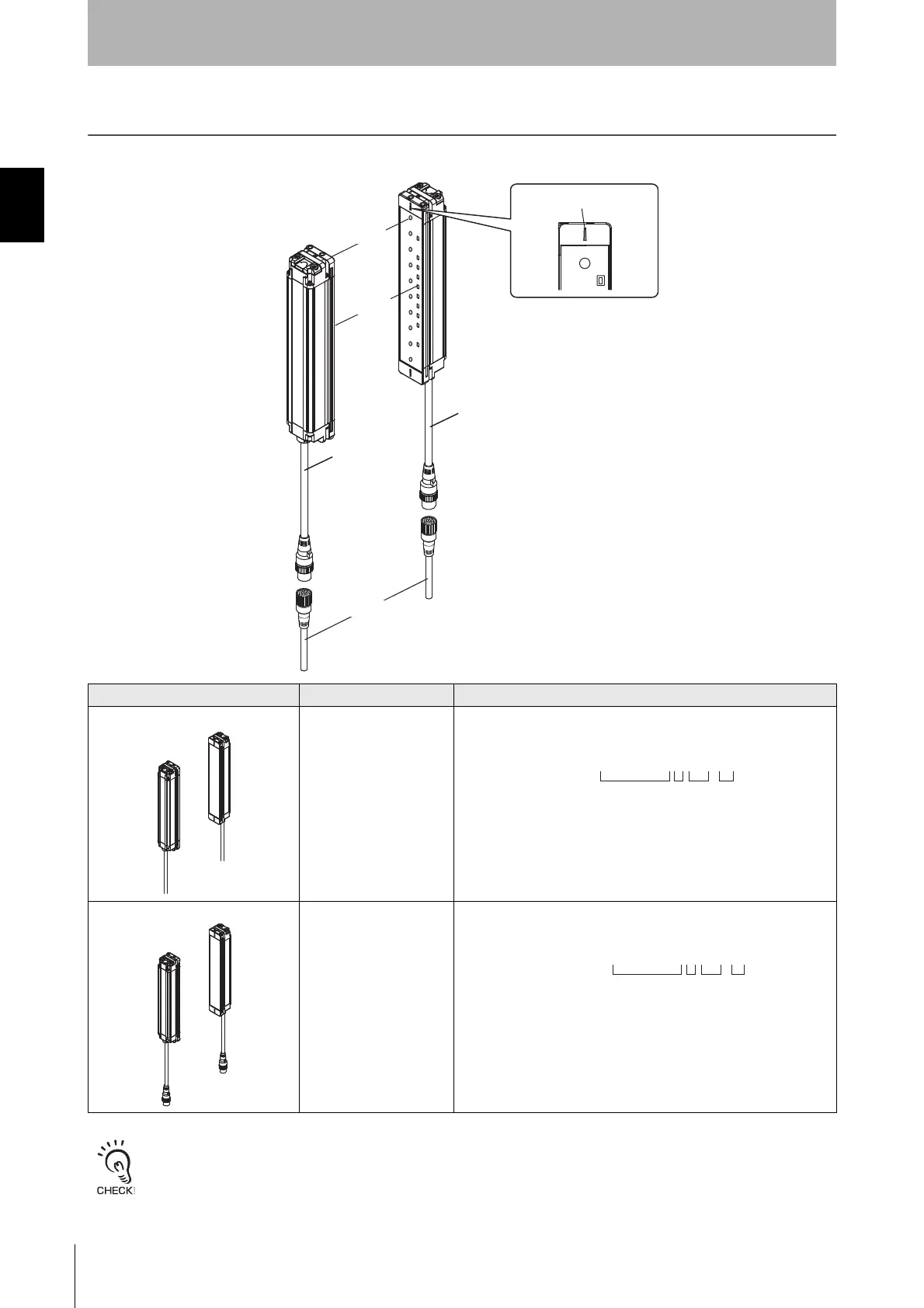

This section describes the system configuration and part names of the F3SJ-E/B. (The picture below is a F3SJ-B)
To distinguish between the emitter and receiver, find the labels attached to the front of the F3SJ-E/B. The label on the emitter
reads "EMITTER" and the label on the receiver reads "RECEIVER".
Component Model Description
Emitter, receiver F3SJ-EP25- Select a type name based on the required protective height.
The model name can be understood as follows:
1: Protective height (mm)
2: Output type (P for PNP output type *1)
3. Detection capability (mm)
4: L for emitter, D for receiver, blank for a set of emitter and receiver.
*1. A hyphen "-" is added instead of "P" for emitter.
Emitter, receiver F3SJ-BP25- Select a type name based on the required protective height.
The model name can be understood as follows:
1: Protective height (mm)
2: Output type (P for PNP output type *1)
3. Detection capability (mm)
4: L for emitter, D for receiver, blank for a set of emitter and receiver.
*1. A hyphen "-" is added instead of "P" for emitter.
Emitter
Receiver
Connection cable
(Black)
Indicator
Beam
Extension cable
Connection
cable (Gray)
Beam center-line mark
F3SJ-E□□□□ P25 -□
1 432
F3SJ-B□□□□ P25 - □
1432
